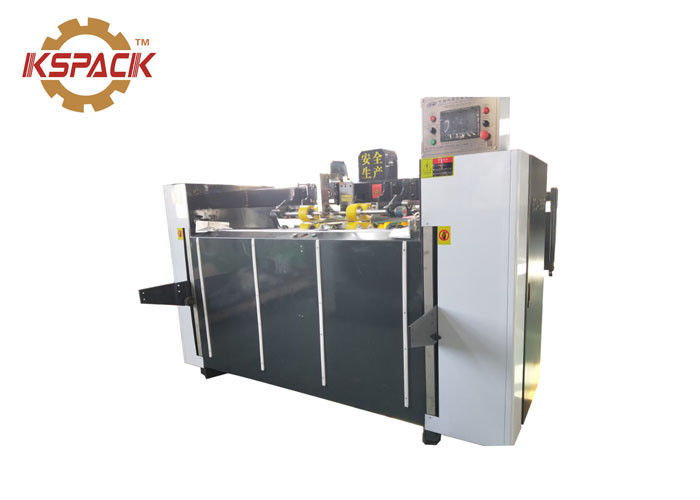

Semi Auto Stitcher Carton Making Machine , Cardboard Box Making Machine

Semi Auto Stitcher Carton Making Machine , Cardboard Box Making Machine

  • High Light

    automatic corrugated box making machine

    ,

    semi automatic stitching machine

  • Name
    Carton Making Machine , Cardboard Box Making Machine
  • Machine Width
    2850mm
  • Speed
    500 Min
  • Feature
    Precision Accurate
  • Power
    7.5 KW
  • Number Od Stitching
    2-99
  • Place of Origin
    China Hebei
  • Brand Name
    Kingsun
  • Certification
    CE
  • Model Number
    BDJ
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wrapped in plastic film and placed in wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    5 Set 30 per days

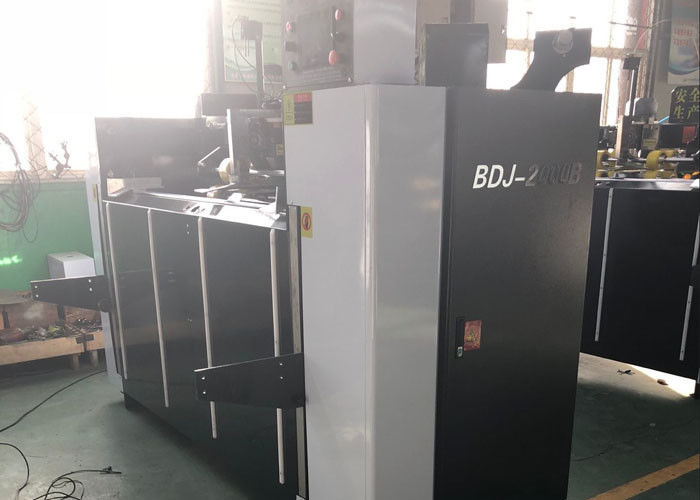

Semi Auto Stitcher Carton Making Machine , Cardboard Box Making Machine

Semi Auto Stitcher Carton Making Machine , Cardboard Box Making Machine



5. The actual process of the nail box: The feeding of the cardboard is carried out by the servo motor, and the nail motor drives the nail head to complete the nail box. The drive shaft driven by the nail head motor and equipped with the clutch and the brake drives the crank mechanism to realize the nail box action under the action of the clutch. When the first nail action is completed, the cardboard back panel picks up the cardboard, and the crank mechanism moves in a stepwise manner. Drive the paper feed roller to rotate, stop after reaching the predetermined nail distance, and immediately perform the second nailing. Troubleshooting

6. The nail head does not nail. The nail head motor does not run. Check if the solenoid valve trips. The nail head clutch has no action. Inside the nail head, remove the nail head side cover and take out the punch to clean, refill after adding lubricating oil. The auto start switch does not start. The single-chip, two-piece selector switch is placed in a single piece, and the nail cannot be automatically stapled when the paper is fed. The upper nail head baffle photoelectric sensor switch does not operate, and adjusts the photoelectric switch sensing distance. The axis of the lower rail is not sensed, causing the paper to be pinned without being fed.

7. Continuous nailing of the nail head The solid state relay is damaged and the DC solid state relay is replaced. Proximity sensor switch failure.
8. Incorrect positioning of the nail head Check the F3 fuse 34-35 (AC). F9 fuse 50-51 (DC). The brake coil resistance wire is 15Ω.
9. The left and right paperboard tooth type paper feeding belt does not run. The screen displays the servo abnormality. Turn off the total power supply in the electrical box for 3 minutes and turn it back on. Check if the toothed belt drive pin slot shaft can be rotated. After troubleshooting, press the screen to indicate the reset button to resume operation. When the servo motor is overcurrent, press the white plastic handle under the 10Hp electromagnetic switch of the control box to recover.
10. Left and right paperboard paper feeding belts continue to run after nailing. The right sideboard counts the photoelectric induction intensity too strong. Adjust the one-side knob on the side of the electric eye, the clockwise strength increases, and the counterclockwise direction weakens.



Machine specification



Max size (A+B)X2 3600mm min length A 250 mm
Min size A+B)X2 740mm Max height D 2000 mm
Max size (C+D+C) 3000mm Min height D 150 mm
Min size (C+D+C) 250mm Max flay size E 40 mm
Min cover size C 50mm Max paper heigh 900 mm
Max cover size C 560 mm Machine width 2850 mm
Max width size B 760 mm Machine weight(T) 2tons
Min width size B 120 mm Machine speed (nail/min) 500
Max length A 1120 mm Nail no. 1-99
