Manual Carton Box Stitching Machine , Corrugated Box Making Machine

Manual Carton Box Stitching Machine , Corrugated Box Making Machine

  • High Light

    semi automatic stitching machine

    ,

    corrugated stitching machine

  • Product Name
    Manual Carton Box Stitching Machine , Corrugated Box Making Machine
  • Feature
    Sealing Is Flat And Level
  • Power
    3KW
  • Degree Of Automation
    Manual
  • Weight
    450kgs
  • Apply For
    Make Corrugated Carton
  • Place of Origin
    China Hebei
  • Brand Name
    Kingsun
  • Certification
    CE
  • Model Number
    DX
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wrapped in plastic film and placed in wooden box
  • Delivery Time
    4-6 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    10 Set 20 per days

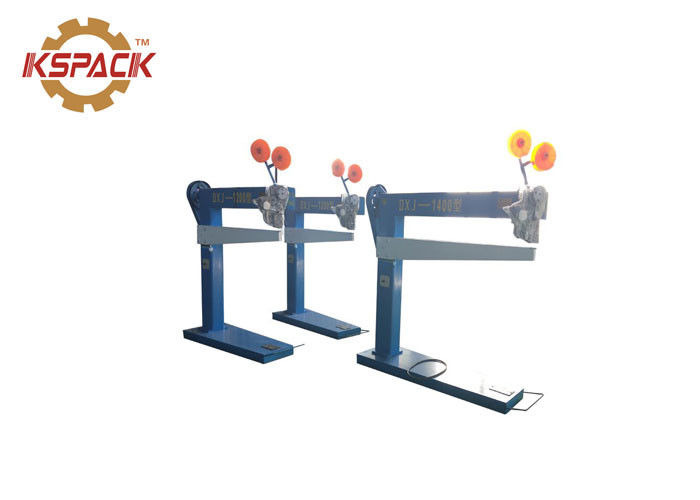

Manual Carton Box Stitching Machine , Corrugated Box Making Machine

Manual Carton Box Stitching Machine , Corrugated Box Making Machine



Production process editor
The process leader and the squad leader can each take a carton and carry out the first inspection of the product separately. When the product is checked, the carton is placed under natural light. The main matters to be noted are as follows:
1. The nails should be fixed, fixed, and must not have the phenomenon of stacking nails, missing nails, stabbing, broken nails, curved nails, no corners, etc.
2. When the nail box is set, the two blanks should be aligned, and the scissors opening should not appear;
3. After the box is folded, the box will be square. The difference between the two diagonals of the top surface of the carton with the integrated size less than or equal to 1000mm shall not exceed 3mm, the comprehensive deviation of the inner diameter of the single corrugated box shall not exceed ±2mm, and the double corrugated box shall be no more than ±4mm. The difference between the two diagonals of the top surface of the carton with a comprehensive size greater than 1000mm shall not exceed 5mm. The integrated deviation of the inner diameter of the single-carton carton shall not exceed ±3mm, and the double corrugated carton shall not exceed ±5mm.
4. The diameter of the box corner hole is not more than 4mm2, and there must be no obvious wrap angle. The outer flap should be no more than 2mm from the seam or overlap.
5, nail box can not appear the phenomenon of inverted nails, yin and yang surface, variety, specifications and two pieces of box blanks must not be wrongly set together.



Main Parameter

Model Stapling Speed Stapling Thickness Stretching Length of the holding Arm Exterior Dimension Weight
DX-600 250 s/min 3/5 ply 600 mm 1100x600x1760 300kg
DX-900 250 s/min 3/5/7 ply 900 mm 1400x600x1760 400kg
DX-1200 250 s/min 3/5/7 ply 1200mm 1700x700x1820 600kg
DX-1400 250 s/min 3/5/7 ply 1400mm 1900x700x1820 800kg
DX-1800 250 s/min 3/5/7 ply 1800mm 2300x700x1820 1000kg
