Light Weight Corrugated Box Die Cutting Machine Cardboard Sheet Cutting
Product Description Product Name:
Die cutting machine (Die Cutting Machine) is also called beer machine, cutting machine, rolling car, box machine, using steel knife (knife mold),Die cutting machine (Die Cutting Machine) is also called beer machine, cutting machine, rolling car, box machine, using steel knife (knife mold), metal mold, steel wire (or steel plate engraved template),
Product Usage:
through The plate is pressed to a certain shape, and the shape is mainly used for paperboard, corrugated board, plastic sheet, leather, cork, self-adhesive, EVA, double-sided tape, electronic, etc.
The die-cutting (full-cut, half-break) is an important equipment for post-press packaging processing.
Features:
1. The indentation plate is made of 201# stainless steel plate.
2. Machine electrical appliances China Chint and imported Schneider (export LG and Siemens)
3. Hand-cranked triangle limit switch, emergency stop switch, hand push rod limit switch, three safety devices to ensure safety.
4. Can be installed inside and outside the movable plate frame, loading plate (standard is the external movable plate frame)
5. The single-chip electromagnetic clutch is sensitive and reliable.
6. Single pressure, continuous pressure cutting and opening delay three functions, the delay range can be adjusted freely.
7. The transmission connecting rod (pull arm) adopts ductile iron, which has high strength and toughness and strong tensile strength.
8. The key parts of the bearing are Harbin Wazhou Bearing.
9. Lubrication system with centralized refueling and manual refueling (optional) can better ensure the smooth flow of the oil circuit and make the maintenance and maintenance of the lubrication system more convenient.
Specificartion :
Model | Max,Rule Area | Workingspeed | Molor | weight | Overall Dimensions(L×W×H) |
ML1100 | 1100×800mm | 20±2(strokes/min) | 5.5kw | 4500kg | 1900×1800×1700mm |
ML1200 | 1200×830mm | 20±2(strokes/min) | 5.5kw | 4800kg | 1900×2000×1700mm |
ML1300 | 1300×920mm | 18±2(strokes/min) | 5.5kw | 6000kg | 2000×2400×1800mm |
ML1400 | 1400×1000mm | 18±2(strokes/min) | 5.5kw | 6500kg | 2000×2450×1900mm |
ML1500 | 1500×1050mm | 18±2(strokes/min) | 5.5kw | 7000kg | 2000×2500×1930mm |
Components and Place of Origin:
Item | Place of Origin |
Copper bush | Tin bronze |
Steel plate | Stainless steel |
Motor | Hengshui |
Appliance | Chnt |
Bearing | Hrb, Wafangdian |
Travel switch(Insurance) | Schneider |

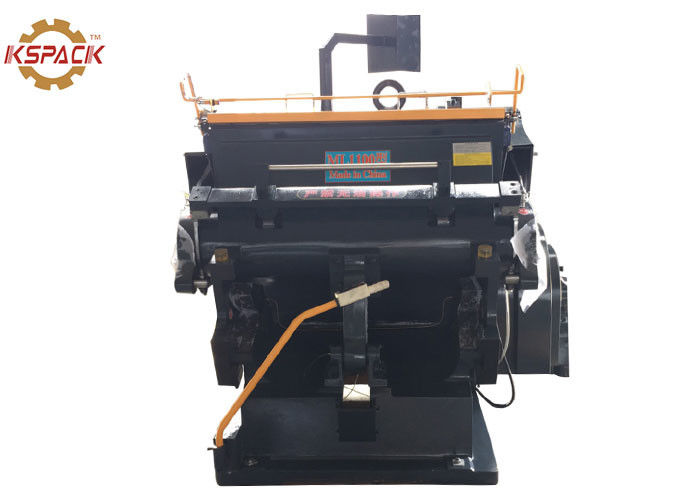

Machine Picture :
