4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer

4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer

  • High Light

    slitter cutter creaser

    ,

    paper scoring machine

  • Machine Name
    4 Bar Rotary Slitter Creaser Machine
  • Feeding Paper Size
    1800 2000 2200 2500
  • Machine In Stock Or Not
    In Stock
  • Machine Colour
    Customzied
  • Machine Function
    Slitter And Creaser
  • Bar Number
    4 Or 6
  • Place of Origin
    Hebei province , China
  • Brand Name
    KS
  • Certification
    CE,ISO
  • Model Number
    1800mm
  • Minimum Order Quantity
    One set
  • Price
    Negotiable
  • Packaging Details
    Machine corvered with plastic sheet , packed in wooden case
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    30sets/Month

4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer

4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer





1. Rotay cutting creasing machine introduction



Simultaneously Cutting and Creasing of the corrugated sheet is done over this machine. Two pairs of shafts have creasing and cutting heads mounted on them which are adjustable.

The sheets are piled on the feed table and fed through the machine by hand.Two side gauges are provided for correct feeding of sheet.The speed is 300' per minute and minimum distance between two dies is 3".

The best machine for slitting & scoring of corrugated sheets.The four pairs are used for slitting & four pairs are used for scoring.The set of four pairs for slitting can be removed easily similarly the set of four pairs of scoring can be removed easily.Hence the machine can also be used either for slitting only or for scoring only.





2.Rotay cutting creasing machine technical parameters



Paper feeding size  Paper thickness  Speed Machine size  Machine weight  Motor power
1750mm 10 180 2200×700×1050 1100 1.1
1950mm 10 180 2400×700×1050 1300 1.1
2150mm 10 180 2600×700×1050 1500 1.5
2450mm 10 180 2900×700×1050 1800 1.5

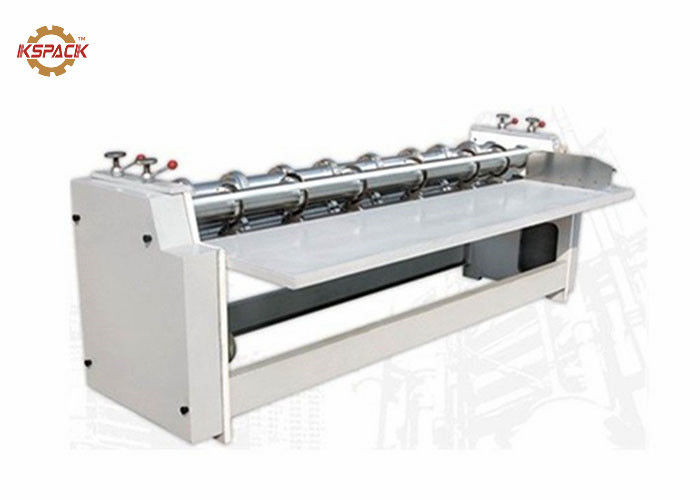

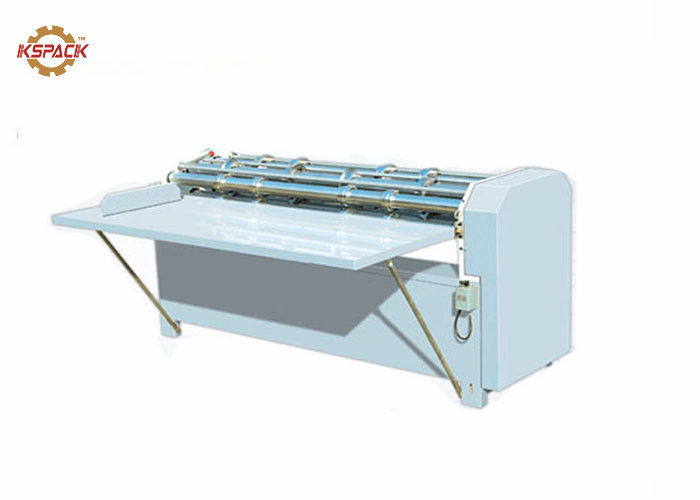

3.Rotary cutting and creasing machine pictures





4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer 0

4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer 1
