1400-2500mm Electric Shaftless Mill Roll Stand Corrugated Board Production Line Corrugation Paper Cardboard Machine

1400-2500mm Electric Shaftless Mill Roll Stand Corrugated Board Production Line Corrugation Paper Cardboard Machine

  • High Light

    5 ply cardboard

    ,

    corrugated cardboard production line

  • Maximum Paper Roll Diameter
    1400mm
  • Max Support Weight
    4 Tons In Total
  • Clamp Head Size
    3 Inch
  • Power
    380V/50HZ
  • .single Side Max Load Weight
    2000KGS
  • Turn Over Motor Power
    1.5KW/Set
  • Place of Origin
    Hebei province , China
  • Brand Name
    KS
  • Certification
    CE,ISO
  • Model Number
    1200-2800mm
  • Minimum Order Quantity
    One set
  • Price
    Negotiable
  • Packaging Details
    Machine corvered with plastic film , packed in wooden case box
  • Delivery Time
    3 days
  • Payment Terms
    L/C, T/T, D/A, D/P, Western Union, MoneyGram

1400-2500mm Electric Shaftless Mill Roll Stand Corrugated Board Production Line Corrugation Paper Cardboard Machine

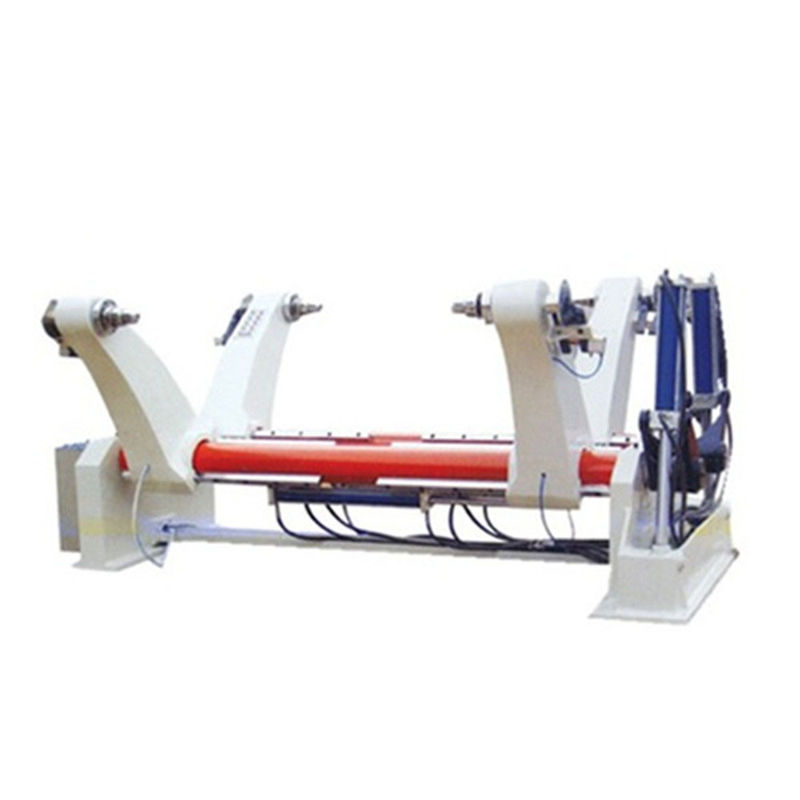

Electric Shaftless Mill Roll Stand For Paper Roll Corrugated Cardboard Machine





1400-2500mm Electric Shaftless Mill Roll Stand Corrugated Board Production Line Corrugation Paper Cardboard Machine 0





1.Electric shafteless mill roll stand structure



1)symmetrical structure can be installed at the same time two bundles of paper tube, can be used for non-stop machine to change the paper

2)electric clamping, release, moving on the left and right

3)brake adjustment using disc plate system.

4) with two-stage automatic expansion of the paper clip, clamp head size 3 inch





2. Electric shaftless mill roll stand characters



1)paper stand active model: Mechanical electrical

2)clamp paper scope : max 1600mm 1800mm , min 100mm

3)clamp diameter : max ¢1400mm

4)single side max load weight : 1500kgs

5)power : 380 volt ,50hz





3.Brand for main purchased parts , raw material and origin



Name of main parts  Brands or place of origin  Material
Main shaft Self made HT200
Arm Self made HT200
Wall board Jiguang produce Q235A
Bearing Ha,wa,luo
Electrical Delixi , chit





4.Mill roll stand machine pictures



1400-2500mm Electric Shaftless Mill Roll Stand Corrugated Board Production Line Corrugation Paper Cardboard Machine 11400-2500mm Electric Shaftless Mill Roll Stand Corrugated Board Production Line Corrugation Paper Cardboard Machine 21400-2500mm Electric Shaftless Mill Roll Stand Corrugated Board Production Line Corrugation Paper Cardboard Machine 3
