2000mm Thin Blade Slitter Scorer Machine / Corrugated Slitter Machine
Product Details
2000mm Thin Blade Slitter Scorer Machine
,box thin blade slitter scorer machine
,box corrugated slitter scorer machine
2000mm Thin Blade Slitter Scorer Machine / corrugated slitter machine
1.Thin blade slitter scorer machine function
Corrugated paperboard slitting and creasing
2.How to adjust slitting size ?
Manual adjust and electric adjust are optional
3.Characters
1)8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
2)Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
3)Grinding part: adopt automatic and manual two kinds pneumatic
grinding type, it could be grinding when working, improve work efficiency.
4) Make all shafts, rollers and wallboard thicker to 38mm for machine size bigger than 3m.
5)All the chain wheels material is #45 steel.
6)Main motor is 7.5kw excitation motor for machine size bigger than 3m.
7) Blade & scorer both move by electric is optional for your choosing.
4.Detailed technical paramaters for 2000mm thin blade slitter machine
| Item | Character |
| Effective width | 1800mm |
| Speed | 140m/min |
| Min paper length | 260mm |
| Min slitting spacing | 120mm |
| Min score spacing | 30mm |
| Machine rough size |
2640*770*1350mm |

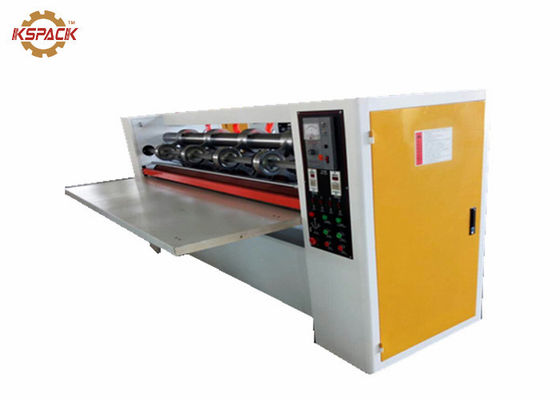

5.2000 Thin blade slitter machine picture
-
