Yellow Sticky Rat Glue Trap Making Machine Stainless Steel
Product Details

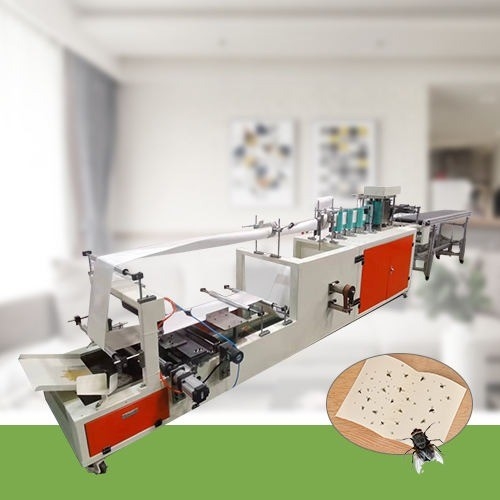

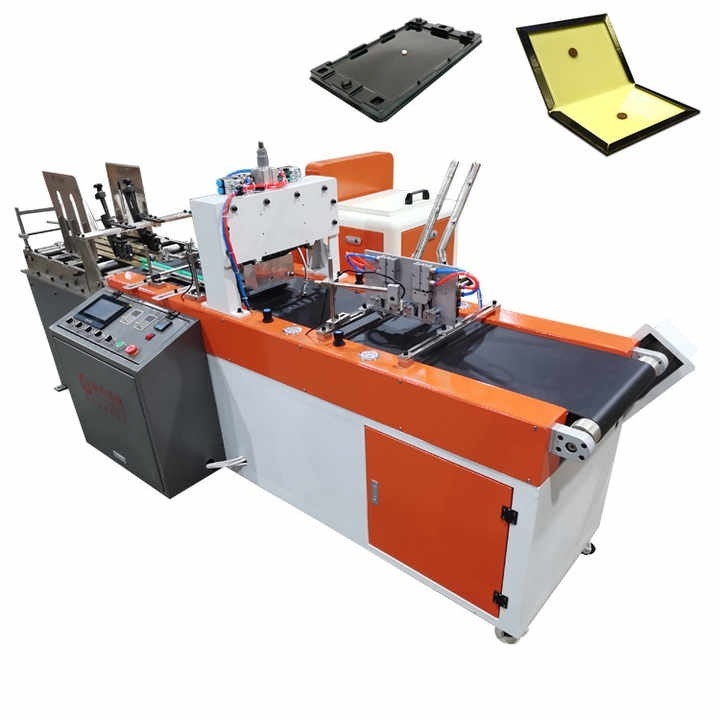

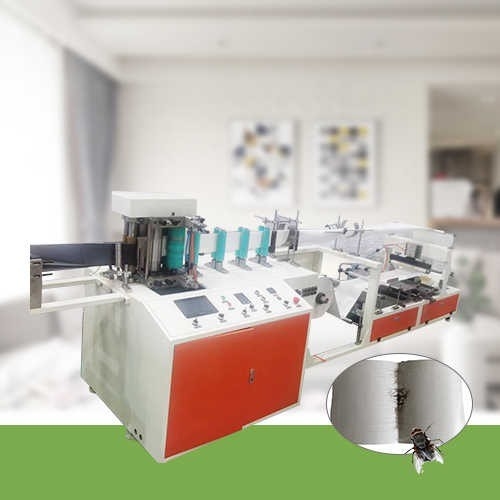

Sticky Rat Glue Trap Making Machine
,Yellow Sticky Rat Glue Trap Making Machine
Yellow Sticky Trap Rat Glue Trap Making Machine With Auto Feed
1.Rat Glue Trap Making Machine Description:
Not only can the versatile hot melt glue machine produce a wide range of sheet products, but it is also capable of making mouse and rat glue traps, fly traps, cockroach house traps, yellow sticky traps, cardboard mouse traps, and plastic mouse traps.
As an established supplier and producer of hot melt glue machines, our basic model is designed to offer exceptional performance at a competitive price, making it an ideal choice for any small to medium sized business.
The device can automatically feed raw materials and can even be adjusted to accommodate different raw material sizes.
The conveyor system, including its various parts and components.
Place the glue device, which includes all necessary components.
The device button is optional.
A bait release device may also be useful to help free hooks from fish.
Also, if you have a folding device, such as a tablet or smart phone, you can use it to open the document.
2.Rat Glue Trap Making Machine Specifications:
| Glue coating machine | |||
| Item | Name | Unit | Qty |
| 1 | PT100 temperature control meter | pcs | 2 |
| 2 | Solid state relay(40A) | pcs | 4 |
| 3 | Fuse and its seat | set | 3 |
| 4 | Aviation plug(big,small) | pair | 1 for each |
| 5 | PT100 temperature sensing head | pcs | 3-4 |
| 6 | Return valve | pcs | 1 |
| 7 | Filter core(big,small) | pcs | 1 for each |
| 8 | Hose connector 45 | pcs | 4 |
| 9 | Sealing ring, gasket (including gear pump oil seal) | several | |
| 10 | Flat sealant | bottle | 1 |
| 11 | Filter | pcs | 1 |
| 12 | Polytetrahydrogen tube | meter | 1 |
| 13 | Copper sheet | pcs | 1 |
| 14 | Various types of screws | pcs | several |
| 15 | Glue gun body: (with thimble 4) | pcs | 1 |
| 16 | Gas joint | pcs | several |
| 17 | air tube | meter | 10 |
| 18 | Barometer (single , double ) | pcs | 1 for each |
| 19 | Plastic hose 1.8meters | pcs | 1 |
| 20 | Various switches | pcs | several |
| 21 | Intermediate relay(24V) | pcs | more than 4 |
| 22 | Various heating tubes | pcs | 2-3 |
| 23 | Chain (several joints ) | pcs | 1 |
| 24 | Photoelectric: ( silver , yellow) | pcs | 2 for each |
| 25 | Intermediate relay(220V) | pcs | more than 3 |
| 26 | Solenoid valve | pcs | 3 |
| 27 | Host belt | pcs | 1 |
| 28 | Hexagon wrench | set | 1 |
| 29 | Training Video CD | pcs | 2 |
| 30 | Hole punch tool | pcs | 1 |
| 31 | Reinforcement of gun seat and rubber tank filter | set | 1 for each |
| 32 | Various springs | pcs | several |
| 33 | Inverter panel | pcs | 1 |
| 34 | Square cylinder | pcs | 2 |
| 35 | Half-moon shape bearing | pcs | 1 |
| Auto feeder part | |||
| 1 | Feeder belt | pcs | 4 |
| 2 | Speed adjust meter | pcs | 1 |
| 3 | paper press wheel | pcs | 4 |
3.Rat Glue Trap Making Machine Feature:
Automatic Feeder is a sophisticated piece of equipment that is used to automatically feed animals and increase their productivity.
Size: 92cmx83cmx111cm
Features: The paper feeding motor uses a 200 vertical motor, the frequency converter adjusts the speed, the paper output is stable, and the speed is adjustable, suitable for fly stickers of various thicknesses, sticky mouse boards, cockroach houses, light boards, etc.
The hot melt glue machine is a versatile tool that is designed to help manufacturers and crafters apply adhesive to various materials with ease.
Size: 96cmx48cmx109cm
Features: The melter motor uses a 750w three-phase motor, and the frequency converter adjusts the speed. 45cc gear pump, the maximum amount of glue can reach 40g, the heating power is 9kw, and the heating speed is about 40 minutes.
The company's main production line is responsible for the assembly of gluing machines, which play an important role in the manufacturing process.
Size: 228cmx96cmx110cm
Features: The main drive motor is a 750w three-phase motor with variable frequency speed regulation, the conveyor belt runs fast and at a stable speed, and the PLC or time relay adjusts various time parameters. High precision sensor that can sense black or other colored products at the same time.
PLC+ touch screen
Cylinder baffle (Anti- tailing device )
Function is anti tailing when glue is applied .
-
