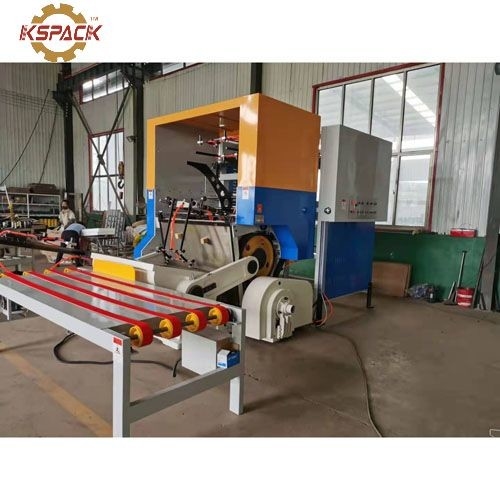

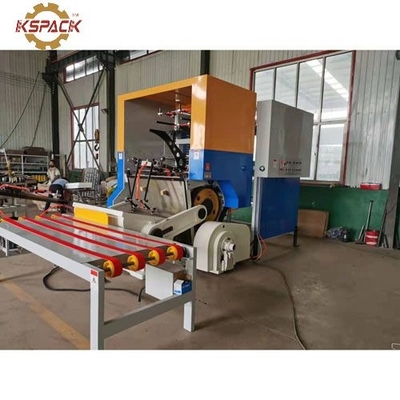

Automatic Corrugated Box Die Cutting Machine Creasing 1300 * 900mm
Product Details
Automatic Corrugated Box Die Cutting Machine
,Creasing Corrugated Box Die Cutting Machine
Automatic Corrugated Box Die Cutting Machine Creasing 1300 * 900mm
This equipment include 6 parts :
Main unit (cassette box machine), paper put section, paper feed section, paper discharge section, paper discharge belt, vacuum air pump, and security guardrail
The paper feeding section is mainly used for stacking cardboard and adjusting the position of the cardboard.
The paper feed section puts the cardboard of the paper feed section into the cassette machine and corrects the position.
The paper discharge section ejects the jammed paperboard onto the conveyor belt. 4．The paper conveyor conveys the paperboard out of the guardrail.
The vacuum pump provides suction for the robot suction nozzle.
The safety fence encloses the machine's work area to prevent people from entering the hazardous area.
1.Functions and Characteristics
1) Equip with four insurance parts and four functions. The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.
2) The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable.
3) Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil supplying,.
4) Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.
2. Components and Place of Origin
| Item | Place of Origin |
| Copper bush | Tin bronze |
| Steel plate | Stainless steel |
| Motor | Hengshui |
| Appliance | Chnt |
| Bearing | Hrb, Wafangdian |
| Travel switch(Insurance) | Schneider |
Machine parameter:
| Model | Max,Rule Area | Workingspeed | Molor | weight | Overall Dimensions(L×W×H) |
| PYQ401C | 750×520mm | 28±2(strokes/min) | 2.2kw | 2000kg | 1260×1350×1280mm |
| PYQ203D | 930×670mm | 23±2[strokes/min] | 4.0kw | 3000kg | 1670×1670×1630mm |
| ML1100 | 1100×800mm | 20±2(strokes/min) | 5.5kw | 4500kg | 1900×1800×1700mm |
| ML1200 | 1200×830mm | 20±2(strokes/min) | 5.5kw | 4800kg | 1900×2000×1780mm |
| ML1300 | 1300×920mm | 18±2(strokes/min) | 5.5kw | 5500kg | 2000×2400×1900mm |
| ML1400 | 1400×1000mm | 18±2(strokes/min) | 5.5kw | 6000kg | 2400*2000*1800mm |
| ML1500 | 1500×1050mm | 18±2(strokes/min) | 5.5kw | 7000kg | 2000×2500×1930mm |
| ML1600 | 1600×1250mm | 16±2(strokes/min) | 11kw | 11000kg | 2170×2560×2230mm |
| ML1800 | 1800×1300mm | 16±2(strokes/min) | 15kw | 13500kg | 2240×2800×2130mm |
We are a professional supplier of corrugated machinery,including automatic high speed flex printer slot die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. We have rich experience and expertise in the field of corrugated machinery, and we can provide customized solutions for different customers’ needs. We are committed to delivering high quality products and services with competitive prices and timely delivery.
After Sales Service
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
