Semi Automatic 4T Flute Laminator Machine Single Operator 7KW
Product Details

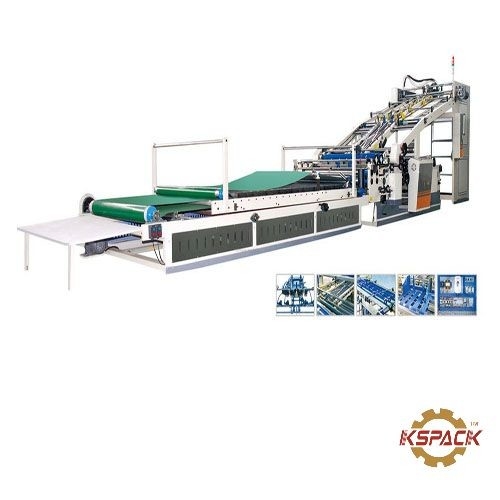

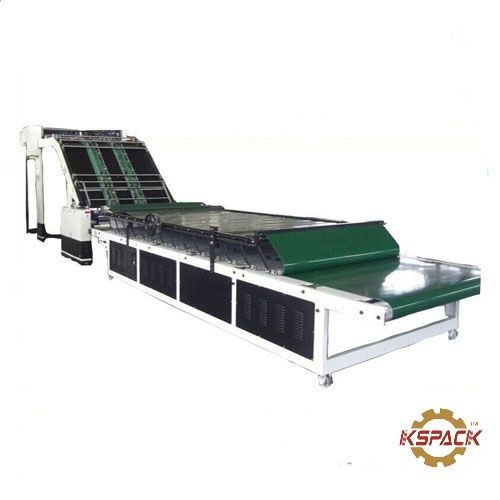

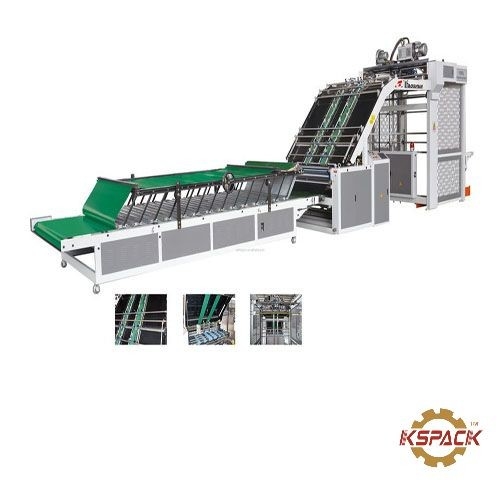

Semi Automatic 4T Flute Laminator Machine
,7KW Flute Laminator Machine
Semi-Automatic 4T Flute Laminator Machine Single Operator 7KW
1.Flute Laminator Machine Description:
This device uses the automatic paper feeding system of backing paper feeding paper, the top paper uses uninterrupted continuous paper scale paper, left and right position adjustment can calibrate the whole process, the unique front-end positioning method to ensure that the backing paper will never move forward. Simple operation and convenient maintenance are realized.
2.Flute Laminator Machine Spetification:
| Model | JGFM-B1300Q-2 | JGFM-B1450Q-2 | JGFM-B1600Q-2 |
| Max. Sheet size(mm) | 1300×1300 | 1450×1300 | 1600×1300 |
| Min.Sheet size(mm) | 320×450 | 320×450 | 320×450 |
| Speed(m/min) | 0-90 | 0-90 | 0-90 |
| Total electric consumption(KW) | 7 | 7 | 7 |
| Overall Dimensions(mm) | 8800×2200×1700 | 8800×2350×1700 | 8800×2500×1700 |
| Weight(T) | 3.5 | 4 | 4.5 |
3.Flute Laminator Machine Feature Advantage:
Turnup bridge plate is convenient for cleaning, discontinuous wate-circulating systemensures washing clean.
Automatic feeding for bottom sheet, manual feeding for top sheet (feeding from side fortop sheet is optional).
Flexible front register, bottom sheet is not exceeding the top sheet, and it's adjustable forthe front-and-rear lamination between bottom sheet and top sheet.
Bottom sheet can be paperboard more than 350gsm,A/B/C/D/E/F corrugated cardboard.Lntelligemt control and compacted energy-saving and controlling play from the stack of paper.
Using high-precision plastic block device, sace glue.
4.Our Company:
We are a professional supplier of corrugated carton machinery, products include high speed printing press slot cutting machine, convex production line, rotary cutter, carton press and double layer convex production line. With the development, we have built our own factory. It is now being expanded to test equipment and other packaging machinery. Our products use advanced technology and high quality materials to meet the needs of high speed, high precision and high efficiency of cam products. There are sales network and professional service team to provide customer satisfaction solutions.
5.FAQ:
Q:Are you the trader or manufacturer?
A:We are the manufacturer with export qualification
Q:Do you make OEM?
A:Yes.here can do
Q:Where are your factory located in?
A:We are in Dongguang town,Cangzhou city,Hebei,china
Q:What is your business process?
A:Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
6.Our Service:
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
Our KSPACK Group :
Hebei Jinguang Packing Machine Co.,Ltd
Cangzhou Kingsun IMP and EXP Co.,Ltd
Dongguang BaiYing Carton Machinery Co.,Ltd
-
