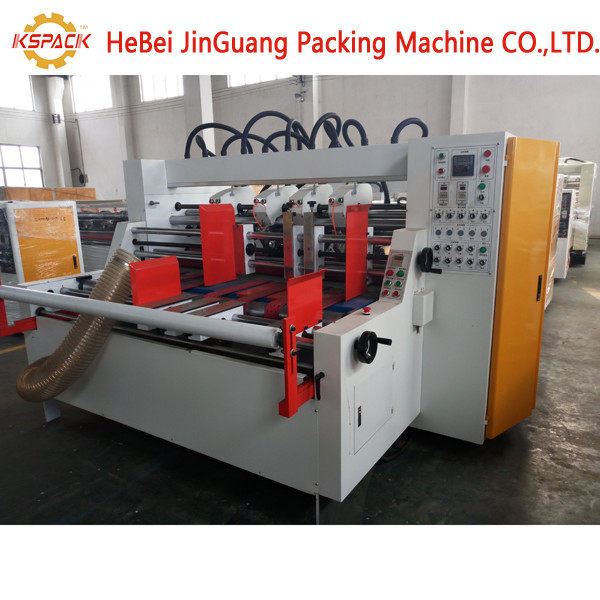

Auto Paper Feeder Thin Blade Slitter Scorer Machine 8KW Electrically

Auto Paper Feeder Thin Blade Slitter Scorer Machine 8KW Electrically

A corrugated cardboard thin blade machine is a device that can cut corrugated cardboard into different sizes and shapes with high precision and efficiency. The machine uses thin blades that vibrate at a high frequency to slice through the cardboard without crushing or damaging it. The machine can also adjust the cutting depth and angle according to the requirements of the product.

The advantages of using a corrugated cardboard thin blade machine are:

It can reduce the waste of raw materials and save costs.

It can improve the quality and appearance of the product and enhance its competitiveness in the market.

It can increase the production efficiency and reduce the labor intensity of the workers.

It can avoid the dust and noise pollution caused by traditional cutting methods.

The main components of a corrugated cardboard thin blade machine are:

A feeding unit that transports the cardboard to the cutting unit.

A cutting unit that consists of several thin blades mounted on a rotating shaft.

A transmission unit that drives the rotation and vibration of the blades.

A control unit that regulates the speed, position, depth and angle of the blades.

A collecting unit that collects the cut pieces and disposes of the scraps.

The working principle of a corrugated cardboard thin blade machine is:

The cardboard is fed into the cutting unit by the feeding unit.

The blades rotate and vibrate at a high frequency and cut through the cardboard along the preset lines.

The cut pieces are separated from the scraps and collected by the collecting unit.

The scraps are discharged from the machine or recycled for further use.

A corrugated cardboard thin blade machine is a useful and innovative device that can improve the production and quality of corrugated cardboard products. It is widely used in various industries such as packaging, printing, furniture, construction, etc. It is also an environmentally friendly and energy-saving equipment that can reduce waste and pollution.

Thin Blade Slitter Scorer Machine Function and Features:

• Can set the qty. of paperboard,automatic stop the feeding after finishing.

• Auto suction feeding,assured the safety of workers and decreased the working load.

• Suitable to a large scale paperboard maching.

• Adopt high quality tungsten steel blade,sharp and long work-life,slice more tidy,non-pressing and non-burr.

• Slitting blade electrically adjusted,work with dual smooth shaft guide way,pheumatic locking,assured the stable operation,fast order changing.

• Scorer electrically adjusted,the above scorer pneumatic lifting,dual smooth shaft guide way,pneumatic locking,fast order changing.

• The scorer part adopt above&lower button for rectification,can make the above and lower scorers align center.

• Adopt domestic or imported name-brand electric element.

• The former and latter rubber rollers minished the processable paper length.It can also slitting without scoring.

Thin Blade Slitter Scorer Machine Technical parameters:

Our Company

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.

FAQ

After Sales Service

Free Shipping Replacement Spare You just need to pay the freight

One To One Video Teaching We Provide Operation & Maintenance cd

-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
Our KSPACK Group :
Hebei Jinguang Packing Machine Co.,Ltd
Cangzhou Kingsun IMP and EXP Co.,Ltd
Dongguang BaiYing Carton Machinery Co.,Ltd
