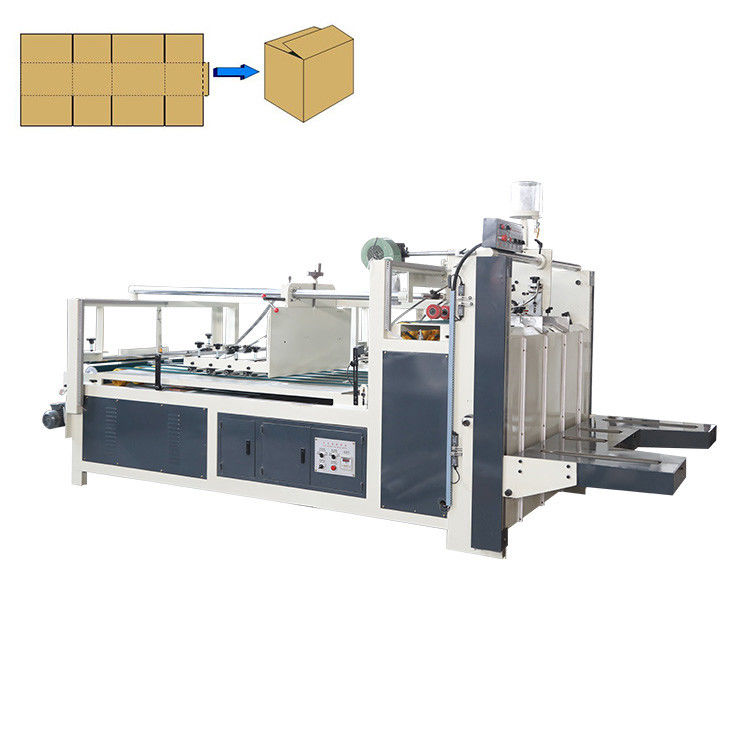

60pcs/Min Carton Box Folder Gluer Machine For Cardboard

60pcs/Min Carton Box Folder Gluer Machine For Cardboard

  • High Light

    carton box folder gluer machine

    ,

    cardboard box folder gluer machine

    ,

    60pcs/min box folder gluer machine

  • Size
    2000-2800mm
  • Speed
    50-60pcs/min
  • Box Type
    Standard Box
  • Feed Type
    Manual
  • Place of Origin
    china,hebei
  • Brand Name
    kspack
  • Certification
    iso,ce
  • Model Number
    zxj
  • Minimum Order Quantity
    1set
  • Price
    5000-6800usd/set
  • Packaging Details
    film,container,wooden case
  • Delivery Time
    10-20days after getting deposit
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10sets/month

60pcs/Min Carton Box Folder Gluer Machine For Cardboard



Box stapler machine gluer machine/automatic carton folding gluing folder for cardboard



structure:

1.ZXJ type semi-automatic sticky box machine ,mechanical speed 40 pcs /min . Using digital counter , auto stacker and side output.

2.The paper lift can be automatically or foot finish lift, convenient and quick improve production efficiency.

3.

glue head use us import high quality aluminum material , rubber wheel choose Japan stainless steel, glue tank use the seamles steel drums given glue by nature pressure .

After Coating adhesive and dryer by the high pressure fan , then correction by electronic induction automatic output to middle pressure part, set the number of finished product packaging required, automatic horizontal output.



Automatic square department . correction the flap not in line after glue coat becuase of the press paper error . Automatic counting, accumulation and tidy.

4 sepear part

1. )The machine choose 380 V, power 3KW, energy saving, high efficiency.

2.) Choose imported Italian belt loop seamless docking belt.

3. )Bearing choose the international famous brand TR bearing.

4.) Spiral wire rod, ball screw, nut are chosen for 45 # steel, high quality and quenching process processing.

5.) Copper set (ZQSn6-6-3) with, drops of oil lubrication, wear-resisting durable.

6.) The whole machine are chosen for china's motor's, low noise, environmental protection, energy saving and low energy consumption.







NAME PARAMETER PARAMETER

最大尺寸L

Maximum size L

2600mm 2800mm

最小尺寸L

Minimal size L

340mm 600mm

最大尺寸H

Maximum size H

1515mm 1515mm

最小尺寸H

Minimal sizeH

240mm 260mm

给纸高度

Give paper height

900mm 900mm

电机功率

Motor power

2.2KW 3KW

机械速度

Mechanical speed

40m/min 40m/min

机械重量

Mechanical weight

1650 1750kg
