Product Details:
|
| Machine Name: | Corrugated Paperboard Partition Assembly Machine | Drive Type: | Electric |
|---|---|---|---|
| Power: | 5.5KW | Lengthways Sheets Length:: | 450mm |
| Function: | Carton Papers Cross Inserting | ||
| High Light: | corrugated partition assembly machine,paperboard partition assembly machine,5.5KW partition assembly machine |
||
1)Structure and character for corrugated paperboard partition assembly machine
1.Lengthways and horizonrtal sheets do decussation inserting
2.Automatic inserting each kinds clapboard and block
3.Double-position output type , double efficacy
4.Penumatic system and electric system to make sure the advancement of device control
5.Supply enough gas with compressed air accumulartor , stable pressure .Eacg steam equipment get gas from the main pipe, independent control , no mutual influence
6.PLC man-machine interface , easy to operate
2)Size table for corrugated paperboard partition assembly machine
| Name | Unit | Data |
| Horizontal inserting width: A | mm | 120~900 |
| Lengthways sheets length: B | mm | 210~450 |
| Clapboard Height: C | mm | 85~300 |
| Lengthways clapboard distance: D | mm | 20~400 |
| Horizontal clapboard distance: E | mm | 45-850 |
| Lengthways sheets No. | pcs | 1-6 |
| Horizontal clapboard No. | pcs | 1-21 |
| Carton inserting mouth width:F | mm | > >board thickness |
| Carton thickness:G | mm | 1.5~8mm |
Above size table is for 450-3L , we can also do 450-2L , 450-4L , 600-2L , 600-3L 600-4L
just send us the finished product you want , we will recommend you stuibale machine

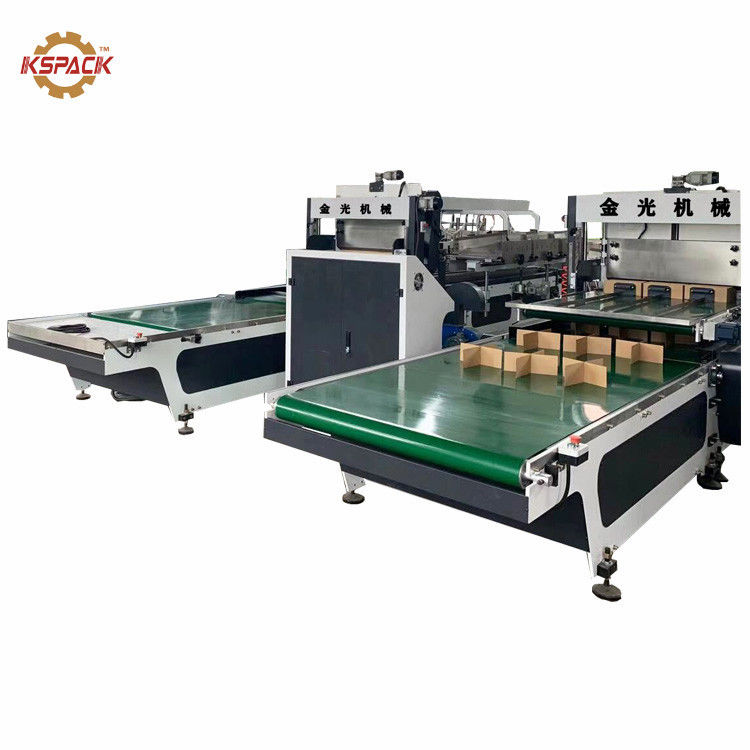

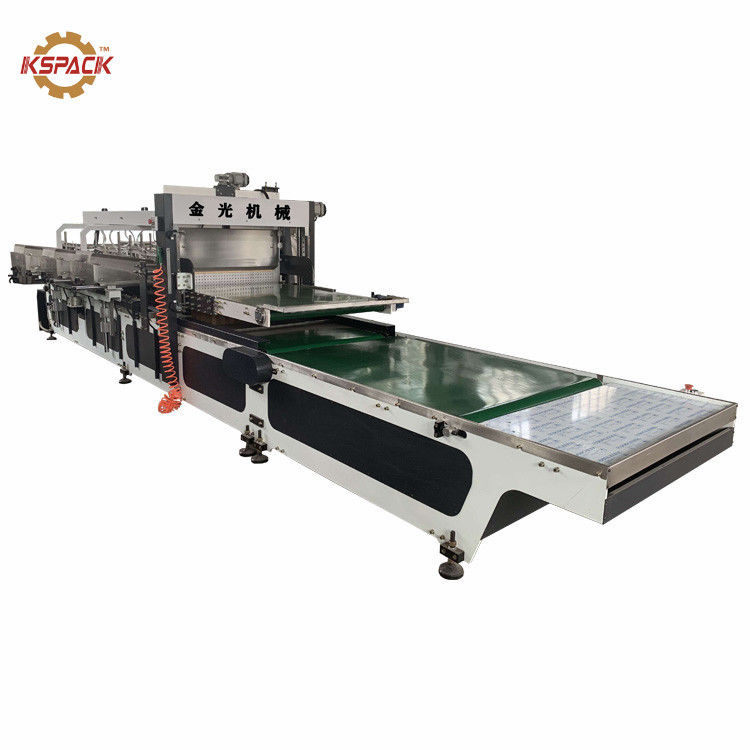

3)corrugated paperboard partition assembly machine pictures
