Fully Auto Stapler PLC 12kw Carton Box Stitching Machine

Fully Auto Stapler PLC 12kw Carton Box Stitching Machine

  • High Light

    plc carton box stitching machine

    ,

    4mm Carton Box Stitching Machine

    ,

    12kw Carton Box Stitching Machine

  • Product Name
    Automatic Stitching Machine
  • Machine Function
    Carton Box Stitching
  • Machine Weight
    4 Tons
  • Machine Control
    PLC
  • Machine Keywords
    Fully Automatic Stitching Machine
  • Machine Drive Type
    Electric Type
  • Place of Origin
    China Hebei
  • Brand Name
    Kingsun
  • Certification
    CE, ISO
  • Model Number
    KS-3000
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wrapped in plastic film and placed in wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    5 Set 30 per days

Fully Auto Stapler PLC 12kw Carton Box Stitching Machine

Fully auto stapler carton box stitching machine



1) Features and features for automatic carton box stitching machine


1. This machine is fully controlled by computer to automatically adjust the order, which is easy and simple to operate; it can store 1000 nails;
4, the nail head power is servo motor, mechanical speed: 800-1000 nails / minute;
5. The paper feeding part adopts the vacuum suction leading edge belt feeding paper to ensure that the carton is not skewed; the leading edge belt of the machine can adjust the belt height and increase the service life separately;
6. When the paper is fed, there is a side flapping device to make the paper feeding neat and smooth;
13. At the end of the machine, there is automatic counting and stacking code quantitative output.
14. When the machine is skewed during normal operation, it will stop automatically.



2)Main structrure



1. Paper feeding department:


The paper feeding part adopts frequency conversion speed regulation, vacuum suction belt leading edge, equipped with side flapping device to ensure that the paper feeding is not skewed;


2, the folding section:


The biggest feature of the folding section is the installation of the rolling line breaking wheel, the secondary rolling line, and the original rolling line is re-rolled again. This makes the carton more beautiful after being folded up. The machine will have a shaping device in front of the folding box, and the folded carton will be shaped again in front of the nail box to ensure that the carton out of the nail box has no scissors opening.


3. Correction Department:
The calibration part is calibrated by the servo motor, and then corrected and then fed into the nail box by the timing belt to ensure that the box is not scissored;



4, nail box department:


The nail box head is made of special material, which is wear-resistant and not easy to damage. The nail speed can reach 800 nails per minute. The biggest feature of this machine is that the machine head is directly driven by servo motor, and the speed is stable and accurate. It is possible to realize the operation of implementing single nails, double nails, reinforcing nails, and head and tail nails (intermediate sticking) to the carton. The nail line uses two sets of 30 kg automatic feeding line at one time, which reduces the time for changing the wire.


5. Counting the stacking unit:


Press the number set on the computer, automatically count, automatically correct, and automatically send out.



Machine head



Stitching speed 800nail/min
Min paperboard thickness 4mm
Max paperboard thickness 12mm
U Shape nail inside width 12mm
Nail spec 17#(2.0x0.75)
Nail inclination 45
Min nail distance 30mm
Power 12kw

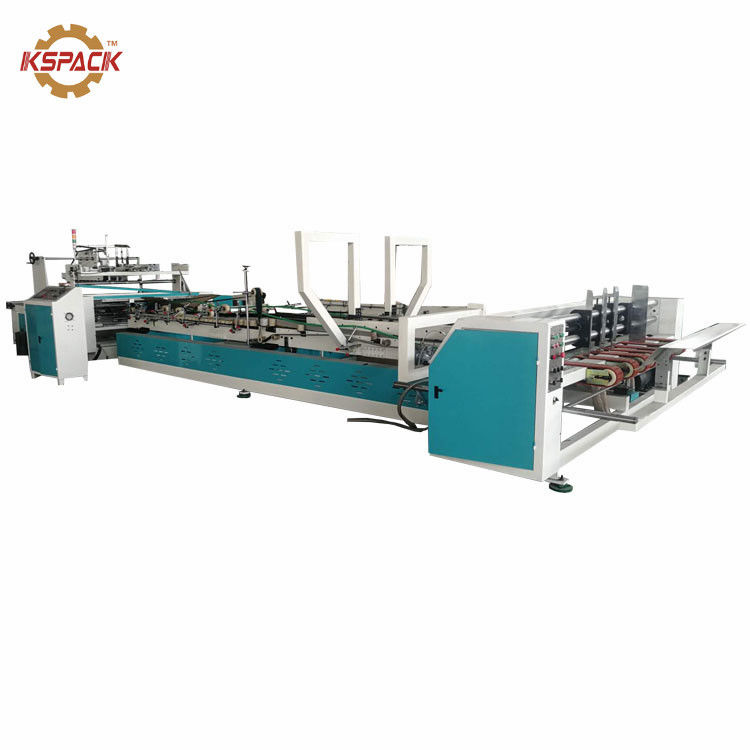

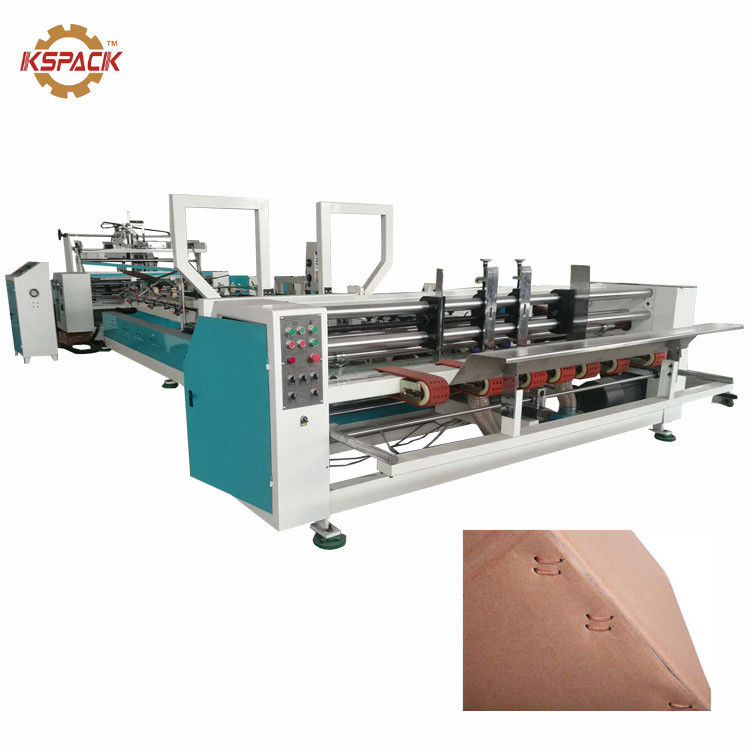

3)Machine pictures



Fully Auto Stapler PLC 12kw Carton Box Stitching Machine 0
