|Colors:||3 Colors（1-6 Optional）||Speed:||180-250pcs/min|
|Slotter Knives Adjust:||Electric Adjust （manual Adjust Optional）||Container:||One 40 Feet Container|
|Printing Anilox Roller:||Stainless Steel（Ceramic And Doctor Blade Optional）||Delivery Time:||45-60days|
|Voltage:||380V/50HZ 3phase||Warranty:||1 Year|
|Printing Material:||Corrugated Cardboard||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|

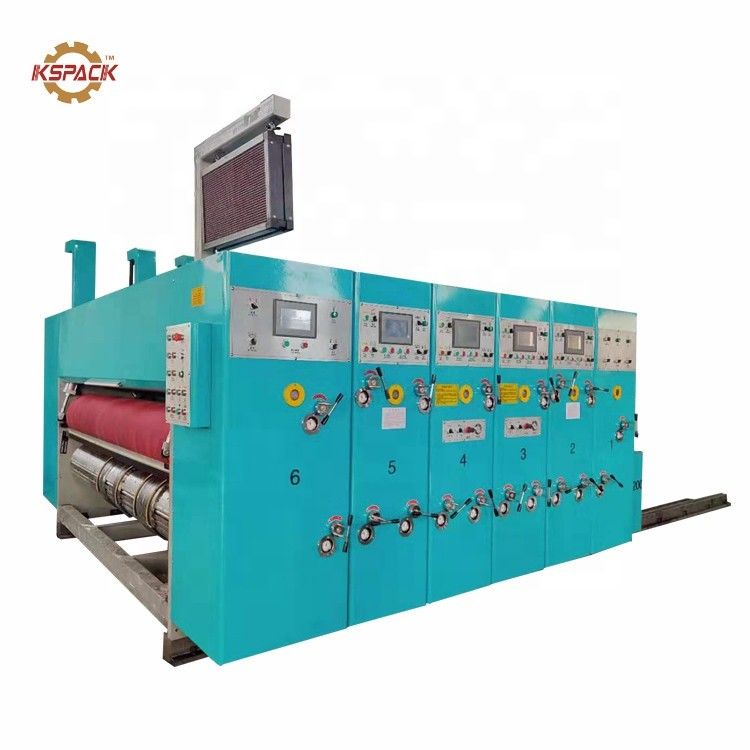

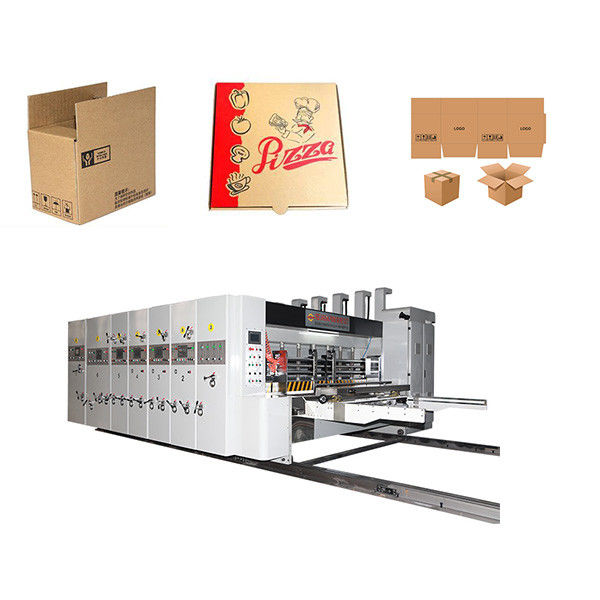

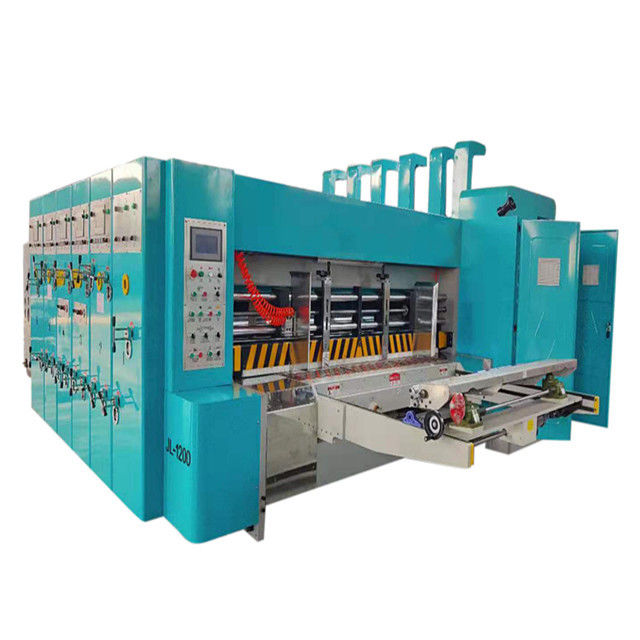

1200*1800 Die Printing Machine,
3 Colors Die Printing Machine,
250pcs/min Die Printing Machine
GSYM—￠408(1200) x 1800-2800mm
|MODEL||GSYM Series High Speed Printer Diecutter|
|PRINTER COLOR||3 COLOR|
|MNACHINE SIZE||WALL BOARD TO WALL BOARD SIZE 2600MM|
|MACHINE DESIGN SPEED||DESIGN SPEED 200PCS /MIN|
|MACHINE WALL BOARD SIZE (mm)||60|
|GERA THICKNESS (mm)||50|
|MAX PASSING PAPER SIZE (mm)||1200 X2400MM|
|MIN PAPER PASSING SIZE (mm)||400X860MM|
|SKIP PAEER SIZE (mm)||1200X2400|
|MAX PRINT SIZE (mm)||1200 X 2200MM|
|THINKCNESS OF THE PLATE (mm)||3.2---7.2|
|BOARD THICKNESS (mm)||3---12|
|BOARD PRINT ACCURATE (mm)||PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5|
|生产时功率(km)||25 accoding different color|
|总功率(km)||43 according different color|
Remark : according the customer requirment ,can choose 1-6 color ,slotter
Diecutter , holes attachment all is optional
【1】 electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.
【2】 drive shaft with friction clutch, to avoid misuse and damage to the machine.
【3】 pneumatic interlock device.
【4】 The host motor starts the protection device. (The machine is not locked, the host can not start running)
2 . leading edge roller type feeding system
【1】 suction auxiliary feeding paper fan 7.5KW, according to the different bending conditions of cardboard, air volume adjustment,
To ensure smooth paper supply. Use the brush to remove the cardboard surface
Dust, scraps of paper and other debris, improve the printing quality.
【2】slotted with a chain control switch, control emergency stop paper.
【3】 The paper lift and down adopt the air cylinder ,the action quickly, effort.
【4】 the use of Shandong "Komori" front edge roller feed system, simple operation, high precision. The amount of extension can be adjusted, raw
Strong adaptability. Speed transmission more stable, suitable for warping, thin cardboard transmission, the effect is obvious.
【5】 side baffle, rear box position by the screw electric adjustment; front baffle upper and lower gap position manually synchronized adjustment.
【6】 skip feeding device (according to the need to choose continued or sheet feeding).
【7】 PLC control, man-machine interface, menu storage, printing plate correction, printing speed, quantity, time and the Department operation
3 Feed roller
【1】 up roller use the soft rubber shaft ,so when feed the board ensure the not borken the board Diameter 132mm, wearing rubber shaft , make the blance correct ,keep the paper feed steay and accurate.
【2】 The lower feed roller with embossing roller diameter ¢ 175 mm, seamless steel pipe, embossed hard chrome plating.
【3】 feeding roller cross slider-type dial dial manually adjust the adjustment range of 0 ~ 12 mm. Adjustment does not affect the gear gap, to ensure transmission accuracy.
【4】 hand-type quick clearance fine-tuning self-locking device.
4 automatic zero device
【1】 The paper feed section, the printing section, and the slotted part are automatically reset to zero.
【2】General carton use automatic zero device, try to print two can be adjusted to the correct position to reduce cardboard waste.
1. printing roll (plate roll)
【2】high-quality steel surface grinding, axial reference scale, hard chrome plating.
【3】to do the balance correction, smooth operation, to adapt to high-speed operation.
【4】 ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.
【5】 full version of hanging slot, for 10 mm hanging version of the article.
【6】 loading and unloading printing plate, foot switch electric control is reversing.
【7】 printing roller axial manual traverse, the maximum movement of 10mm.
2. printing press roll
【1】 diameter of ¢ 155 mm.
【2】 the use of high-quality seamless steel pipe surface grinding, dynamic balance correction, smooth operation, hard chrome plating
【3】 printing pressure roller cross slider-type dial to manually adjust the adjustment range of 0 to 12 mm. Adjustment does not affect Gear clearance to ensure transmission accuracy.
3 Feed the upper and lower rollers
【1】 on the roll: diameter ¢ 86 mm seamless steel pipe, with three paper feed ring.
【2】 the next roll: diameter ¢ 155 mm seamless steel pipe, surface grinding, hard chrome plated
【3】 feeding roller cross slider-type dial dial manually adjust the adjustment range of 0 ~ 12 mm. Adjustment does not affect teeth Wheel clearance, to ensure transmission accuracy.
4. steel anilox roller rubber roller set ink system
【1】diameter of ¢ 213.7 mm.
【2】steel surface grinding, repression reticulate, hard chrome plating.
【3】 alance correction, smooth operation.
【4】mesh number is 180,200,220,250 lines / inch selection.( Option ceramic roller 300line/inch )
【5】 with the feed system pneumatic automatic lifting device. (When feed paper pr the anilox roller is lowered and touched with print plate ,stop feed paper
anilox roll is up and the plate is separated)
【6】 Anilox roller with wedge-type clutch, even ink, easy to clean ink.
【7】 rubber roller diameter ¢ 186 mm.(option the doctor blade system)
【8】 steel pipe surface wrapped with wear-resistant rubber, and do the balance correction.
【9】 rubber in the special high grinding, ink transfer effect is good. Quick clearance fine-tuning self-locking device to ensure uniform ink. The amount of uniform ink system, the conversion effect is good, to extend the life of rubber roller.
5 .phase adjustment mechanism
【1】planetary gear structure.
【2】printing phase using computered plc control impurt the digital .(Run, stop can be adjusted), manually adjust the horizontal position, adjust the distance of 10 mm.
【3】 in the printing process after the printing plate automatically reset the system.
6 ink circulation
【1】 Pneumatic diaphragm pump, ink stability, easy operation and maintenance.
【2】 ink filter, filter impurities.
7 printing phase fixing device
【1】 cylinder brake mechanism.
【2】 When the machine to separate or adjust the phase, the brake mechanism to limit the machine rotation, to maintain the original gear position fixed point.
【1】single shaft sructure
【2】Slotter phase adjustable by computer control 360 degree adjust ( run stop can be adjusted ) ,machine can stock order , manual adjust horizontal 20mm
【3】Up slot knive shaft diameter 176mm , knives seat diameter 465mm
【4】Crease rolelr shaft diameter 110mm , crease wheel diameter 180mm
【5】Bottom knives shaft diameter 156 ,knives diameter 280mm
【6】The knives and crease wheel same time movement electrical control ( input the box size ,automatic adjust)
【7】Slot knives 7mm use ally steel material after heattreatment ,grinding , teeth model knvies ,
【8】Can make the holes attachment ( optional )

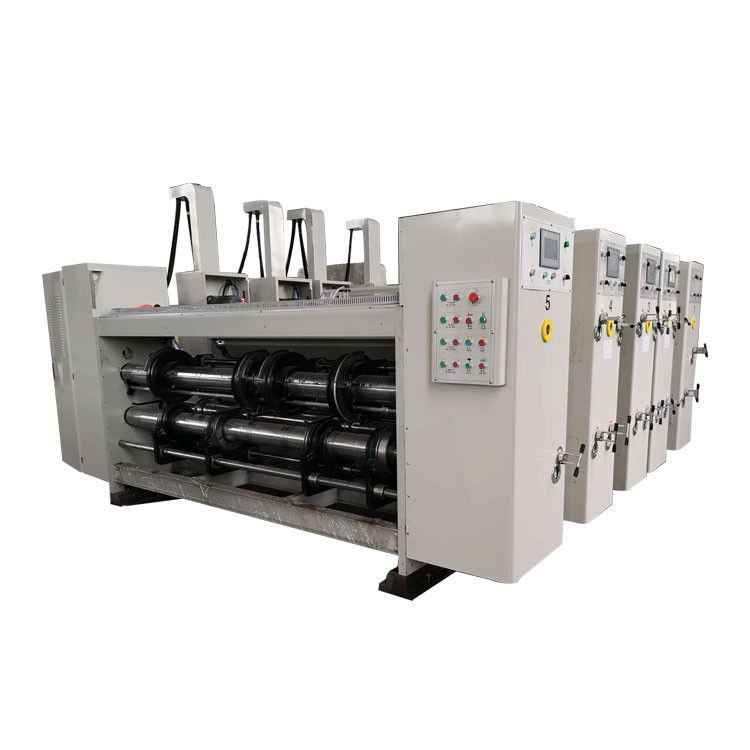

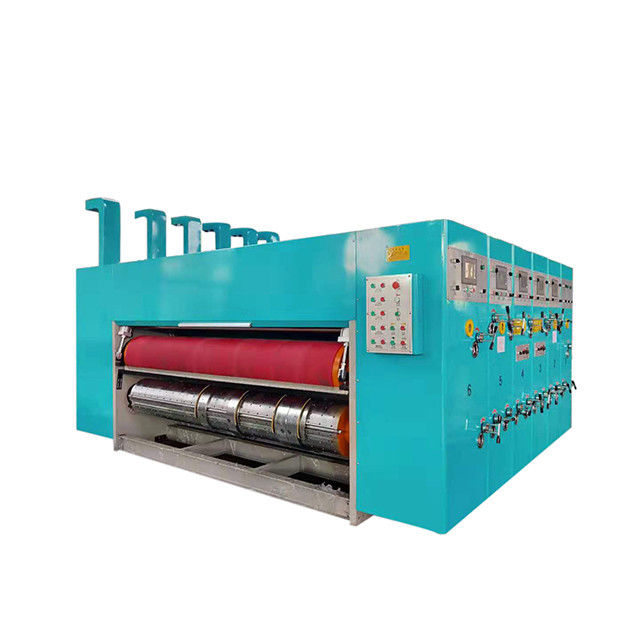

Die cutting part
( die slot attachment when customer choose the slotter part not need to add , if not have slotter part ,this part that is optional )
Tool roll (lower roll)
【1】 outside diameter ￠360mm(mm (without cutter).
【2】 cast iron surface grinding, hard chrome plating, balance correction, increase operational stability.
【3】die fixed screw hole spacing, axial 100mm; radial 18 equal parts. Applicable tool height 25.4mm.
【4】Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer paperboard)
Pad roller (upper roll)
【1】 diameter of ¢ 388.9mm, aniv cover 405mm
【2】 quick change type pad, wear resistance, long life.
【3】 cast iron surface grinding, hard chrome plated.
【4】 balance correction, increase operational stability.
【5】pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm swimming device. (Adjustable swimming speed)
【1】 electric grinding pads, modified fast and efficient.
【2】 to improve the service life of the pad.
