Flexo Printer Slotter 530mm 2900mm Die Cutting Machine

Flexo Printer Slotter 530mm 2900mm Die Cutting Machine

  • High Light

    530MM Die Cutting Machine

    ,

    2900MM Die Cutting Machine

    ,

    Carton Box Printing Slotting Machine

  • FEEDER
    AUTOMATIC VACUUM FEEDER
  • CONTROL TYPE
    PLC TOUCH SCREEN
  • PRINTER ROLLER
    300MM-530MM
  • MACHINE SIZE
    2000-2900MM
  • Place of Origin
    CHINA
  • Brand Name
    KSPACK
  • Certification
    ISO,CE
  • Model Number
    KYM
  • Minimum Order Quantity
    1SET
  • Price
    12000-39800USD/SET
  • Packaging Details
    wooden case,film,container
  • Delivery Time
    35working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    20sets per min

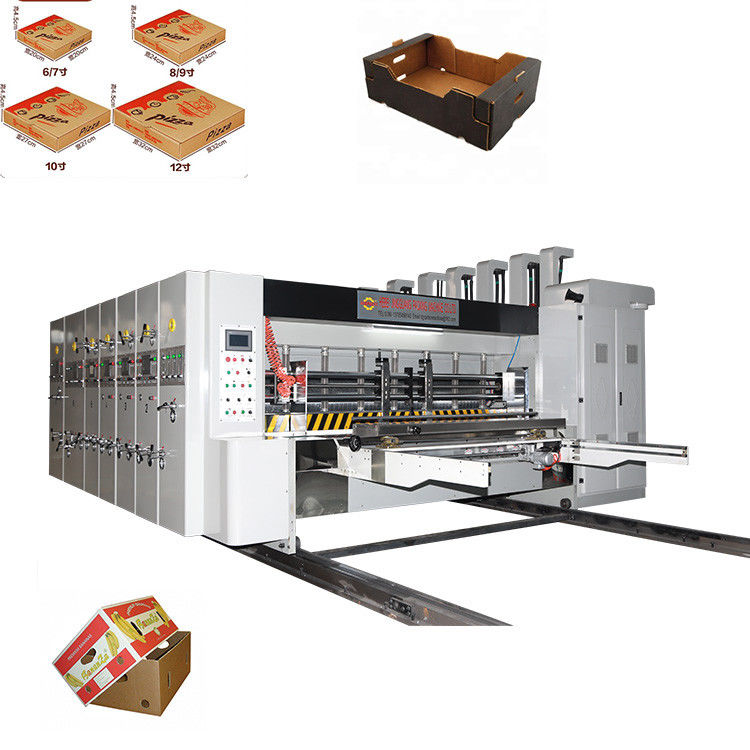

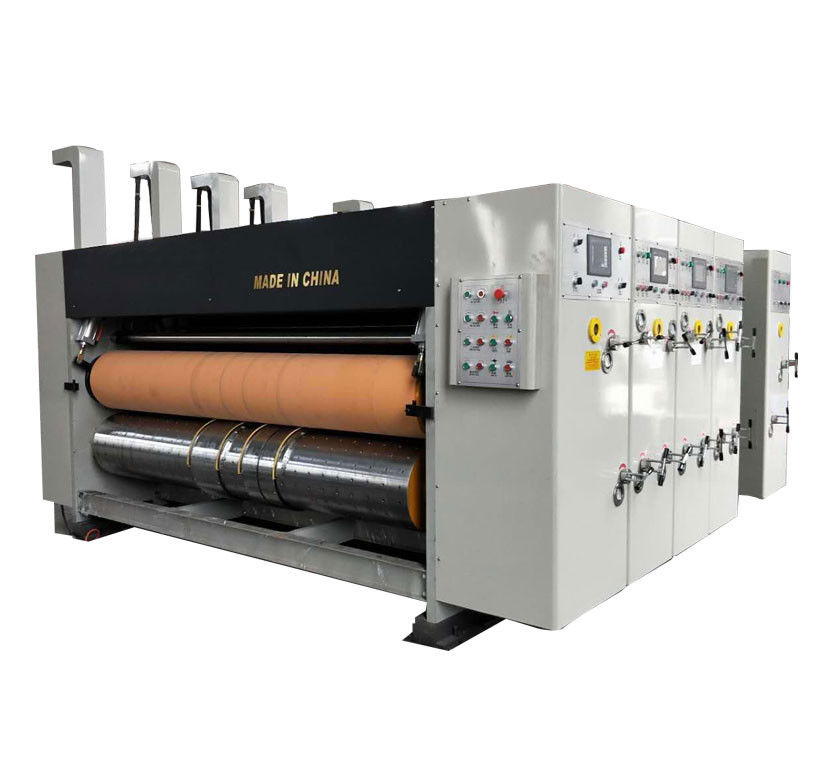

Flexo Printer Slotter 530mm 2900mm Die Cutting Machine

PLC AUTOMATIC FEEDER MULTI COLORS PRINTER SLOTTER DIECUUTER STACKER VIBRATION

MACHINE







Machine main feature:

【1】 electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.

【2】 drive shaft with friction clutch, to avoid misuse and damage to the machine.

【3】 pneumatic interlock device.

【4】 The host motor starts the protection device. (The machine is not locked, the host can not start running)















leading edge roller type feeding system



【1】 suction auxiliary feeding paper fan 7.5KW, according to the different bending conditions of cardboard, air volume adjustment,To ensure smooth paper supply. Use the brush to remove the cardboard surface Dust, scraps of paper and other debris, improve the printing quality.

[2] slotted with a chain control switch, control emergency stop paper.

【3】The paper lift and down adopt the air cylinder ,the action quickly, effort.the use of Shandong "Komori" front edge roller feed system, simple

[3] operation, high precision. The amount of extension can be adjusted, raw Strong adaptability. Speed transmission more stable, suitable for warping, thin

cardboard transmission, the effect is obvious.

【5】side baffle, rear box position by the screw electric adjustment; front baffle upper and lower gap position manually synchronized adjustment.

【6】skip feeding device (according to the need to choose continued or sheet feeding).

【7】PLC control, man-machine interface, menu storage, printing plate

correction, printing speed, quantity, time and the Department operation







Feed roller



【1】 up roller use the soft rubber shaft ,so when feed the board

ensure the not broken the board Diameter 132mm, wearing

rubber shaft ,make the balance correct ,keep the paper feed

steay and accurate.

【2】The lower feed roller with embossing roller diameter ¢ 155

mm, seamless steel pipe, embossed hard chrome plating.

【3】feeding roller cross slider-type dial dial manually adjust the

adjustment range of 0 ~ 12 mm. Adjustment does not affect

the gear gap, to ensure transmission accuracy.

【4】 hand-type quick clearance fine-tuning self-locking device.



Automatic

zero device



【1】The paper feed section, the printing section, and the slotted part are automatically reset to zero.

[2] General carton use automatic zero device, try to print two

can be adjusted to the correct position to reduce cardboard waste.
