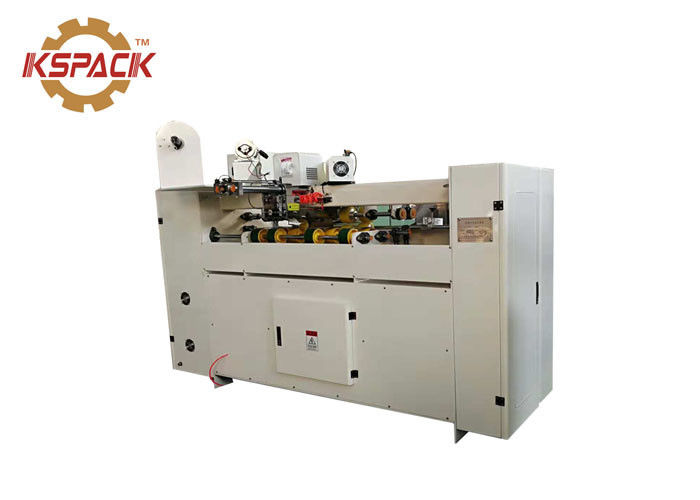

Semi Automatic Double Stitching Head Carton Stitching Machine

Semi Automatic Double Stitching Head Carton Stitching Machine

  • High Light

    semi automatic stitching machine

    ,

    corrugated stitching machine

  • Machine Name
    Semi Automatic Double Stitching Head Carton Stitching Machine
  • Application
    Carton Forming Machine
  • Warantty
    1 Year
  • Speed
    500 Min
  • Weight
    1.6T
  • Color
    Whiter
  • Place of Origin
    China Hebei
  • Brand Name
    Kingsun
  • Certification
    CE
  • Model Number
    BDJ
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wrapped in plastic film and placed in wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    5 Set 30 per days

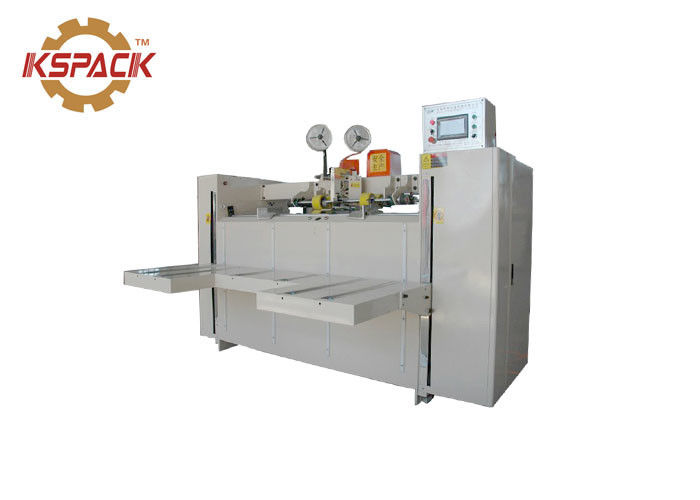

Semi Automatic Double Stitching Head Carton Stitching Machine

Semi Automatic Double Stitching Head Carton Stitching Machine



Function and Characteristics:

1. Imports of dual- -servo- -driven precision, mechanical transmission part ofthe reduction can effectively reduce the mechanical failure rate.

2. Touch screen operation, parameters (screw pitch, the number of nails, nail species, tailgate) transformation convenient.

3. Siemens PLC control system for the whole control system.

4. After the electric tailgate, the use of stepper motor drive, accurate size,transform size is more

concenient.

5. Bottom die, tungsten steel blade made by Japan (wear)

6. Entire group of special steel used in all nail head production, computer gong precision machining.

7. Can nail a single nail /,double nail 1l, to strengthen nails(// 11 Il two middelpart is a two- -screw single screw) once completed, can fit differentcustomer requirements for different types of nails. Transform carton cartonsize and adjust the screw can be completed from just one

minute, saving time and easy operation.
8. Can not nail a covered box & lid boxes (with or without lid box to nail the case of machinery in order to be noted).
9. Front feeder automatic counting, with photoelectric sensors feed units, feed is automatically increased.
10. Rear section with automatic counting function, the number of sheets can do agood job of setting the number of products (1-99) sent to the conveyor end of thesub- -stack for easy packing strapping.
11. Nail line alarm after use.(To avoid leakage arising with out nail line play, bad for
small nail).
12. Mechanical speed:500nails/min





Machine Specification



Max size (A+B)X2 3600mm min length A 250 mm
Min size A+B)X2 740mm Max height D 2000 mm
Max size (C+D+C) 3000mm Min height D 150 mm
Min size (C+D+C) 250mm Max flay size E 40 mm
Min cover size C 50mm Max paper heigh 900 mm
Max cover size C 560 mm Machine width 2850 mm
Max width size B 760 mm Machine weight(T) 2tons
Min width size B 120 mm Machine speed (nail/min) 500
Max length A 1120 mm Nail no. 1-99
