F Flute Corrugated Laminating Machine , Lamination Machine Manufacturer

f flute corrugated laminating machine , lamination machine manufacturer

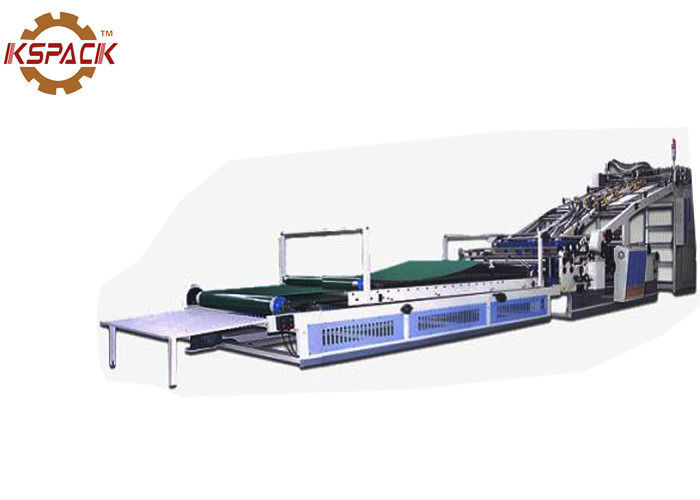

The laminating machine is also called the laminating machine or the laminating machine. It is used for the bonding of pre-printed color printing paper and corrugated board. It is an important supporting equipment for the production of pre-printed carton, and the production efficiency and quality of corrugated board processing. Has a certain impact. With the continuous development of the social economy, the application of pre-printed cartons is more and more extensive, the structure of the laminating machine is becoming more diversified and automated, and the manufacturing technology and performance are becoming more mature and advanced. Due to the different structure and performance of the laminating machine, the effect of the corrugated board and the paper sheet is also very different. Therefore, the correct purchase and use of the laminating machine is an important part of improving the production efficiency and quality of the carton.



Features



1.The machine auto feeding corrugated board bottom paper



2.,manual feeding above paper ,( there is high table model ,the top board can pile 1.5meter ,can according the paper feed height adjust the height automatic)



3.above paper can adjust front and behind,never go ahead ,match with the adjust the speed.

.

4.This used to paste the color-printing surface paper together with the bottom paper (cardboard or corrugated sheet) accurately Suitable for lamination of corrugated cardboard A/B/C/D/E/F flute board to paperboard 175-700g , and paperboard175g-700g to grey board .



5.Automatic feeding of bottom sheet and normal front feeding of top sheet With flexible front gauge positioning to control the laminating precision. Stepless timing, novelty and beauty,easy to clean ,easy operation and high laminating precision.



6.New equipment for producing the high quality cardboard, makes the cardboard more striking, nice and high intensity.



7.Used widely for packing food, wine bottle, electric appliance and light industry products.



8. The machine adopt the plc control system , electrical system run steady,and automatic show the error .



Note:

  • The quotation is for dealers price, please kindly do not disclose to the others.
  • The glue roller will stainless steel. If no stainless steel required, the cost can be deducted 500USD.



  • Specifications



KSTMT Series Automatic Flute Laminator specifications

Model

Items

Unit KSTMT- 1100 KSTMT- 1300 KSTMT- 1450 KSTMT-1600
Maximum Paper Size(W×L) mm 1100×1100 1300×1100 1450×1100 1600×1400
Minimum Paper Size(W×L) mm 350×350 350×350 350 x 350 450×450
Laminating Precision mm ≤±1.5 ≤±1.5 ≤±1.5 ≤±1.5
Speed s/min. 100 100 100 100
Total Power kw 12 12 12 13
Length m 11.5 12.5 12.5 15



Other special features of our machine:



  • Five ply can be made by the machine.
  • Max. face sheet weight: 800g/m2,Min. face sheet weight: 180g/m2, Max. corrugated sheet weight: 800g/m2, Min. corrugated sheet weight: 300g/m2
  • Less vibration and low noise.
  • CE certificate available.
  • Gluing even: 30-50gsm. Quite cost effective for your production.
  • Side lay registration is installed on the machine.



2. List of the electric components



No Code Name Model Specification Qty Manufacturer Remarks
1   Main motor AEAFAC-F 3.7KW 1 TECO For 1300,1450
5.5KW For STMT1600
2   Blower motor RB-033 2.2KW 1 CHUAN FAN
3   Lifting Motor ETVFDFQ 1.5KW 1 TECO
4   Glue pump motor Y801-4 0.55KW 1 WEIHAI HENGDA
5   Air pump motor Y100L1-4 2.2KW 1 HAIGUANG
6   Gear reducer motor for conveyor E400-100S 0.4KW 1 CHENGGANG
7 KMO AC contactor LC1-D4010N 40A 220VAC 1 SCHNEIDER
8 KM1.5 AC contactor LC1-D1810N 18A AC220V 2 SCHNEIDER
9 KM2.3.4.KA0 AC contactor LC1-D0910N 9A AC220V 4 SCHNEIDER
10   Assistant contact LA1-DN11N 1NO+1NC 5A 3 SCHNEIDER
11 KM6.7 AC contactor LC2-D1201 12A AC220V Combination 1 SCHNEIDER
12 VC Switching power supply S-60-24 AC220V 1 MEAN WELL
13 SSR1 Solid state relay ASR-40DA 40A AC24-380V 1 ANLY
14 SSR2 Solid state relay ASR-25DA 25A AC24-380V 1 ANLY
15 QS0 Three-phase low-voltage breaker EA53C 40A 1 FUJI
16 SL Liquid relay A61F-G AC220V 1 ANLY
17 ST1.2.3.4. Limit switch TZ-8166 5A AC220V 4 TEND
18 ST5 Limit switch TZ-8108 5A AC220V 1 TEND
19 SQ1,2 Photoelectric switch CDR-10X DC 10-30V 2 FOTEK
20 SQ3.4.5.6. Proximity switch PM12-04N DC 10-30V 4 FOTEK
