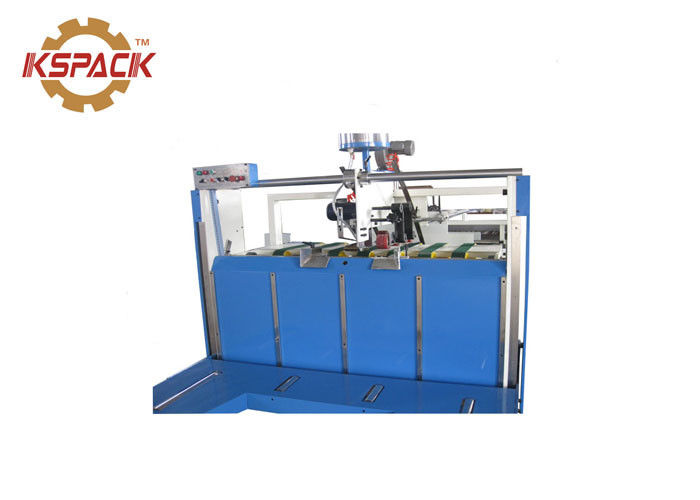

Semi Automatic Box Folder Gluer Machine , Carton Box Folding Machine

Semi Automatic Box Folder Gluer Machine , Carton Box Folding Machine

  • High Light

    automatic folding machine

    ,

    carton folder gluer machine

  • Name
    Carton Box Folding Machine
  • Warranty
    1 Year
  • Appliction
    Carton Forming Machine
  • Power
    2.2kw
  • Packaging Material
    Paper
  • Function
    High Efficiency
  • Place of Origin
    China Hebei
  • Brand Name
    Kingsun
  • Certification
    CE
  • Model Number
    ZXJ
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wrapped in plastic film and placed in wooden box
  • Delivery Time
    4-6 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    5 Set 40 per days

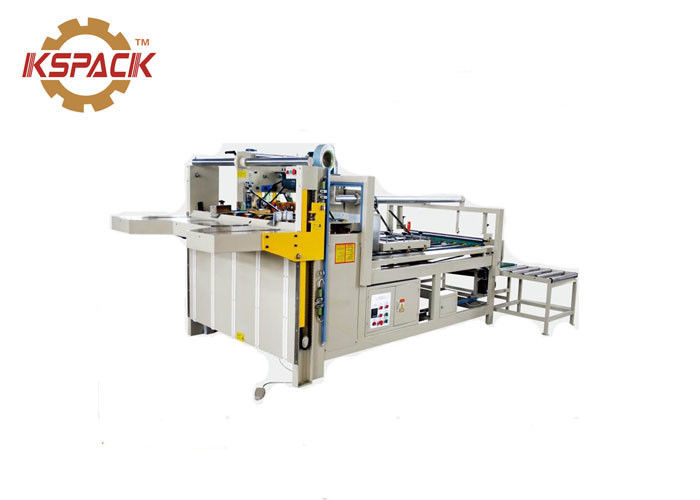

Semi Automatic Box Folder Gluer Machine , Carton Box Folding Machine

Semi Automatic Box Folder Gluer Machine , Carton Box Folding Machine



Profile:

ZXJ type semi-automatic sticky box machine is in recent years the carton manufacturing of new environmental protection equipment, mainly for the carton stick, discard the traditional copper nail binding method, improve the production efficiency, make good quality box .

Main frame: frame, lift workstation, front convey part , middle convey part , pressure and device, finished product side output part , electrical control equipment.

structure:

1.ZXJ type semi-automatic sticky box machine ,mechanical speed 40 pcs /min . Using digital counter , auto stacker and side output.

2.The paper lift can be automatically or foot finish lift, convenient and quick improve production efficiency.

3.glue head use us import high quality aluminum material , rubber wheel choose Japan stainless steel, glue tank use the seamles steel drums given glue by nature pressure .

After Coating adhesive and dryer by the high pressure fan , then correction by electronic induction automatic output to middle pressure part, set the number of finished product packaging required, automatic horizontal output.

Automatic square department . correction the flap not in line after glue coat becuase of the press paper error . Automatic counting, accumulation and tidy.

4 sepear part

1. )The machine choose 380 V, power 3KW, energy saving, high efficiency.

2.) Choose imported Italian belt loop seamless docking belt.

3. )Bearing choose the international famous brand TR bearing.

4.) Spiral wire rod, ball screw, nut are chosen for 45 # steel, high quality and quenching process processing.

5.) Copper set (ZQSn6-6-3) with, drops of oil lubrication, wear-resisting durable.

6.) The whole machine are chosen for china's motor's, low noise, environmental protection, energy saving and low energy consumption.



Carton Box Folding Machine Main Parameter:



Model ZXJ-2600 ZXJ-2800
Max size (L+W)*2 2460mm 2800mm
Min size (L+W)*2 340mm 340mm
Max size(W+H)*2 1515mm 1515mm
Min size (W+H)*2 240mm 260mm
High of feeder 900mm 1000mm
Power 4kw 4kw
Machine length 5300 5300mm
Machine weight 2470 2150kg
Machine speed 40m/min 60m/min
