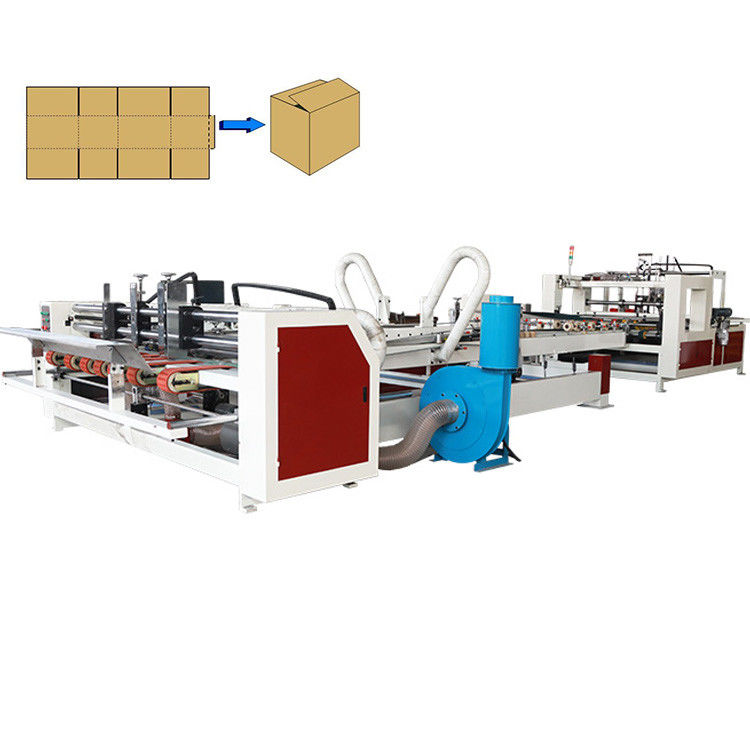

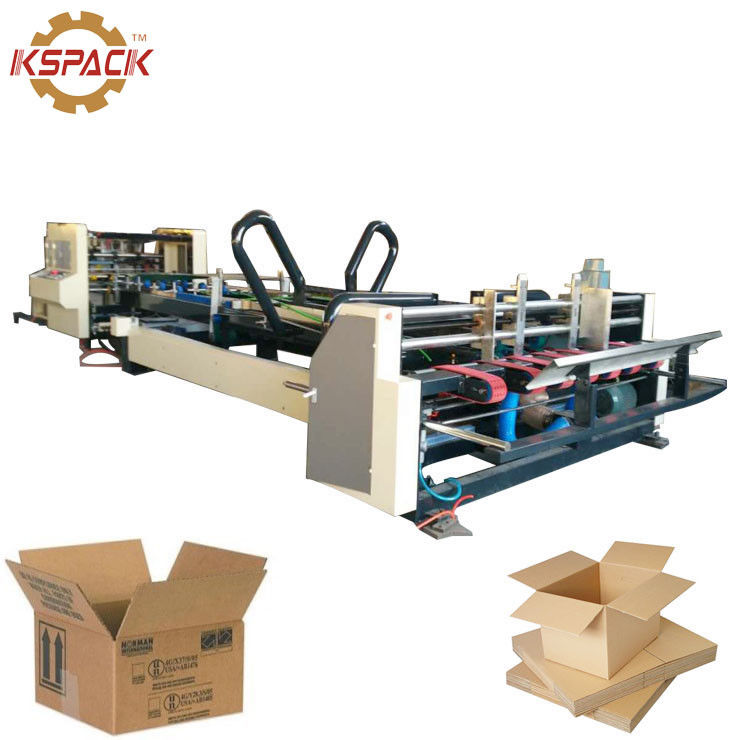

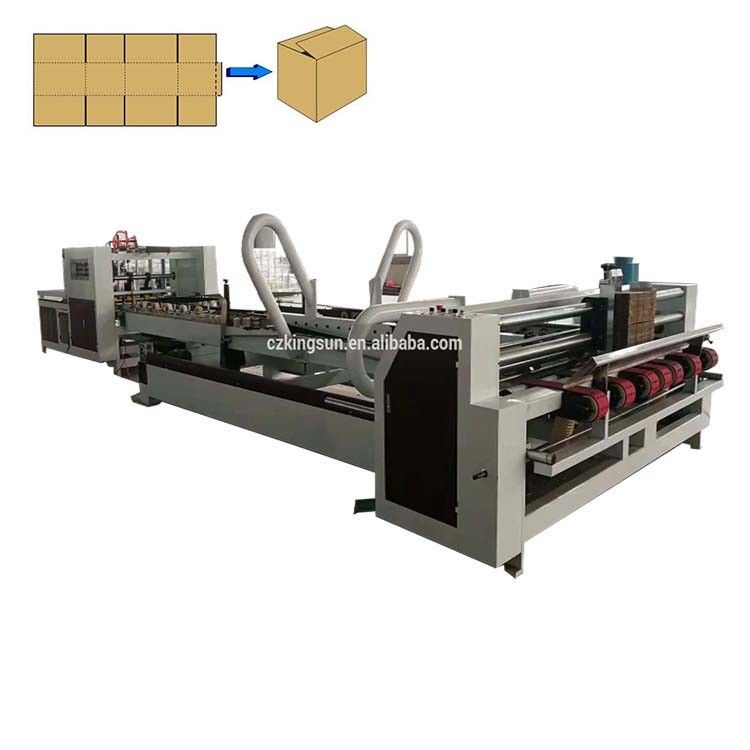

Automatic Corrugated Box Folder Gluer Machine For Carton Forming

Automatic Corrugated Box Folder Gluer Machine For Carton Forming

  • High Light

    carton folder gluer machine

    ,

    box folder gluer machine

  • Machine Name
    Box Folder Gluer Machine
  • Color
    White
  • Function
    Corrugated Carton Forming
  • Max Cardboard
    900x200mm
  • Dimensions
    1100x3000x1600mm
  • Power
    12Kw 380v
  • Place of Origin
    China Hebei
  • Brand Name
    Kingsun
  • Certification
    CE
  • Model Number
    AFG
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wrapped in plastic film and placed in wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    3 Set 40 per days

Automatic Corrugated Box Folder Gluer Machine For Carton Forming

Automatic Corrugated Box Folder Gluer Machine For Carton Forming



AFG Series automatic folder gluer machine consist of three sections : vacuum feeding section , glue and folding section ,counter and stacker section , frequency conversion motor with quality inverter adjust speed ,PLC&TOUCH screen control system for easy operation and running stable ,average speed 150 sheets/min ,Energy conservation and high speed ,saving labor cost
Feeding section :
1.vacuum suction feeding to feed warping paperboard easily
2.quality electromagnetic cluth and brak adopted ,feeding section controled independent ,operation easily
3.scorer wheel adjustable ,suit for 2-8mm thick paperboard
4.second creasing struction can impress again the paperboard which was not creased well

Glue and folding section:
1.Simpless structure and high reliablity ,glue quantity adjustable ,cleaning easily ,
2.Stainless steel glue wheel adopted ,long life and saving glue cost ,
3.Imported quality rubber belt adopted ,automatic folding
4.With paperboard rectify device and creasing rectify device
Counter and stacker section:
1.Stacking and counting are simple and reliable
2.Digital control operation easily and reliable ,no stop put in date and automatic counting
3.With rectification function
4.Paperboard counting and put out by pneumatic stable and quickly



Model AFG2400 AFG2800
Max cardboard (mm) 900*2200 1200*2600
Min cardboard 300*900 300*900
Dimensions 11*3*1.6 meter 12.5*3.4*1.6meter
Total weight 6000kg 7000kg
Power required 11.5kw 14.5kw
Paperboard thickness 3or 5ply
Control PLC and touch screen
