Two Heads Automatic Paper Tube Making Machine Paper Core Making Machiner KSJG - 200 Type

Two Heads Automatic Paper Tube Making Machine Paper Core Making Machiner KSJG - 200 Type

  • High Light

    paper pipe making machine

    ,

    paper slitter rewinder machine

  • Machine Name
    Automatic Paper Tube Making Machine
  • Machine Function
    Tube Making Machine
  • Warranty Time
    1 Year
  • Material
    45 Steel
  • Paper Tube Diameter
    20-200mm
  • Control System
    PLC
  • Place of Origin
    hebei
  • Brand Name
    KSPACK
  • Certification
    ISO,CE
  • Model Number
    KSJG-200
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    wooden case ,container
  • Delivery Time
    30-50days after getting deposit
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20sets per month

Two Heads Automatic Paper Tube Making Machine Paper Core Making Machiner KSJG - 200 Type

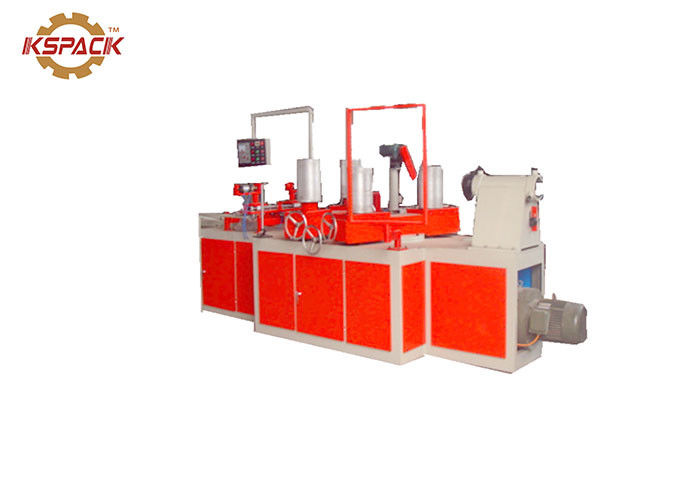

KSJG-200 CNC two heads paper tube making machine



8. The host two adjustable pedestal arm below each of the three spherical support column, thereby increasing the stability of the swing arm, reducing the lower drive bearing single-sided force, thereby enhancing the service life of parts.

9. The operation of the two mainframe design more humane, the operator in the paper orientation and the direction of machine operation can easily control the speed of the machine, this function in the machine during the production of paper can be timely deceleration or downtime and reduce waste.

10. The host belt roller diameter of 294mm, instead of the traditional small diameter belt roller, which greatly increased the belt roller and belt friction, thus avoiding the belt slip. Discard phenomenon, thereby increasing the quality of paper tube production, belt roller The protective cover improves the safe operation of the production factor, this device is more secure. Humanized.



Size (mm) Drop tube rack automatic
Host Size: L * W * H 2900mm*1700mm*1900mm Belt adjustment Manual
Land area: length * width 20000mm*9000mm For glue Automatic stainless steel heating plastic tank
Hub diameter 294mm Tape for lubrication oil Automatic lubrication of stainless steel basin
Hub height 360mm∕430mm Tension adjustment Mechanical adjustment
Minimum track 1000mm Paper holder type Right-angle fixed lifting on the paper holder
The maximum track 1250mm Roll mandrel 1
total weight 5600kg Roll tube belt 1 article
