Paper Automatic Paper Tube Making Machine , 3 Meters Core Making Machine

Paper Automatic Paper Tube Making Machine , 3 Meters Core Making Machine

  • High Light

    paper slitter rewinder machine

    ,

    paper core making machine

  • Machine Name
    Automatic Paper Tube Making Machine
  • Machine Function
    Tube Making Machine
  • Warranty Time
    1 Year
  • Material
    45 Steel
  • Paper Tube Diameter
    50-300mm
  • Control System
    PLC
  • Place of Origin
    hebei
  • Brand Name
    KSPACK
  • Certification
    ISO,CE
  • Model Number
    KSJG-300
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    wooden case ,container
  • Delivery Time
    30-50days after getting deposit
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20sets per month

Paper Automatic Paper Tube Making Machine , 3 Meters Core Making Machine

3m paper core making machinery



1. CNC, light control two fixed-length mode, make the operation more convenient and faster.

2. The main motor Shanghai strong speed (15kw), this product output power, and has adjustable speed function.

3.The main engine is WP0155 reducer, this reducer runs smoothly and the noise is low.

4. The man-machine interface is a special-purpose product that can input paper width, paper tube diameter, cutter distance, tube cutting system and paper tube length through the man-machine interface. The control system will automatically calculate the result and realize the speed of tube winding and cutting speed Cooperation.

5. The main electrical relay equipment for the implementation of Chint products are the middle; cylinder components Austrian days products. These are well-known brands at home and abroad, with durable, high practical value characteristics.

6. Cutting table walking lubrication by hand pump unified raise, easy to operate



Technical parameter
Roll tube paper layer 3-25 layers
Paper tube diameter 30-200 (mm)
Paper tube thickness 1-15 (mm)
Tube speed 0-25 (m / min)
Fixed-length mode CNC (light control)
Winding machine head No resistance four machine head
Cutting method Single round knife automatic tracking cutting
Core mold fixed way Flange plus tight
Glue way Double-sided adhesive
control method Frequency
Input voltage 380V / 220V
Number of operators 1-3 people

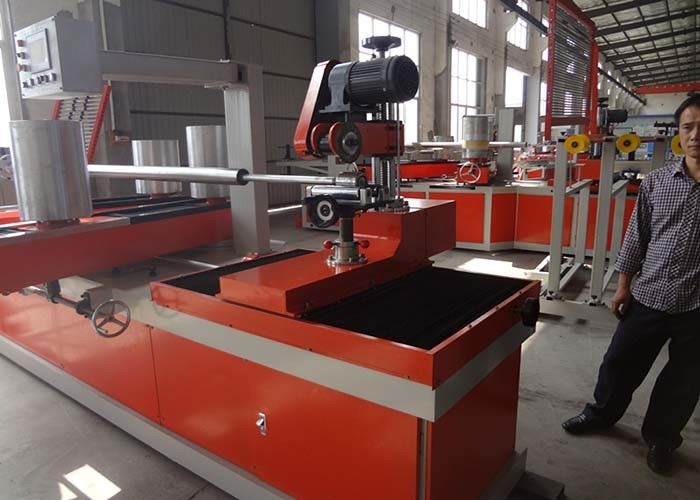

Paper Automatic Paper Tube Making Machine , 3 Meters Core Making Machine 0



the machine final paper tubes :

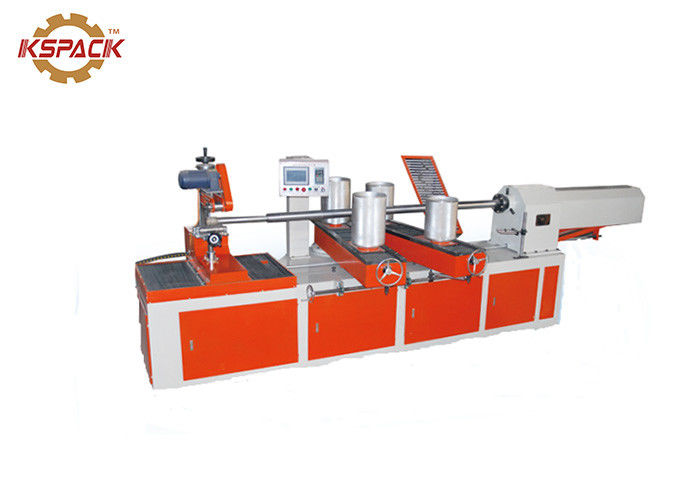

Paper Automatic Paper Tube Making Machine , 3 Meters Core Making Machine 1
