Flute Laminator /Semiautomatic Paperboard Cardboard Flute Laminator Machine

Flute Laminator /Semiautomatic Paperboard Cardboard Flute Laminator Machine

  • High Light

    vacuum laminating machine


    laminate pressing machine

  • Name
    Flute Laminator Machine
  • Min Laminator Size
  • Speed
  • Machine Size
  • Warranty Period
    One Year
  • Certificate
    CE ISO
  • Place of Origin
    Hebei Province, China
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    in skin , in carton , in container
  • Delivery Time
    40-60 days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    10 set per month

Flute Laminator /Semiautomatic Paperboard Cardboard Flute Laminator Machine

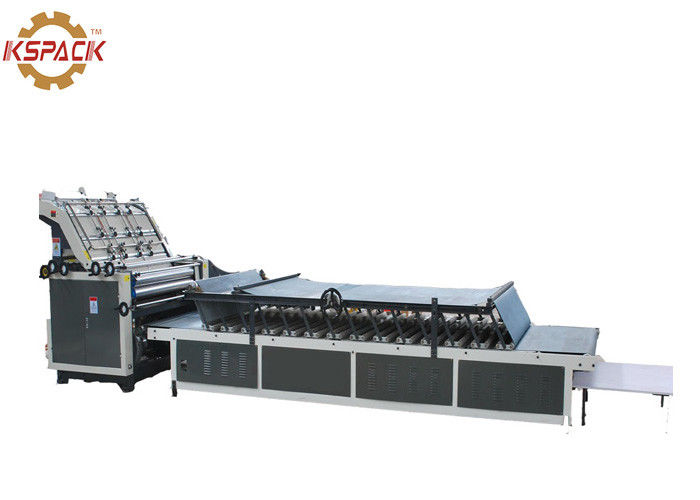

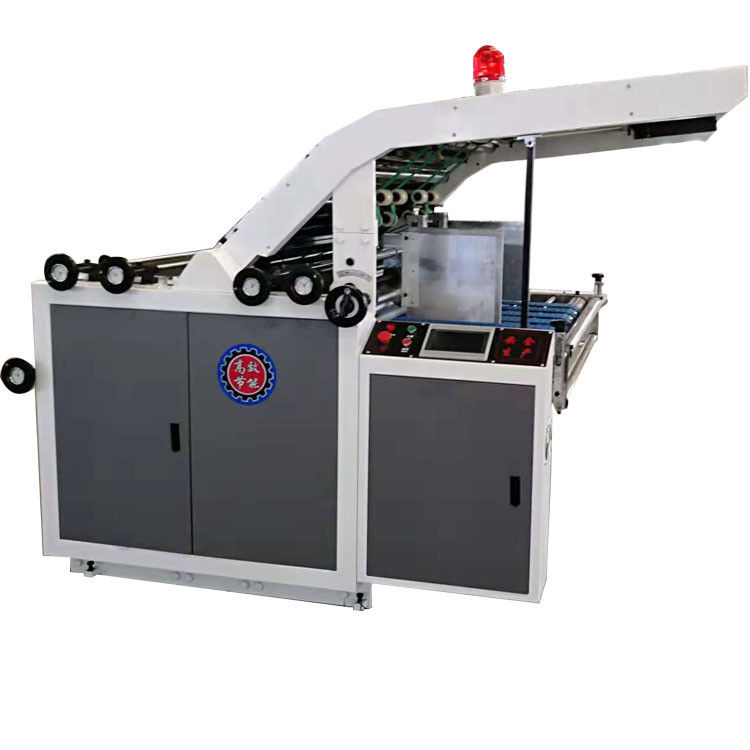

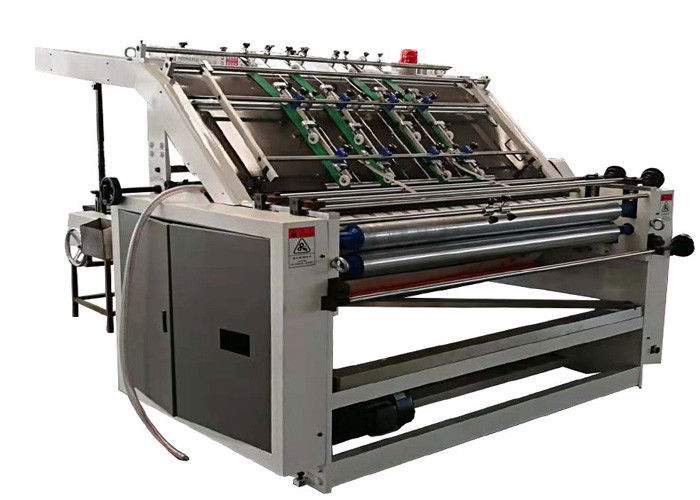

semiautomatic paperboard cardboard flute laminating machine Laminator Machine


The laminating machine is also called the laminating machine or the laminating machine. It is used for the bonding of pre-printed color printing paper and corrugated board. It is an important supporting equipment for the production of pre-printed carton, and the production efficiency and quality of corrugated board processing. Has a certain impact. With the continuous development of the social economy, the application of pre-printed cartons is more and more extensive, the structure of the laminating machine is becoming more diversified and automated, and the manufacturing technology and performance are becoming more mature and advanced. Due to the different structure and performance of the laminating machine, the effect of the corrugated board and the paper sheet is also very different. Therefore, the correct purchase and use of the laminating machine is an important part of improving the production efficiency and quality of the carton.




1.automatic laminating machine are the fourth-generation products of back push style, the machine have advantage of easy operation, convenient maintenance, high speed, low noise, and high accuracy. it will help you to gain the power in the market improved parts and electrical components from japan and germany, guarantee the quality and use life.


2.timing belt drive of the machine is mainly imported from japan, . timing belt has soft and tough, durable wear and heat resistance characteristics to ensure the accuracy of the machine precision fit.


The semi-automatic laminating machine is suitable for the lamination of color printing paper (corrugated or cardboard). The laminated cardboard is smooth and beautiful. It is the key equipment for producing high quality color carton and carton. Widely used in packaging and manufacturing industries such as alcohol, food, home appliances, light industry and textiles.

Automatically feeding the bottom paper and pushing the paper on the front side, which makes feeding paper easy and fast, reducing labor intensity;

The pre-defined bottom paper will never be advanced, suitable for paper jam and cardboard fit, and the paper jam is matched with A, B, C, D, E corrugated cardboard;

The bottom paper and the face paper are adjustable before and after, and are easy to apply;

The glue supply system has automatic control of the liquid level relay, the thickness of the glue layer can be adjusted evenly, and the watering amount is saved;

The motor adopts stepless speed regulation, the electromagnetic clutch adopts the contactless point solid state relay, the stroke position adopts photoelectric switch detection, electronic automatic counting and empty sheet photoelectric automatic control.


stm series automatic flute laminator specifications



unit kstm- 1100 kstm- 1300 kstm- 1450 kstm-1600
maximum paper size(w×l) mm 1100×1100 1300×1100 1450×1100 1600×1400
minimum paper size(w×l) mm 350×350 350×350 350 x 350 450×450
laminating precision mm ≤±1.5 ≤±1.5 ≤±1.5 ≤±1.5
speed s/min. 100 100 100 100
total power kw 12 12 12 13
length m 11.5 12.5 12.5 15


main electric components for kstm-1300 automatic flute laminator


no. name specification manufacturer remarks
1 contactor lc1-d0910 schneider
2 stabilized voltage supply s-250-24 meanwell,taiwan
3 plc fx1n-60mt mitsubishi, japan
4 plc extension fx2n-2da mitsubishi, japan
5 approach switch pm12-02n fotek, taiwan
6 vari-speed drive fr-e540-2.2k mitsubishi, japan
7 photoelectric switch e2r-10n fotek, taiwan
8 encoder e6b2-cwe6c omron, japan
9 thermal relay lr2-d1310n schneider
10 touch screen mt506s eview, taiwan
11 step motor 2s86q-030b8 kinco, shenzhen
12 step drive 2m1160 kinco, shenzhen



Machine video:https://youtu.be/LdYdfh8fINk
