Corrugated Paper Box Binding Machine Waste Paper Baler Customized Color

Corrugated Paper Box Binding Machine Waste Paper Baler Customized Color

  • High Light

    corrugated box binding machine


    corrugated carton binding machine


    ce corrugated box binding machine

  • Name
    Box Binding Machine
  • Color
    According To Customer
  • Size
    2900*1450*900 Mm
  • Stafe
    More Than 100
  • After Sale
    More Than One Year
  • Keyword
    Box Binding Machine
  • Place of Origin
    Hebei ,china
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    in skin ,in wooden , in container
  • Delivery Time
    20- 40 days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    20 set per month

Corrugated Paper Box Binding Machine Waste Paper Baler Customized Color

Manual 25 tons Paper vertical strapping Box Binding Machine 7.5KW Power


The waste paper baler is used to extrude waste paper and similar products under normal conditions, and is packaged and formed by special packaging belts, so that the volume thereof is greatly reduced, thereby reducing the transportation volume, saving freight, and increasing the efficiency for the enterprise. Introduced advanced technology and advanced technology of similar products at home and abroad.


A. With the increasing awareness of environmental protection, the waste paper baler has played a big role in the reuse of some waste paper, and it has become more and more accepted by everyone.

B.The domestic waste paper baler has been constantly innovating , constantly following the development of some advanced technologies abroad.


1. The equipment is hydraulically powered, easy to install and does not require foundation.

2, the installation does not need foot screws, in the place without power, diesel engine can be used for power;

3. The discharge form includes different methods such as turning over, pushing the bag or manually taking the bag (packing);

4. There are ten grades of extrusion force from 10 tons to 100 tons for users to choose.

5, size and mass size can be customized according to customer requirements.

6. The spherical structure is connected between the pushing cylinder and the pushing head, the reliability is good, and the oil seal has a long service life.


Operation method and matters

1. Check whether the appearance of the equipment is abnormal and whether there are any safety hazards around it (long rods or other foreign objects are prohibited from being placed near the machine). After confirming the normal, open the electric control box load switch, the key switch is turned to the open position, and the emergency stop button is opened, and the electric control box power indicator lights up.

2. Put a large piece of paper on the bottom of the machine, close the upper and lower iron doors, and rotate the lower door fastener to lock it tightly. (The lock must be tightly locked when the door is locked to the end, because the internal pressure is large when the machine is working, and the lock is not tight. A gap in the door will cause the safety sensor to act and the machine will stop working.)

3. Press the row button to press the pressure head down to the bottom and automatically rise to the upper position to stop. The air pressure once resets the outsourcing chain on the pressure head.

4. Open the upper iron door and put the material into the machine evenly until it is full, and close the upper iron door (must be closed in place, otherwise the safety photoelectric detection sensor on the door will act, the machine will not start).

5. Press the row button, the pressure head goes down, and when it is pressed to the bottom position, it will automatically rise back to the upper part to stop.

6. Repeat operation 4-5 until the siren sounds on the electric control box. The warning has reached the set packing height. At this time, the indenter presses the paper bag and stops. If you do not need to set the packing height, you need to bundle the bag in advance. Down button for 2 seconds, at this time the machine starts, the pressure head presses the paper bag and stops, and continues to the next step).


Single cylinder

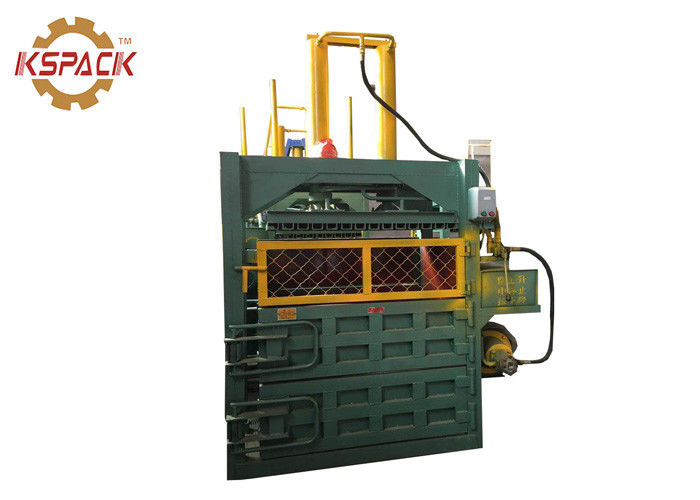

Corrugated Paper Box Binding Machine Waste Paper Baler Customized Color 0

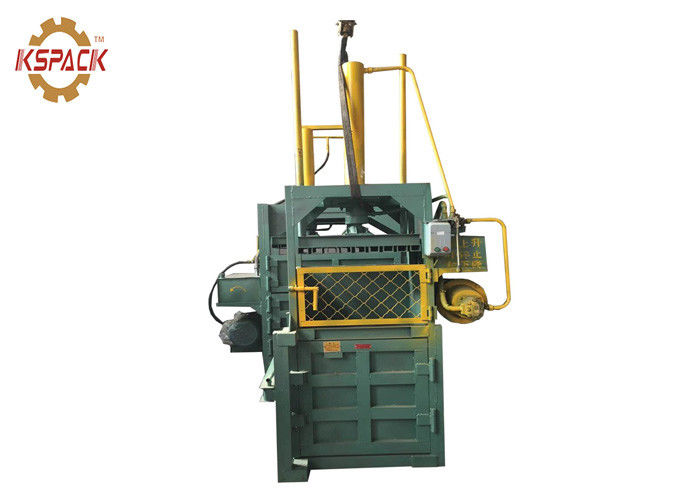

      Corrugated Paper Box Binding Machine Waste Paper Baler Customized Color 1

Corrugated Paper Box Binding Machine Waste Paper Baler Customized Color 2
