PLC Touch Screen Automatic Paper Tube Making Machine KSJG - 200 Model

PLC Touch Screen Automatic Paper Tube Making Machine KSJG - 200 Model

  • High Light

    paper slitter rewinder machine

    ,

    paper core making machine

  • Machine Name
    Automatic Paper Tube Making Machine
  • Machine Function
    Tube Making Machine
  • Warranty Time
    1 Year
  • Material
    45 Steel
  • Paper Tube Diameter
    20-200mm
  • Control System
    PLC
  • Place of Origin
    hebei
  • Brand Name
    KSPACK
  • Certification
    ISO,CE
  • Model Number
    KSJG-200
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    wooden case ,container
  • Delivery Time
    30-50days after getting deposit
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20sets per month

PLC Touch Screen Automatic Paper Tube Making Machine KSJG - 200 Model

KSJG-200 PLC touch screen automatic paper tube making machine



1. For paper tube diameter Ø30-200mm; paper tube thickness of 1-15mm paper tube production.

2. According to different paper tube, tube speed between 0-25 (m / min).

3. No resistance four machine so that the paper tube strength has been greatly improved.

4. CNC, light control two fixed-length mode, make the operation more convenient and faster.

5. The main motor Shanghai strong speed (15kw), this product output power, and has adjustable speed function.



Size (mm) Drop tube rack automatic
Host Size: L * W * H 2900mm*1700mm*1900mm Belt adjustment Manual
Land area: length * width 20000mm*9000mm For glue Automatic stainless steel heating plastic tank
Hub diameter 294mm Tape for lubrication oil Automatic lubrication of stainless steel basin
Hub height 360mm∕430mm Tension adjustment Mechanical adjustment
Minimum track 1000mm Paper holder type Right-angle fixed lifting on the paper holder
The maximum track 1250mm Roll mandrel 1
total weight 5600kg Roll tube belt 1 article

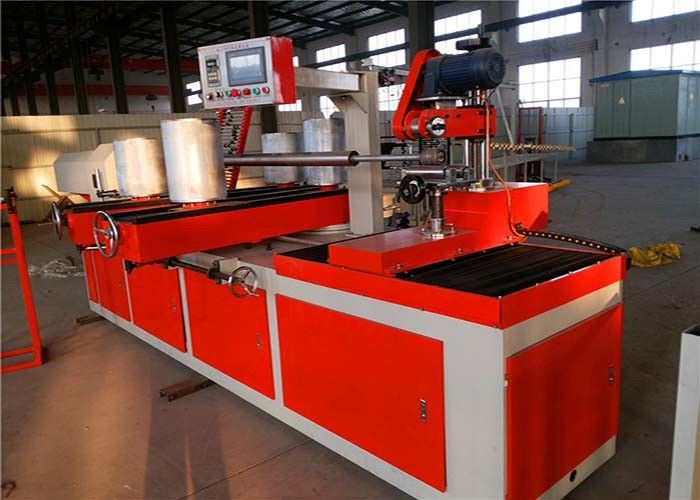

PLC Touch Screen Automatic Paper Tube Making Machine KSJG - 200 Model 0



the machine final products:

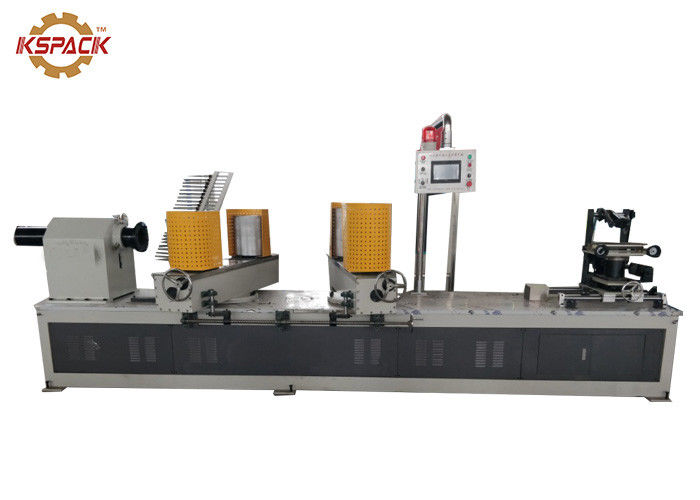

PLC Touch Screen Automatic Paper Tube Making Machine KSJG - 200 Model 1
