Slitter Scorer , Automatic Corrugated Cardboard Thin Blade Slitter
1.Slitter Scorer Brief introduction
Thin Edges Blade Slitter Scorer Machine with Four Sets of Slitting Blades fitted with pneumatic cylinders and Grinding wheels to sharpen the blades and with Four sets of creasing dies with 5 HP Motor (SIEMENS/CROMPTON) with variable speed AC Drive and control panel fitted with timer and counter along with air compressor.
Available Sizes : 1600 / 1800 / 2000/ 2200 /2500 /3000
2.Main Configuration for thin blade slitter
1)4 blades 6 scorers or 5 blades 8 scorers.
2)Adopt electromotion lift-lower in order to change the height of paper cutting and indentation, and to fit for the height of paper feeding.
3)Adopts novelty thin edge high speed paper cutting, the incisions are level up and velvet.
4) Auto-grinding edge system can be realized in the process of production, non-stop machine grinding edge, according to material and condition of hem, set the interval meter and the grinding time at any moment.
5)The whole set adopt electromotion movement horizontal, to correct cardboard deviation
3. Different Thin blade slitter Machine size
|Min Slitting length||260mm||260mm||260mm||260mm|
|Min slidtting width||130mm||130mm||130mm||130mm|
|Min scorer width||30mm||30mm||30mm||30mm|

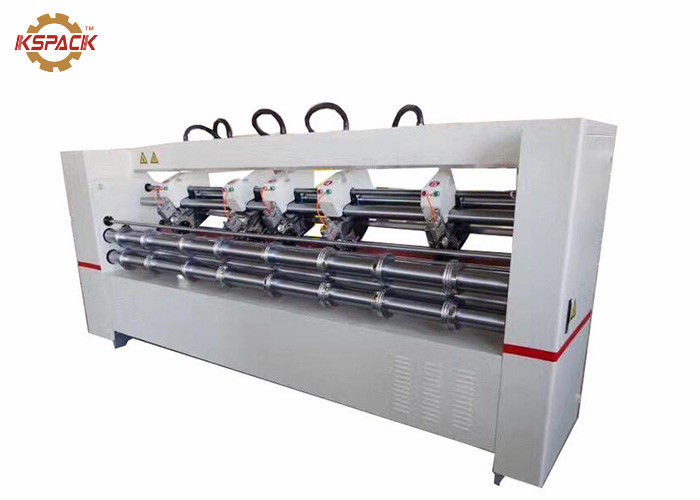

4.Thin Blade Slitter Machine Pictures
