Corrugated cardboard production line is a special equipment for producing corrugated cardboard. It mainly consists of base paper frame, surface (core) paper preheater, single-sided corrugating machine, conveying bridge, gluing machine, double-sided machine, ear cutting and waste cutting machine, slitting and creasing machine, cross-cutting machine, stacking machine and It consists of steam heating system, air compression system, rubber circulation system, electrical control system and other main equipment. Different models and different quantities of equipment can form three-, five-, and seven-layer high-speed corrugated cardboard production lines of different specifications and grades. On the basis of absorbing advanced technology at home and abroad and extensively understanding the needs of users, the company has developed and produced four flute types with a speed of 150-300m/min, a width of 1800-2800mm, and UV partial V-type A, C, B, E. Three-, five-, seven-layer corrugated cardboard production lines are available for customers to choose according to their needs.
Single Facer Machine
1.Single facer flute diameter:280-380mm
2.Speed:60-250m/min
3.Heating :oil,electric and steam heating
4.Size :1400-2500mm
5.Change fulte roller: automatic or manual
6.Flute roller material: alloy or tungsten carbide
7.Flute type:A-F

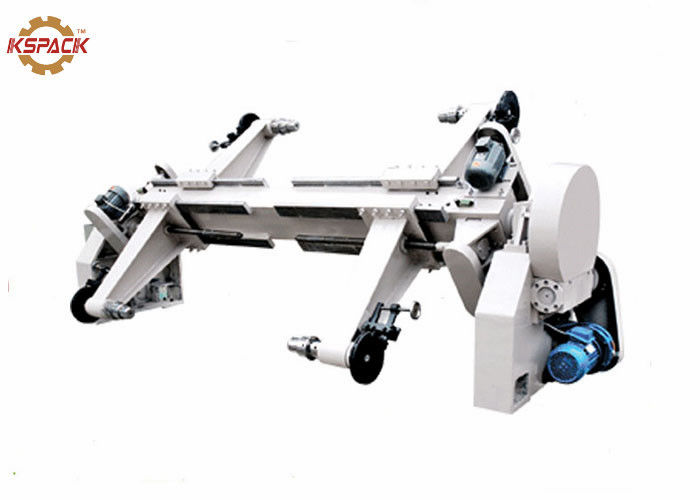

Hydraulic Shaftless Mill Roll Stand
1.Symmetrical structure can be installed with two bundles of paper tubes at the same time, which can be used for non-stop paper change operations .
2.The full hydraulic mill roll stand is used to complete the action of clamping, loosening, moving centering, left and right translation of the base paper, and the base paper lifting is hydraulically driven.
3.The brake adjustment uses a multi-point pneumatic brake system. (three points).

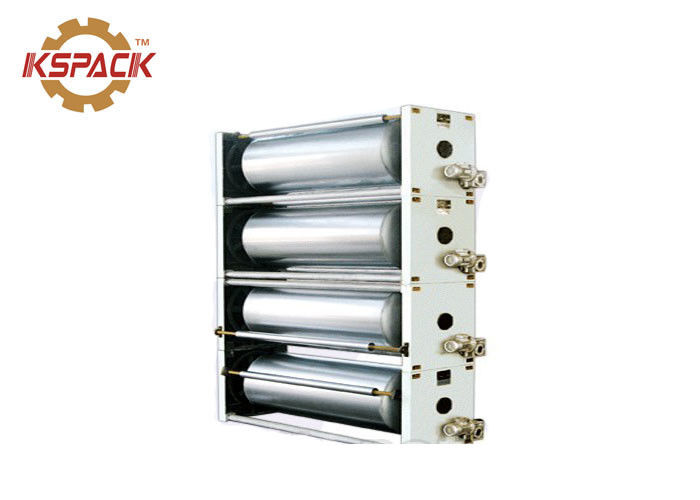

Top Paper Preheat Cylinder
图片1张
Electric adjustment of wrap angle. The wrapping angle can adjust the heated area of the paper within 360°.
| Specifications | device name | unit | Qty | Note |
| ZJ-V5B | Fully hydraulic | Set | 5 |
Main shaft ￠242mm, hyperbolic heavy-duty rocker arm, toothed paper clamping head, multi-point brake, hydraulic drive lift, left and right translation, to the middle. The length of the guide rail is 6000mm, and the middle plate is welded. |
| Rollerless paper holder | Set | 10 | ||
| R06B | Face paper preheater | Set | 2 | Roller ￠600mm, with pressure vessel certificate. Electric angle adjustment. The wrap angle can adjust the heated area of the paper within 360°. |
| R06B | Core paper preheater | Set | 2 | Roller ￠600mm, with pressure vessel certificate. Electric angle adjustment. The wrap angle can adjust the heated area of the paper within 360°. |

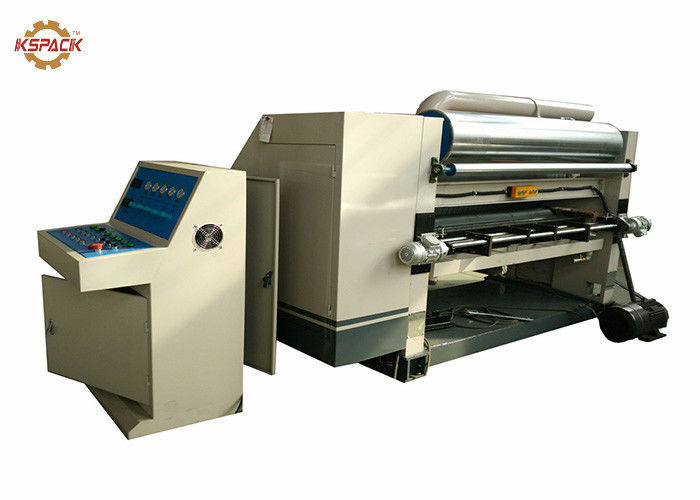

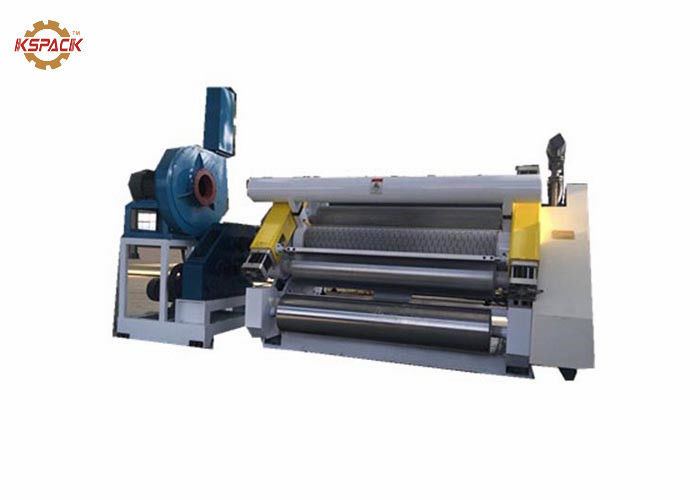

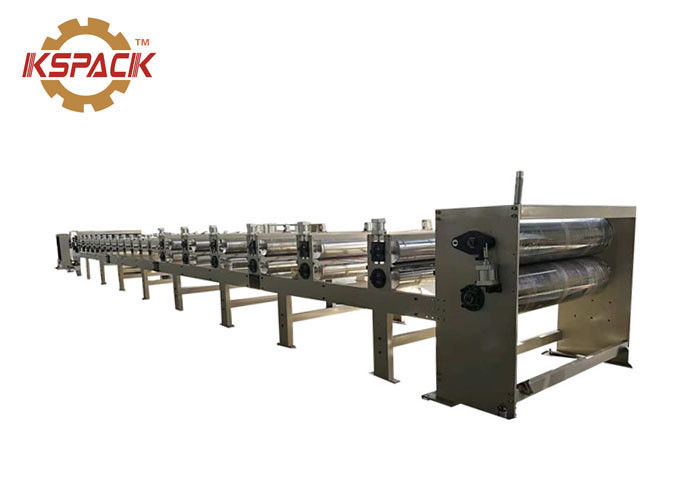

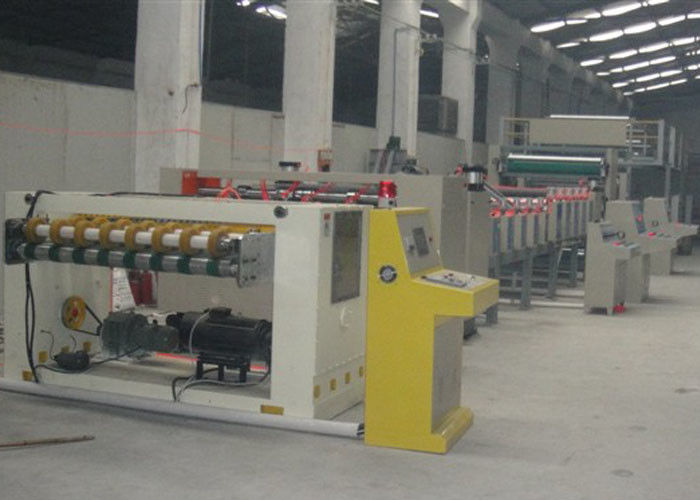

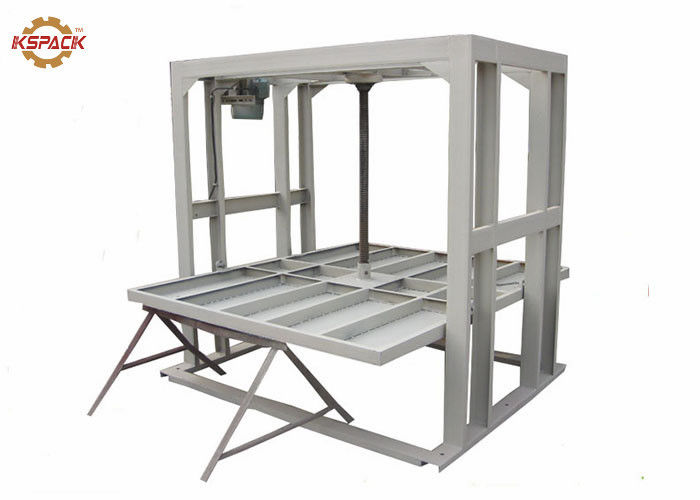

| SF-320B | Single facer | Set | 2 | Corrugated main roll ￠320mm, material 48CrMo alloy steel. Electric separator, electric glue adjustment. Adopt independent gearbox and universal joint transmission structure. Steam heating |
| RG-3-600 | Triple preheater | Set | 1 | Roller ￠600mm, with pressure vessel certificate. Electric angle adjustment. The wrap angle can adjust the heated area of the paper within 360°. |
| GM-12 | Glue machine | Set | 1 | The diameter of the glue roller is 245mm. Each layer is driven by an independent variable frequency motor, and the PLC adjusts the glue gap and human-machine interface. |
| ZDF | bridge | set | 1 | The main beam is 200mm channel steel, the independent frequency conversion motor drives the paper conveying, and the adsorption tensioning. Electric deviation correction. |
| SM | Double facer | set | 1 | The frame is 360 mm national standard channel steel, and the hot plate is 595 mm *16 pieces. The paper pressing part adopts a dense pressure roller design structure. Pneumatic lift. Temperature display, variable frequency motor. |
| NCBD | Slitter and creaser | Set | 1 | Tungsten alloy blade, five knives and eight lines. Electric knife adjustment, electric traverse. |
| NC-120 | NC CUT OFF | Set | 1 | Full AC servo control, energy storage brake, helical knife structure, oil-immersed gear transmission, 10.4-inch touch screen display. |
| DM | Straight stacker | Set | 1 | Two-stage frequency conversion conveying, automatic point stacking discharge, imported high-strength belt output. Paper output is standard with paper output tray. |
| ZQ | Steam system | set | 1 | Including pipeline valves, steam traps, instruments and other steam components in the equipment, the customer prepares the heat source and pipeline |
| Glue system | set | 1 |
