Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW

Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW

  • High Light

    Waste Stripping Flatbed Die Cutting Machine

    ,

    Flatbed Die Cutting Machine 11KW

    ,

    flat bed die cutter 4kw

  • Voltage
    220V/380V,380V(or Customization)
  • Condition
    New
  • Dimension(l*w*h)
    Customized
  • Type
    Die-cutting Machine
  • After-sales Service Provided
    Engineers Available To Service Machinery Video Live
  • Warranty
    1 Year
  • Computerized
    Yes
  • Power(w)
    4kw,11KW,5.5KW,10.5kw,20kw
  • Automatic Grade
    Semi-Automatic,Automatic
  • Driven Type
    Electric
  • Place of Origin
    CHINA
  • Brand Name
    Kingsun
  • Certification
    CE ISO
  • Model Number
    KSJ
  • Minimum Order Quantity
    1SET
  • Price
    Dollar 80000USD-18000USD
  • Delivery Time
    5-8weeks
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1 set 60per days

Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW

Auto Feed Paper Flat Bed Die Cutting Machine/cardboard packaging machine

Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 0

Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 1Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 2

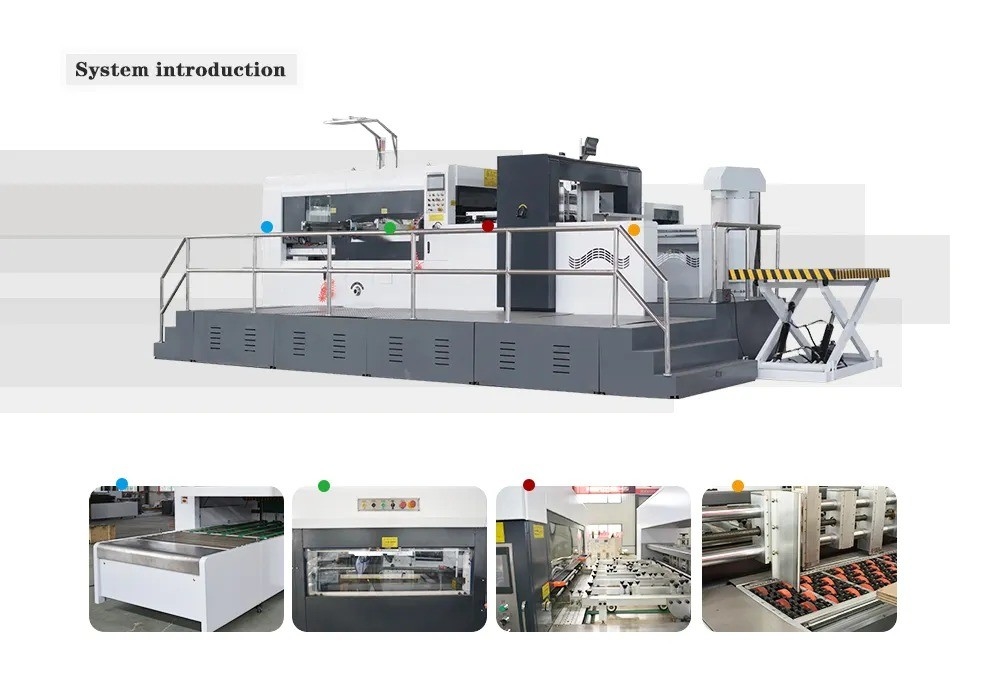

Feeding and Collecting Part



  • Equipped with lead edge feeder ,it can prevent the cardboard damage by the black wheels.



  • Independent servo actuator can assure the cardboard send to right position and avoid crash on the paper



  • The big power suction fan and the adjusted wind system work for 3-9mm corrugated box



  • The collecting parts ,there are two model : Auto delivery system and stack system.



Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 3






Feeding table



  • Adjustable brush wheels and pressing wheels to ensure precise position to enter into front and side lay



  • Advance push and pull lay of registration can assure the die cutting precision



  • Rikko light front lay detection system prevent the slanting paper move in main body



  • The lifting of the brush wheel frame is controlled by cylinder. Easy to operate.

Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 4






Diecutting part and Delivery system



  • Double action movement structure with upper and lower stripping frame facilitates die change



  • Male/female diecutter model are available for different carton



  • Match with the centerline registration system in diecutting area, there is a same system in the stripping section.Accurate positions can increase production efficiency

Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 5




Diecutting part and Delivery system



  • Diecutting chase fixed accurately by pneumatic lock system



  • Diecutting plate is putted in and out by air floating device



  • Electric clutch system of main chain can assure the chain steady when it is stopped at high speed



  • Main chain and assist chain is lubricated periodically controlled by PLC



  • Protection window of diecutting can hold the main body clean



  • Lightweight and durable aluminum alloy 9-piece gripper bars with chain of Renold UK ensure accurate

Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 6




Main body



  • Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI



  • Patented design shock absorption system can prolong the life of main body and increase the pressure



  • The intermittent gearbox can assure the accurate registration and decrease the gripper attack

Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 7






Automatic Flatbed Die Cutting Machine With Waste Stripping 4kw 11KW 8
