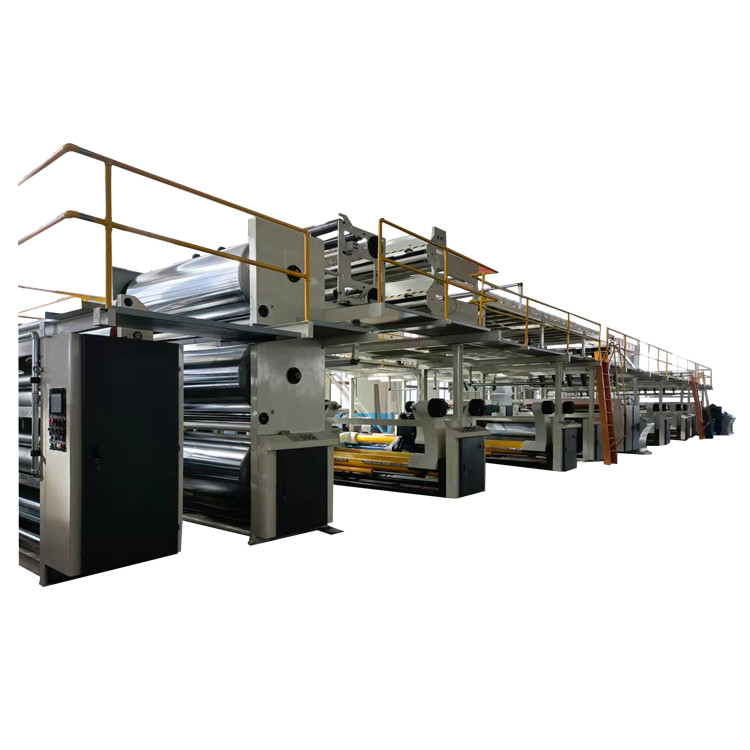

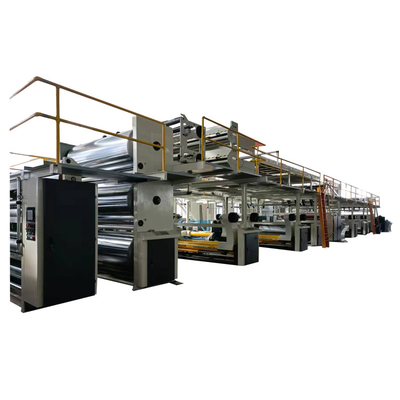

Packing Line Carton Box Packaging Corrugated Paperboard Making Machine
1. Brief introduction for Corrugated Paperboard Making Machine
Raw material is craft paper roll , finished product is 3ply 5 ply 7 ply corrugated paperboard .
7 ply corrugated paperboard making production line can make 7 ply , 5 ply and 3 ply
5 ply corrugated paperboard making production line can make 5 ply and 3 ply
3 ply corrugated paperboard making production line can make 3 ply
Size we can make 1400mm,1600mm,1800mm,2000mm,2200mm,2500mm , tell us the speed you want , then we can recommend you suitable production line accordingly
2. Corrugated Paperboard Making MachineMachine main structure
heavy duty conveying over the bridge
1)The main skeleton of this part is made of channel steel, I-steel, Angle steel and so on.
2) Both sides are equipped with safety guardrail and safety hermitage pedal, operation surface is equipped with safety escalator, to ensure the safety of staff and easy operation.
NC computer thin knife longitudinal indentation machine
Synchronous servo motor control knife row, row. Automatic reset. Precise size. Change order time 3-8 seconds. Two machines can be used to change the order immediately without slowing down. Store 999 groups of orders to realize automatic or manual change without shutdown.
Hydraulic mill roll stand

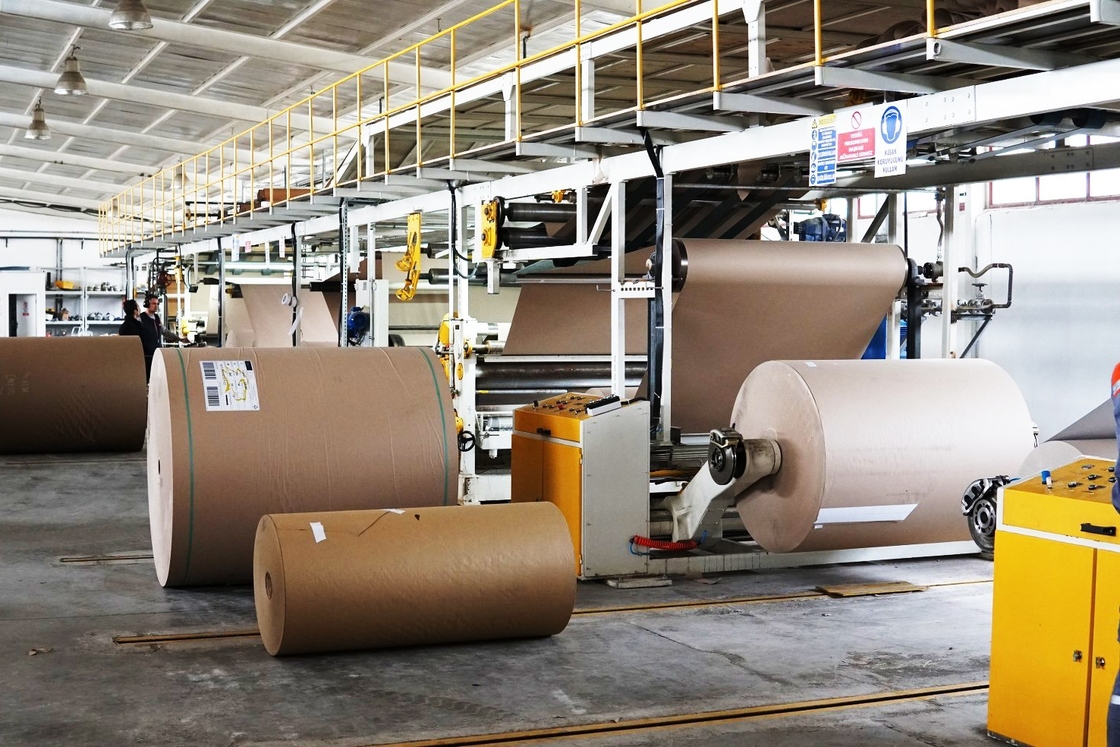

1)Mill roll stand to loading the craft paper roll
2) Clamping paper range: maximum 2200mm minimum 700mm clamping paper diameter: maximum ￠1500mm minimum ￠350mm 3)paper spindle diameter: ￠242mm air source working pressure (Mpa) : 0.4-- 0.8mpa
1)Working width: 2200mm
2) preheating roller diameter: ￠900mm wrapping Angle adjustment range: 360° rotating wrapping Angle axis diameter: ￠110mm×2 3)steam temperature: 150-180℃ steam pressure: 0.8-1.3mpa 4) Motor power: 370W Short-time (S2) working system
1)Main corrugated roller: ￠380mm (according to different corrugated type and different), pressure roller ￠384mm, preheating roller ￠400mm. 2) Corrugated roller is treated by spraying tungsten carbide.
Double side machine
The frame is made of 360 mm gb channel steel, 600 mm *16 chrome-plated hot plates, and 10 groups of contact plates. Pneumatic lift. PLC automatic control platen. Automatic deviation correction, temperature display, frequency conversion motor
Computer spiral knife cut machine
Full AC synchronous servo control, energy storage brake, spiral knife structure, helical gear transmission, lubricating oil pressure protection, 10.4 inch touch screen display.
3. Customer provided part
|Customer provided part
|1, steam heating system: recommended with 4000Kg/Hr steam boiler a set of pressure for 1.25mpa steam pipe.
|2. Air compressor, air pipe, glue conveying pipe.
|3. Power supply and wire are connected to the operating cabinet and line pipes.
|4, water sources, water pipelines, buckets, etc.
|5, water, electricity, gas foundation plane installation civil engineering.
|6, test paper, corn (potato) starch, industrial caustic soda, borax and other materials.
|7, equipment oil, lubricating oil, hydraulic oil, grease.
|8. Food and accommodation for installation and commissioning personnel. And provide installation workers to cooperate with the installation.
