Corrugated Carton Box 2.2kw Creasing And Die Cutting Machine

Corrugated Carton Box 2.2kw Creasing And Die Cutting Machine

  • High Light

    2.2kw Creasing And Die Cutting Machine

    ,

    Corrugated Creasing And Die Cutting Machine

  • Place of Origin
    CHINA,HEBEI
  • Brand Name
    kspack
  • Certification
    ISO,CE
  • Model Number
    ML
  • Minimum Order Quantity
    1set
  • Price
    5000-25000usd/set
  • Packaging Details
    wooden case
  • Delivery Time
    15-30days per month
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30sets/month

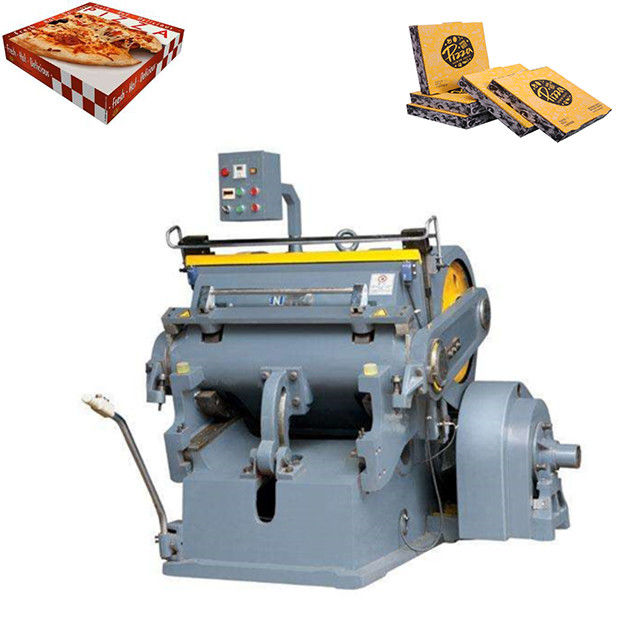

Corrugated Carton Box 2.2kw Creasing And Die Cutting Machine

corrugated carton box creasing and die cutter machinery



1.Functions and Characteristics:



1) Equip with four insurance parts and four functions. The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.

2) The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable.

3) Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil supplying,.

4) Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.



Model



Max,Rule Area



Workingspeed



Molor



weight



Overall Dimensions(L×W×H)

PYQ401C 750×520mm 28±2(strokes/min) 2.2kw 2000kg 1260×1350×1280mm
PYQ203D 930×670mm 23±2(strokes/min) 4.0kw 3000kg 1670×1670×1630mm
ML1100 1100×800mm 20±2(strokes/min) 5.5kw 4500kg 1900×1800×1700mm
ML1200 1200×830mm 20±2(strokes/min) 5.5kw 4800kg 1900×2000×1700mm
ML1300 1300×920mm 18±2(strokes/min) 5.5kw 5500kg 2000×2400×1800mm
ML1400 1400×1000mm 18±2(strokes/min) 5.5kw 6000kg 2400*2000*1800mm
ML1500 1500×1050mm 18±2(strokes/min) 5.5kw 7000kg 2000×2500×1930mm
ML1600 1600×1250mm 16±2(strokes/min) 11kw 11000kg 2170×2560×2230mm
ML1800 1800×1300mm 16±2(strokes/min) 15kw 13500kg 2240×2800×2130mm

Corrugated Carton Box 2.2kw Creasing And Die Cutting Machine 0

final products of machine

Corrugated Carton Box 2.2kw Creasing And Die Cutting Machine 1
