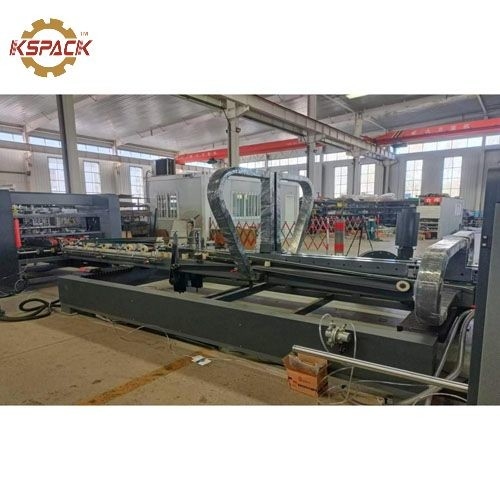

11.5KW Automatic Box Folder Gluer Machine 1200mm X 2400mm Max Sheet

Automatic Box Folder Gluer Machine 1200mm X 2400mm Max Sheet

Whole machine introduce

AFG Automatic folder gluer machine consist of three sections :

vacuum feeding section , glue and folding section ,counter and stacker section ,

PLC digital speed control ,Remote speed control Touch screen

control system for easy and Accurate operation.It can realize Automatic feeding, automatic folding and gluing, automatic counting, and automatic stacking output,Front and rear synchronous dual operation,Average speed is 120 m / min, the maximum speed can reach 160 m / min,With order storage memory function,Efficient energy conservation and environmental protection is our highest pursuit

Automatic bending and coating.

Applicable carton wide range, different sizes carton adjustment is simple and quick. 3.The machine runs smoothly and reliably, the packaging effect is firm and beautiful. 4.Equipment operation is simple and easy to maintain.

5.With a separate pre-pressure wheel, solve the printing press line bad problem effectively. automatically correct the carton straight angle, effectively correct scissors fork, fish tail and so on.

6.A separate correction system can effectively control the carton scissors.

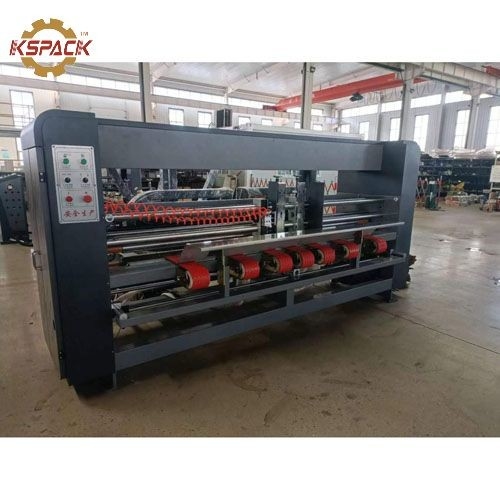

Product structure:

Instrument Control:

Easy touch screen opeation imput , whole machine adopt the plc computer programs controller , digital number operater , touch screen input the data , can be change the data, speed no need stop the machine , ,whole machine automatic supply the paper ,auto folder ,auto counter , auto stacker ,feed out , the speed 120m/min ,max speed 160m/min.

1.cardboard height adjustment structure,Choose high-quality steel , fast adjustment of a variety of box height and cardboard length.
2.Paper suction Belt selection of high-tech materials, tensile layer seamless connecting, gurantee the machine use not have fault
3.Paper feed suction motor, main rotating motor are selected from Taiwan's high-quality, high stability motor.
4.Choose high-grade electromagnetic clutch and electromagnetic brake system, so that the paper can be a single sheet or continuous operation, effective control cardboard waste. of the adjustment.

Glue coat and folder part

1.motor choose import brand , Stable performance, convenient speed, no noise pollution.
2.Folding part of the use of imported high friction, ultra-wear sp special materials made of seamless connecting conveyor belt, accurate and complete the automatic folding cardboard
3.Glue part choice high-quality stainless steel, even glue coat. save the glue .

4.Folding Department is equipped with double-track correction device, accurate and effective correction of cardboard crease line deviation, so that the entire carton to complete the most accurate folding.

1.motor choose import brand , Stable performance, convenient speed, no noise pollution.
2.Folding part of the use of imported high friction, ultra-wear sp special materials made of seamless connecting conveyor belt, accurate and complete the automatic folding cardboard
3.Glue part choice high-quality stainless steel, even glue coat. save the glue .

4.Folding Department is equipped with double-track correction device, accurate and effective correction of cardboard crease line deviation, so that the entire carton to complete the most accurate folding.

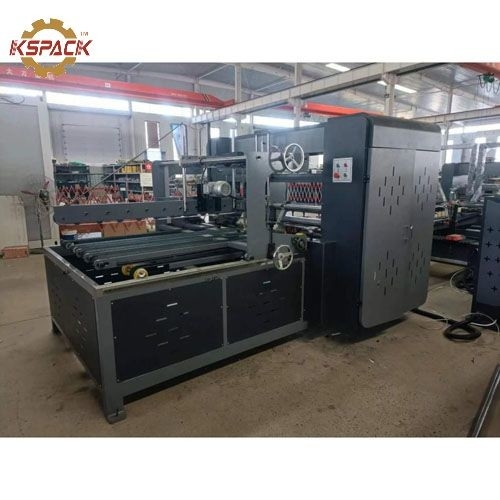

Correction and output part:

Automatic correction and stacking output have automatic counting, piled up neatly, stacking output, according to the customer demand can Set up product box can do how much output , and automatically force calibration the scissors and other non-standard carton forming.

1.The whole machine uses 380V AC, power 11.5KW, energy saving and high efficiency.
2. PLC computer components, frequency conversion components, electrical components are selected from high quality imported components.
3. The belt is made of imported circular seamless butt belt.
4. Bearings use internationally renowned brand TR bearings.
5. The screw screw, screw and nut are all made of 45# high-quality steel and quenched and processed.
