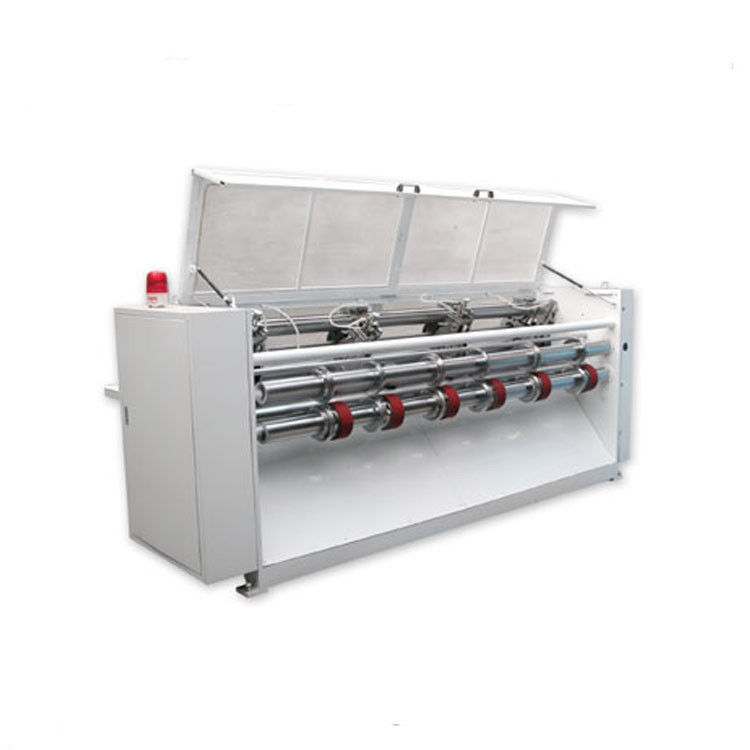

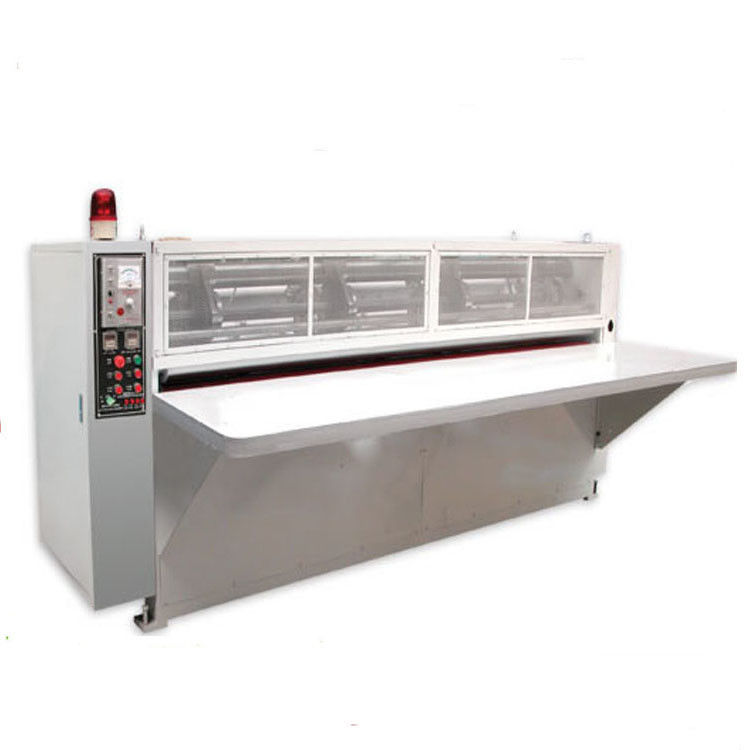

Quick Adjust Thin Blade Slitter Scorer Machine 4 Knives 6 Crease
1.Description:
This series of thin-knife slitting and creasing machine adopts thin-knife slitting, and the edge of the knife becomes sharper after being polished by the grinding wheel, so that the edge of the cardboard is smooth and tidy, and the phenomenon of flattening is less, which improves the appearance and overall quality of the cardboard, and is especially beneficial to the cardboard. processing. The cardboard printing in the subsequent process reduces waste and improves the quality of cartons.
The sharpening adopts manual and automatic switching, and the sharpening and stopping of the knife can be selected according to the time and the running speed of the cardboard. Keep the knife edge sharp to make the cut cardboard smooth and neat.
Adjust the knife clearance with electric and pneumatic automatic locking and fixing. The slitting width is manually adjusted, and the single-knife lifting structure is adopted, which can be handed over according to the number of cardboard slitting; the machine can adjust the cutting head caused by different wear and damage.
The paper is fed by rubber rollers, then slitting, the paper is placed on the rubber rollers, and the final indentation is formed. The depth of indentation is clear when the indentation is adopted in the subsequent process. Knives can be changed quickly. Using rubber to pull paper, superior to other similar machines.
2.Specifications:
| Spec | Data |
| Machine allows cardboard width (width) | 2300mm |
| The maximum mechanical speed: | 150 m / min |
| Paper Cutter | (according to user requirements increase or decrease) 4 pieces |
| pressure line Round: | (according to user requirements increase or decrease) 6 pairs |
| Minimum slitting width: | 140mm |
| Minimum pressure line width: | 30mm |
| outer diameter of paper thin blade: | 200mm |
| paper thin blade thickness: | 1.3mm (alloy) |
|
Main motor power: Fan power: |
5.5kw 3.4kw |
| Air pressure: | <0.4mpa |
| Machine dimensions: | 3400 × 2300 × 1500mm |
| Weight: | 1600kg |
| Min.Feeding: | (two plastic wheelbase) 320mm |
3.Feature Advantage:
Paperboard size adjust adopt screw rod adjust structure. One people operate, simple and quick.
Convenient adjustable stacking structure, can fit for every size paperboard and feeding paper stable and accurate.
Optional Configuration Lead edge feeder vacuum absorb big force of friction, long use life.
