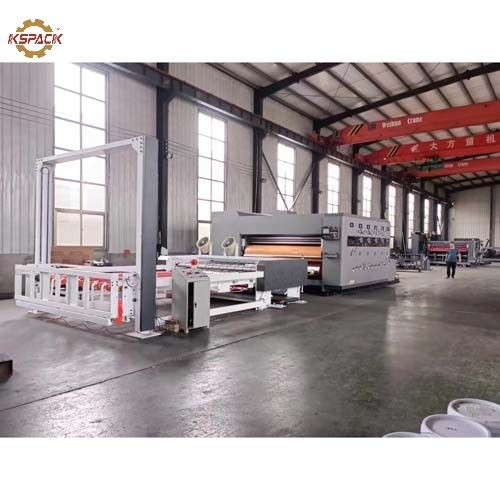

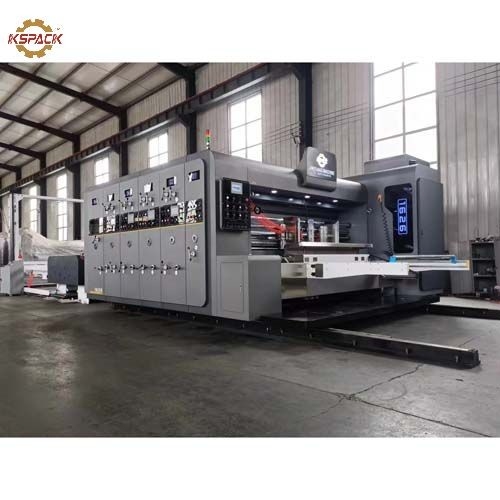

High Speed 4 Colors Corrugated Box Printing Machine Whith Stacker
Corrugated Box Printing Machine Description
Die Cutting Unit
1. The plate roll and pad roller are made of high quality steel, and the surface is polished and plated with hard chrome. Static and dynamic balance correction, good running stability.
2. Pneumatically controlled die gap and automatic detachment die cutter device to protect the rubber pad and prolong the service life of the rubber pad.
3. The rubber roller is equipped with a mechanical cam type lateral 58mm swimming device to extend the rubber pad.
Life expectancy.
4. Phase adjustment device (inner planetary gear structure, large torque, small transmission gap, 8-9 tooth teeth at the same time, each gear tooth load is extremely light, so the mechanical wear of the gear is very small, and the transmission accuracy is maintained for a long time. Extend the service life.) Special products.
5. The die-cut phase is controlled by text display, which can realize electric digital 360-degree adjustment, and can be adjusted accurately (running and stopping).
The speed difference compensation device can control the linear speed of the surface of the rubber pad roller (the outer diameter of the rubber pad is continuously reduced during use). The compensation device can make the linear speed of the rubber roller roller completely controlled.
Auto Stacker part :
1, the paper arm can be manuallu y or automatically operated, with insurance institutions to prevent the paper arm suddenly fall, to ensure the safety of operators.
2, bed lift strong chain driven.
3, stack height 1600mm.
4, bed with the cardboard heap height automatically adjust the tilt height, lift motor, with brake function, bed to keep a fixed position will not decline.
5, then appropriate to widen the cardboard.
Auto vibrator part :
This machine is match equipment with middle and high speed rotary die cutter machine,it structure easy ,operation convenient , waster paper clearance effect well , economic, during the course of the working ,reduced the worker force , that is ideal equipment of the carton industry.
This machine include the paper feed part , collect waste paper part ,and walk lock system
paper feed part : that is transmit roller with PU round belt made of the paper feeding , during the paper feeding, there have two vibration rod , let the board vibrate on the belt , so get the result of clear the waste paper .
Waste paper collect part : this part is the let the waste paper feed out belt ,then use other belt feed the paper to side of the machine , finished the collect waste and feed waste paper .
Walk locking part : there include four guide wheel ,let the machine depart and lock with the rotary die cutter , operate easy , lock part have pneumatic and lock cylinder ,let it with rotary die cutter fix.
Corrugated Box Printing Machine Specifications
| Project unit type | 950*1950mm |
| Wall panel inside width mm | 950*1950mm |
| Maximum paper area mm | 950*1950mm |
| Minimum paper area mm | 360*640mm for slotter box Any size for die cutter box |
| Effective printing mm | 950*1950mm |
| Printing plate thickness mm | 3-8 |
| Maximum speed Sheets/min | 180 |
| Economic speed Sheets/min | 140-150 |
| Main motor power KW | 4.0 |
| Color registration accuracy mm | Four-color ±1 |
| Slotting accuracy mm | ±1.5 |
| Wall panel thickness mm | 40 |
