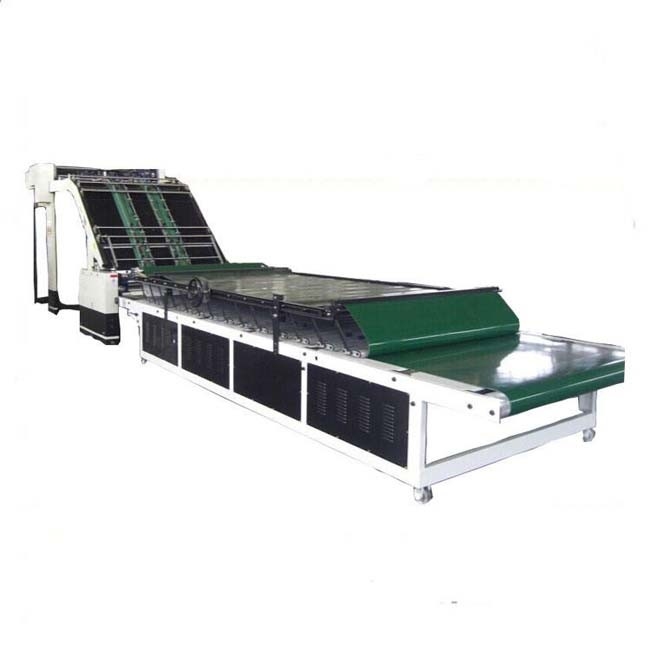

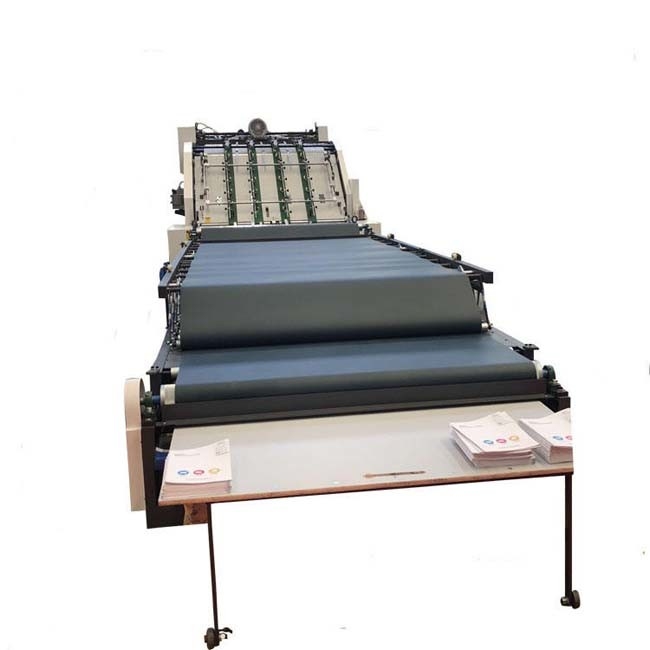

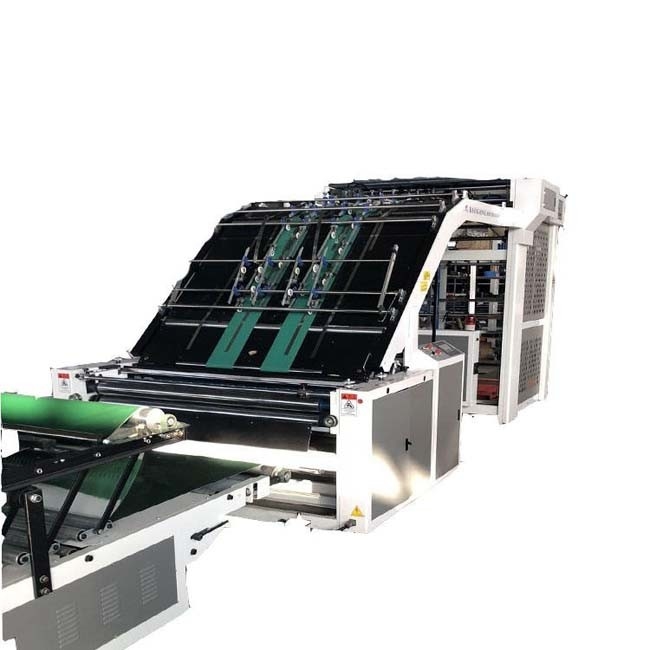

Fully Automatic Intelligent High Speed Flute Laminator Machine
Flute Laminator Machine Description
Flute Laminator Machine Function
The machine adopts unique pressure spring front gauge design, which effectively reduces mechanical failure rate and ensures accurate positioning with intelligent control. The machine adopts frequency conversion to regulate speed. PLC centralized control, module conversion, operation control standard. Double servo control is adopted to realize the timeliness and accuracy of the base paper to the front gauge, so as to ensure the accuracy of the machine under the operating condition. After balancing treatment and testing, the steel roller, coupled with the tightening assembly process, effectively improves the mechanical stability. In addition, when the main transmission is driven by the timing belt, the bottom paper part directly absorbs the air and delivers the paper, effectively improving the operating accuracy and speed of the machine. Adopt the page control system to automatically recycle the glue, which greatly reduces the labor intensity. The machine adopts all ISO9001 standard inspection of materials, with high quality and solid durability. Key parts such as bearings are imported. Independently develop a powerful FEIDA paper with precoded paper device to reduce downtime and improve work efficiency. The machine is suitable for 150-450gsm paper, A B C D E F wave and three and five layers cardboard (the maximum thickness is less than 10mm).
Flute Laminator Machine Technical Parameter:
| 产品名称 Product Name | BZJ Series Automatic Paper Mounting Machine |
| 规格型号 Specifications | BZJ-1450L8 |
| 最大覆合尺寸 Maximum Cladding Size | 1400*1450mm |
| 最小覆合尺寸 Minimum Cladding Size | 380mm*380mm |
| 机械速度 Mechanical Speed | 0-140/min(400mm-800mm/8000pics,900mm以上/5000pics) |
| 功率 Power | 15kw |
|
外形尺寸:(长*宽*高) Dimensions :(Length * Width *Height) |
12700mm*2300mm*2655mm |
| 总重量 The Total Weight | 5T |
|
纸张要求 The Paper Requirements |
底纸:最小基重300g/㎡,最大基重800g/㎡,最大厚度:10mm Base paper: minimum basis weight of 300 g / ㎡, the largest base of 800 g / ㎡, the biggest thickness: 10 mm 面纸:最小基重150g/㎡,最大基重800g/㎡ Tissue: minimum basis weight of 150 g / ㎡, the largest base of 800 g / ㎡ |
