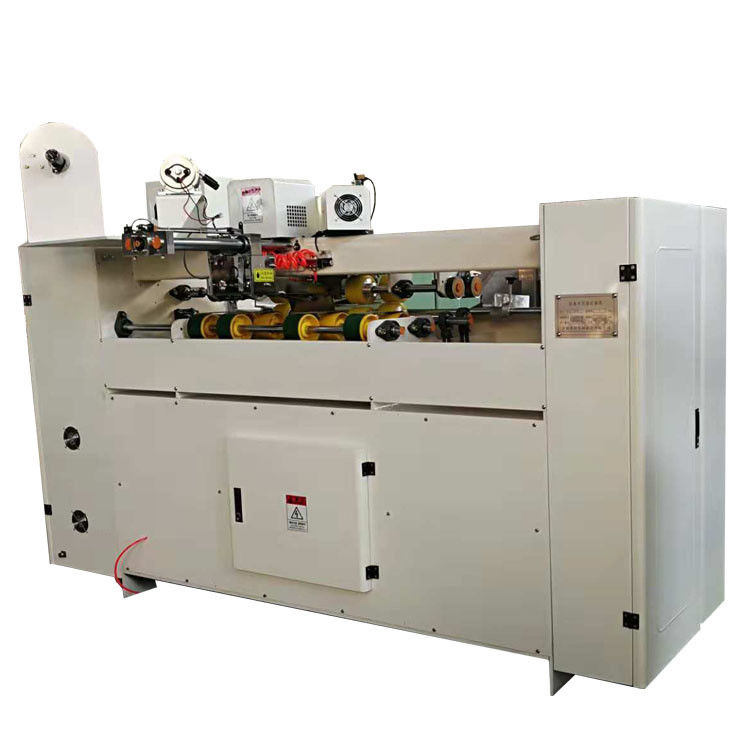

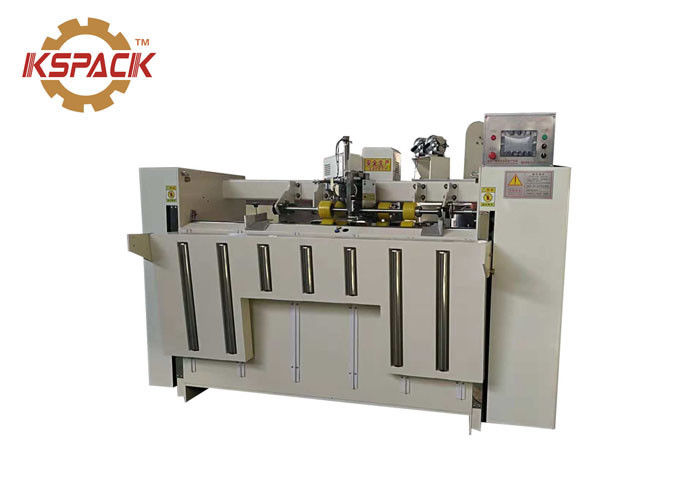

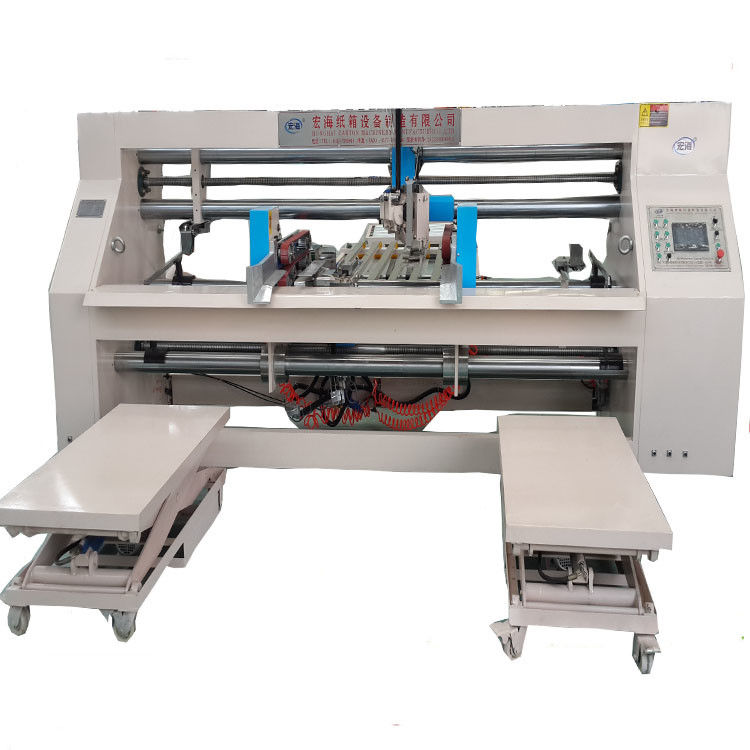

Manual Feed Semi Automatic Stitching Machine For Corrugated Boxes

Seim Auto Carton Box Stitching Machine Double Pices

Carton Box Stitching Machine Main Part And Function Introduction :

1. Schneider france original import four servo motor drive ,high precise with few mechnical driving part ,reduce the machine damage
2.The whole machine control system use the omron plc control system
3.The contactor in the control box adopt simense brand
4.Displayand circuit breaker adopt schneider ,pohto electric switch and proximity switch adopt omron branch .
5.Bottom mould and blade adopt japan tungsten steel
6.Whole stiching head adopt special steel to make , computer digital processed
7.Change the size only need one minute to finish,same as changing the stiching distance
8.Can stich box with lid or box no lid ( when customer need the stiching no lid box must special order )
9.With automatic counting function in the back part ,the finished carton can be delivery to the end by pile ( as the setting number 1-99) ,it is convinnet to strap
10 Mechanic speed :600nail/min.
11. Stiching distance 30-150mm, can be adjustabel .
12 Two funcion in one machine , can stich single ,double carton ,not normal carton 13.Size adopt whole electric type to control,changing size only need 2-3 mins.
13.Can stich strengthen wire , single stapler ,double line stich, finish on one time 15.Feeding part can automatic count ,finsiehd product send out wait strap.
14.Sutable for midium and samll type carton ,stich quick and easy.
15.The computer set and automatic adjust the distance of stiching ,the stich distance is 20-120mm can be ajusted
16.Adopt computer screen to show the damage instruction.
17.No lid box can be stich( special order ).
18.Suitable for 3 ply 5 ply 7ply (when use it on 7ply ,customer should order i advance).
19.Automatic wire feed system ,no wire alarm, 20kg big dics wire ,can save time.
20.Whole machine electrical part adopt Isolated Transformer.

Carton Box Stitching Machine Specification:

Our Company

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
