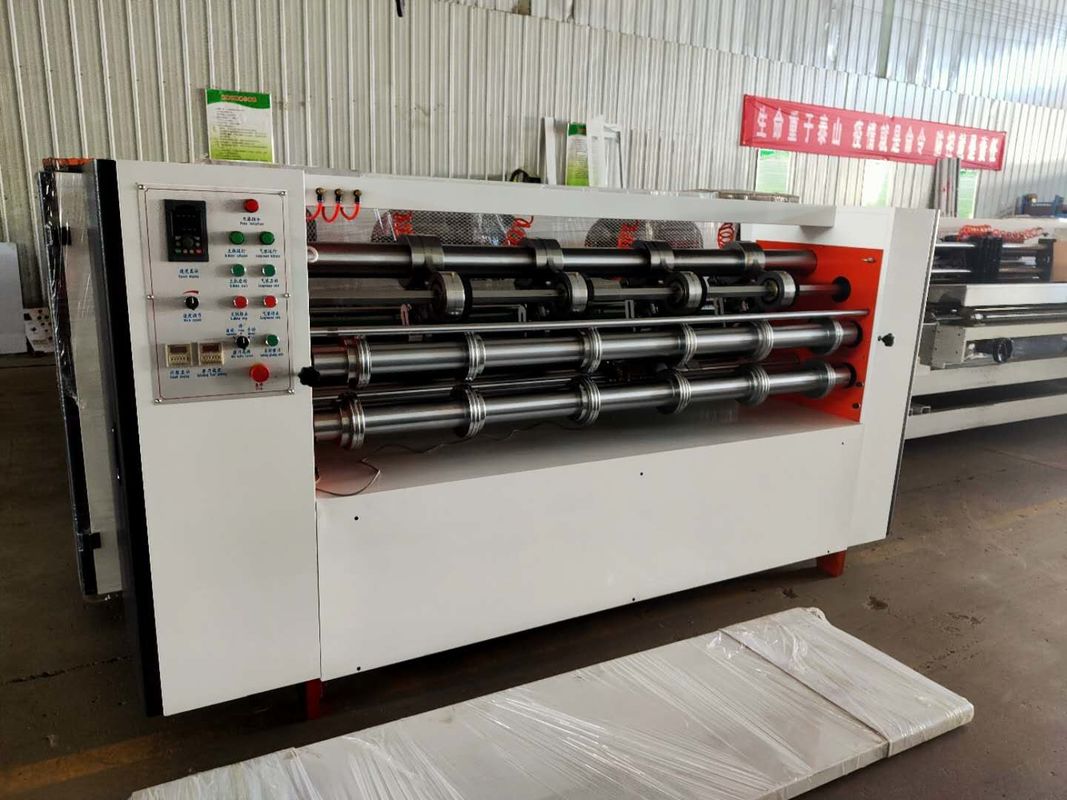

Flute Slitting And Creasing Machine For Corrugated Box Paperboard

Flute Slitting And Creasing Machine For Corrugated Box Paperboard
large.img.alt
Flute Slitting And Creasing Machine For Corrugated Box Paperboard Flute Slitting And Creasing Machine For Corrugated Box Paperboard

Large Image :  Flute Slitting And Creasing Machine For Corrugated Box Paperboard

Product Details:
Place of Origin: cangzhou ,hebei ,china
Brand Name: kspack
Certification: ISO,CE
Model Number: BFY
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 4000-8000usd/set
Packaging Details: wooden case
Delivery Time: 20days after getting deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50sets per month

Flute Slitting And Creasing Machine For Corrugated Box Paperboard

Description
Name: Flute Board Slitting And Creasing Machine Speed: 0-200m/min
Creasing Wheel: Electric Adjust Blade Adjust: Electric And Manual
Feeding Model: Manual Feeding
High Light:

flute slitting and creasing machine

,

paperboard slitting and creasing machine

,

corrugated box slitting and creasing machine

corrugated box slitting machine flute paperboard slitting and creasing machine



Function and Features



1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.



2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.



3. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.



4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.



5. Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working,



improve work efficiency.



6. Make all shafts, rollers and wallboard thicker to 38mm for machine size bigger than 3m.



7. All the chain wheels material is #45 steel.



8. Main motor is 7.5kw excitation motor for machine size bigger than 3m.



9. Blade & scorer both move by electric is optional for your choosing.



Technical parameters



TYPE BFY-1800 BFY-2000 BFY-2500 BFY-2700 BFY-3000 BFY-3500
Effective width 1600mm 1800mm 2300mm 2500mm 2800mm 3300mm
Speed 140m/min 140m/min 140m/min 140m/min 120m/min 100m/min
Total power 3kw 4kw 5kw 5kw 5kw 7.5kw
Min. Slitter-spacing 120mm 120mm 120kw 120kw 120mm 120mm
Min. Score-spacing 30mm 30mm 30mm 30mm 30mm 30mm
Min. Paper length 260mm 260mm 260mm 260mm 260mm 260mm
Dimensions L x W x H (mm) 2440*770*1350 2640*770*1350 3140*770*1350 3340*770*1350 3640*770*1350 4200*800*1700
