2 Ply 3 Ply 5 Ply Single Facer Corrugated Machine Paper Board Making

2 Ply 3 Ply 5 Ply Single Facer Corrugated Machine Paper Board Making

  • High Light

    oil heating single facer corrugated machine

    ,

    3 ply single facer corrugated machine

    ,

    2 ply single facer machine

  • Name
    Corrugated Paper Board Machine
  • Ply Number
    2 Ply Paper
  • Heating Type
    Eelctrcial Heating , Oil Heating , Steam Heating
  • Size
    2000
  • Material
    Corruagted Board
  • Roller Material
    Alloy Steel Roller
  • Flute Type
    B Or E
  • Color
    Orange
  • Voltage
    Client Reuqire
  • Power
    10 Kw
  • Place of Origin
    China
  • Brand Name
    KSPACK
  • Certification
    CE ISD
  • Model Number
    B group
  • Minimum Order Quantity
    1
  • Price
    14500 USD/Set
  • Packaging Details
    wooden case
  • Delivery Time
    30 work days
  • Payment Terms
    L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    10 Set /Month

2 Ply 3 Ply 5 Ply Single Facer Corrugated Machine Paper Board Making

2 ply 3 ply 5ply single facer corrugated paper board making machine



1.Introduction of corrugated board making machine



1. Adopt the cover style adsorb structure ,match with high pressure winder , winder match with quiter ,air and electrical control centrated in the operation work table, distance with main machine1.5 m .main machine operation side all have the cover.

2. Machine seat with wallboard all case iron , the thickness of wall board 130mm ,adopt the alone gearbox ,and gimbal transmission

3.Corrugated roller adopt 48 crmo ,alloy steel ,after laser hardening

Surface grinding , corugated roller diameter 280mm ,surface hardness HRC60 ,main part bear of the corrugated roller ,and pressure roller with stand high temperature

4.Pressure roller diameter324mm ,surfacer grinding and chormeplated ,cylinder control move up and down ,material medium carbon steel 45#,hardening and tempering (with cushioning device)

5. Pneumatic control supply or reback the glue ,coating glue roller diameter 215mm ,surface after grinding ,carved 25 line steel pit anilox , then chorme plated , even glue roller after grinding then chorm plated .

6. Corrugated roller ,pressure roller material suppled by zhongyuan tegang, corrugated roller single side have 0.15mm middle height, pressure roller single side 0.075mm middle height. Add the limit device,

Press clycinder use diameter 160mm

Preheater diameter 320mm ,use the steamless steel ,connect by steel soft tube



2. Technical of corrugated board making machine



1,work width:1400mm

2,operate direction :left or right ( according the cletns workshop design)

3,design speed :80m/min

4,temperature scale:160—200℃

5,air compressor:0.4—0.9Mpa

6,stear pressure:0.8—1.3Mpa

7,corruated style (Uvstye or UVVstyle) : U



3. Adbantage of corrugated board making machine

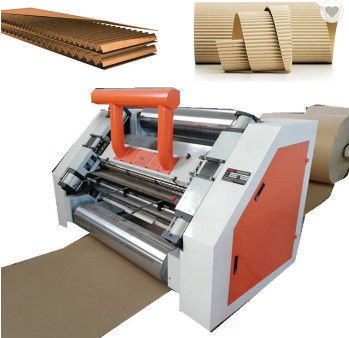

SF-280 vacuum single face machine

Make craft paper to 2 ply

Size :1400mm

Real alloy steel roller

Adjust glue by electrical

Chain transport

Electrical heating

Inverter motor

Schneider Electric

HRB bearing





4. Photos of corruagted board making machine
