new design wall type fly insect pest control hot melt glue coating traps board making machine
Advantage :
1.wall type
2.quickly change roll
3.save time of debug and operation
4.high speed up to 20000pcs
5.multifunction for coating,add release paper ,slitting,punching hole ,rewinding
6.adpot new technology for punching device
7.more automatic
8.save work labour
9.save work space
Spec :
1.double side glue or single side glue option
2. make slice , roll can option
3.punching hole device ,slitting device , rewinder device option
4. wall type
| Item | Spec |
| Motor | 380V |
| Power | 15KW |
| Max Coating width | 400mm,can make special size |
| Coating glue sides | double sides |
| Glue tank | 80kg |
| Speed | 20000pcs/H |
| Yellow paper roller max width | 450mm |
| Release paper roller max width | 450mm |
Final product:

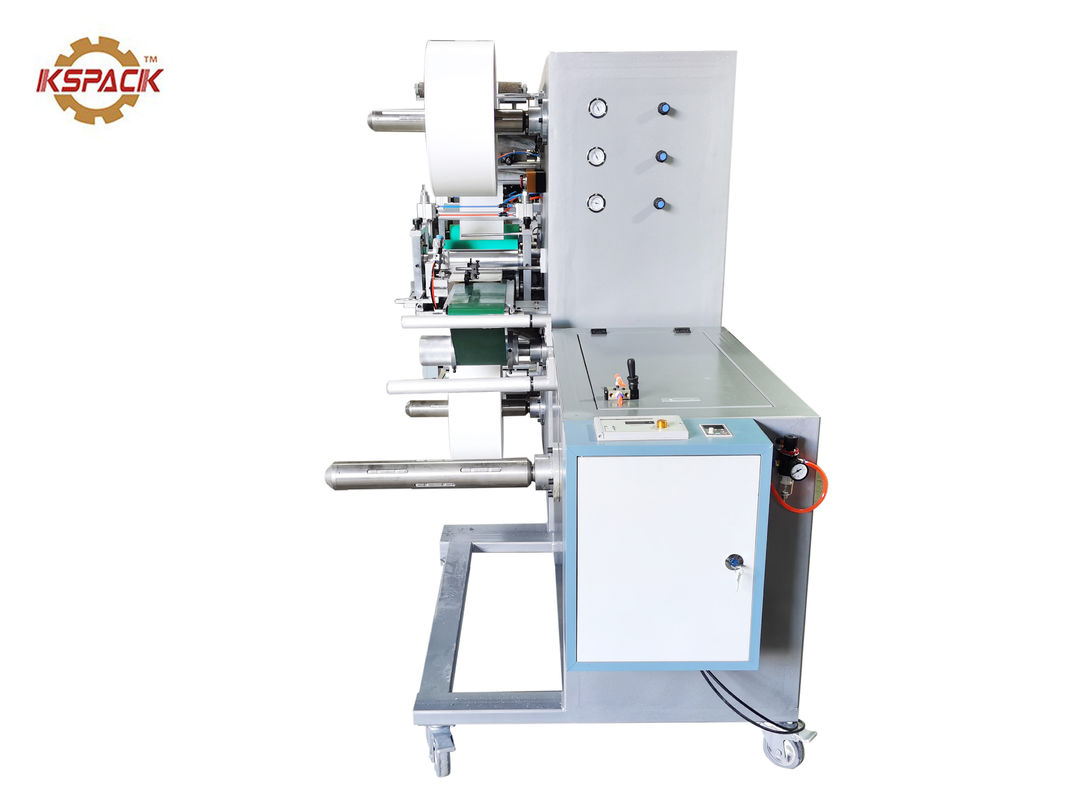

machine photo:
