Carton Box Stapler 2000mm Semi Auto Stitching Machine

Carton Box Stapler 2000mm Semi Auto Stitching Machine

  • High Light

    2000mm semi auto stitching machine

    ,

    corrugated semi auto stitching machine

  • Product Name
    Semi Auto Stitching Machine
  • Machine Function
    Stitching
  • Size
    2000mm
  • Automatic Grade
    Semi Automatic
  • Weight
    2T
  • Machine Color
    Customized
  • Place of Origin
    China Hebei
  • Brand Name
    Kingsun
  • Certification
    CE
  • Model Number
    KS-2000
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wrapped in plastic film and placed in wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    5 Set 30 per days

Carton Box Stapler 2000mm Semi Auto Stitching Machine



Carton box stapler semi auto stitching machine for PP corrugated Hollow board box making



Semi auto stitching machine for PP corrugated Hollow board box making



1) Mitsubishi Japan double servo drive,precision accuracy,mechanical transmission part is reduced,which can effectively reduce the failure rate of the machinery.

2) Nail box machine the whole control system adopts OMRON PLC control system.

3) The nail box machine control box contactor used in Germany Siemens brand

4) The relay circuit breaker using French brand Schneider,photoelectric and proximityswitch with Japan’s OMRON brand.

5) The bottom die blade adopts Japanese tungsten steel production(wear)

6) The whole set of nail heads are made of Taiwan original parts, and the machine head has longer service life.

7) The transform carton size and adjusting nail carton from just one minute can be completed,greatly saves time and is convenient to operate.

8) The automatic nail box machine after the paragraph with the function of automatic counting,finished cartons can be set according to the number (2-99)sub stack sent to the conveying machinery terminal, convenient bundling.

9) The machine speed:600 nails per minute.

10)The nail spacing:30-120mm adjustable



Stitching machine characters



Spec

SDJ-2000D

(A+B)* (mm) Max.paper size

4000

(A+B)* (mm) Mini paper size

980

mm Max carton length

1880

 A mm Min carton length

370

 B mm Max carton width

1630

 B mm Min carton width

120

(C+D+C) (mm) Max paper height

2500

(C+D+C) (mm) Min rock cover

360

(mm) Max rock cover

460

 C(mm) Min paper height

80

 D(mm) Max high

2000

D(mm) Min high

200

(mm) MAX width of the tongue

40

 mm Nailing distance

30-150

 mm Feeding height

900





Finished carton box pictures made by our Stitching machine



Carton Box Stapler 2000mm Semi Auto Stitching Machine 0

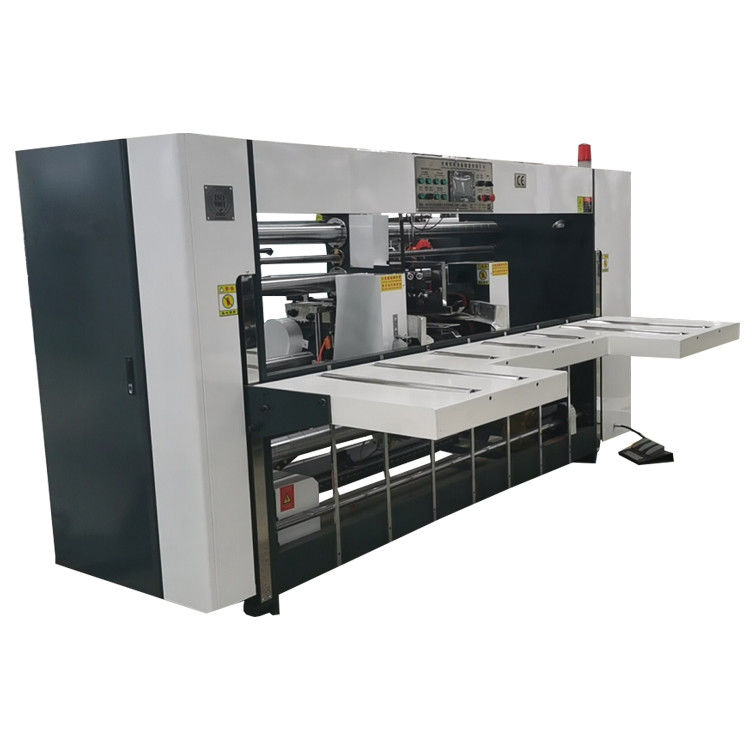

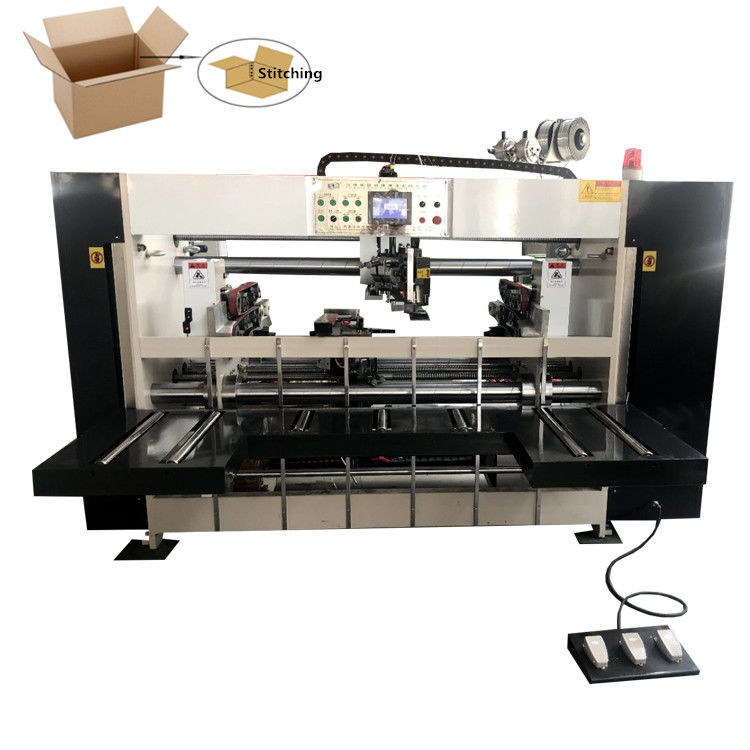

 Semi auto Stitching machine pictures



Carton Box Stapler 2000mm Semi Auto Stitching Machine 1
