Carton Box Folder Gluer Machine Adjustable Distance With Two Baffles

China Carton Box Folder Gluer Machine Adjustable Distance With Two Baffles supplier
Carton Box Folder Gluer Machine Adjustable Distance With Two Baffles supplier Carton Box Folder Gluer Machine Adjustable Distance With Two Baffles supplier

Large Image :  Carton Box Folder Gluer Machine Adjustable Distance With Two Baffles

Product Details:

Place of Origin: China Hebei
Brand Name: Kingsun
Certification: CE
Model Number: KSHG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wrapped in plastic film and placed in wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2 Set 40 per days
Contact Now
Detailed Product Description
Producti Name: Carton Box Automatic Pre-Fold And Crash Lock Bottom Folder Gluer Machine Usage: Small Box Forming Machine
Weight: 3000kg Automatization: Automatic
Box Style: Lock Bottom Box Type: KSHG900

Carton Box Automatic Pre-Fold And Crash Lock Bottom Folder Gluer Machine

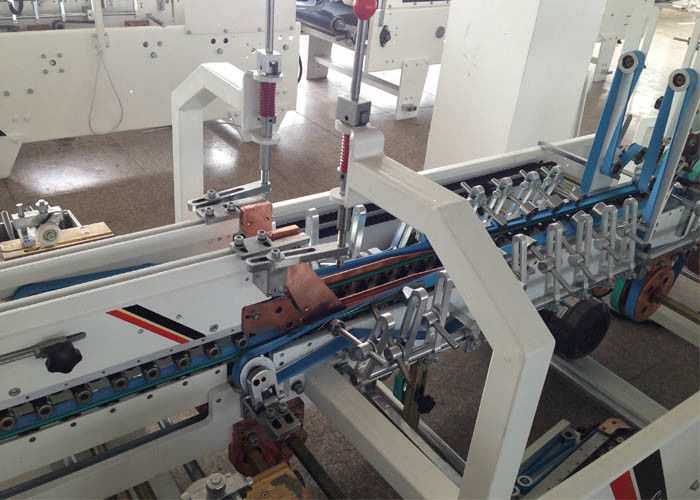

A. Adjust the distances between twp baffles according to the paper sheet width. First loosen the adjustable handle on the two baffles, put the paper sheets on the middle position of the paper sending table, move the two baffles approach towards the paper sheets, at the end adjust the two baffles and paper sheet both sides in parallel and remain a few space so as to let the paper sheets move in horizontal.
B. It’s necessary to carry out the adjustment to the paper dividing gague position according to the different size of the paper sheets needed to be pasted. In general the two paper dividing gague can be distributed evenly at the between of two baffles, the front and behind distances should be proper. When adjusting, only loosen the adjustable handle shown as Fig. 2, then move the slide block on the beam to left and right and paper dividing gague to front and behind, so as to make the paper dividing gague meet the desired position and then tighten the handle. Meanwhile, determine the conveying belt root number and make sure the paper sheets in level and tidy.
C. Adjust the interval δ between the paper dividing gague and conveying belt according to the paper sheet thickness. In general δ is the thickness of a piece paper. Adjustment method: Rotate the star-shape handwheel upward or downward, which can make the paper dividing gague move up and down so as to change the interval sizes.

Adjust the fold box width according to the width size of fold box paper sheet. Only need to rotate the handwheel according to the width shown as Fig. IV to make the screw rod rotate, because the front and behind screw rods are connected with the chain, the two main plates will move in parallel at the same time while rotating the handwheel. After the two main plates reach the desired fold box width, the start the machine to have a trial and carry out the detail adjustment to the various fold box wheel, conveying belt etc. Finally reach the purpose that the paper sheets can pass successfully and the fold box position can be correct and have an enough adhesive force.

(3) Pre-fold part:

For the convenience to open the straight line box, the two pressed trace parts without folded need to pre-fold. Regarding the box needed to pre-fold, mount and adjust the pre-fold properly. The box outputs from the automatic feeding device (paper feeding part) and then enters the pre-fold device, In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree and 90 degree. The second fold and the fourth fold can be molded in 180 degree, the special design is also available. The pre-folded paper box opens very easily on automatic packer,especially the medicine box

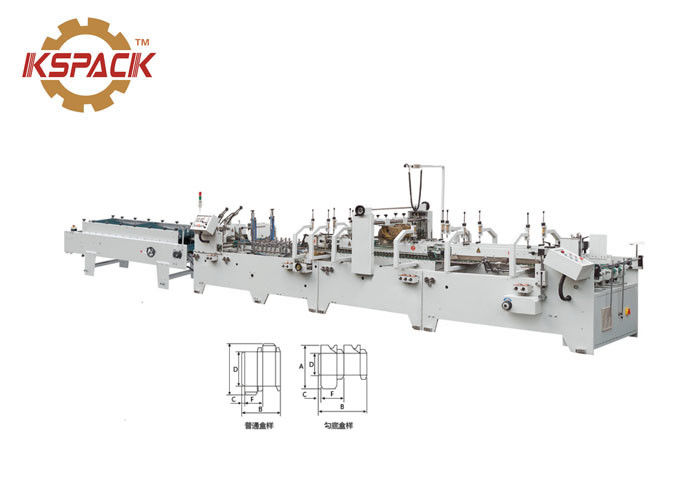

6. Paste box size
SHH-800AG

Type of boxex Amax Amin Bmax Bmin Cmin Dmin Fmin
No-edged bottom box 700mm 700mm 620mm 110mm 8mm 70mm 51mm
Edges bottom box 700mm 160mm 570mm 180mm 9mm 90mm 85mm


SHH-1200AG


Type of boxex Amax Amin Bmax Bmin Cmin Dmin Fmin
No-edged bottom box 700mm 110mm 840mm 110mm 8mm 70mm 51mm
Edges bottom box 700mm 160mm 790mm 180mm 9mm 90mm 85mm



Carton Box Folder Gluer Machine Adjustable Distance With Two Baffles
