Corrugated Paper Flute Laminating Machine , Vacuum Laminating Machine

Corrugated Paper Flute Laminating Machine , Vacuum Laminating Machine

  • High Light

    vacuum laminating machine

    ,

    laminate pressing machine

  • Name
    Vacuum Laminating Machine
  • Min Laminator Size
    360mm*360mm
  • Speed
    0-60m/min
  • Machine Size
    8.8m*1.95m*1.5m
  • Certificate
    CE ISO
  • Staff
    More Than 100
  • Place of Origin
    Hebei Province, China
  • Brand Name
    kspack
  • Certification
    CE ISO
  • Model Number
    TMB
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    in skin , in carton , in container
  • Delivery Time
    40-60 days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    10 set per month

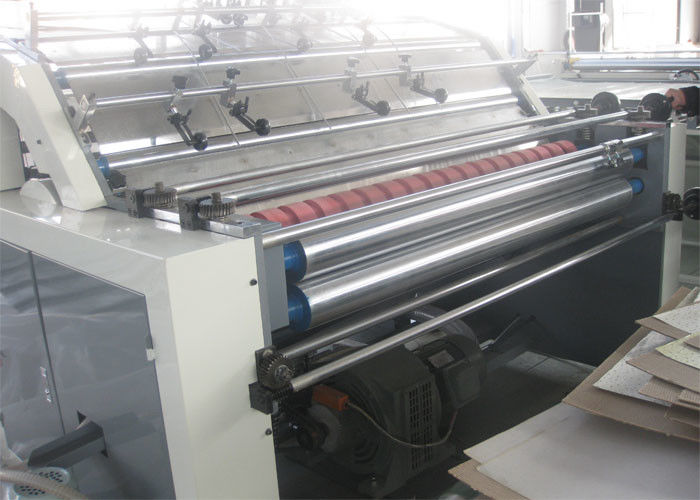

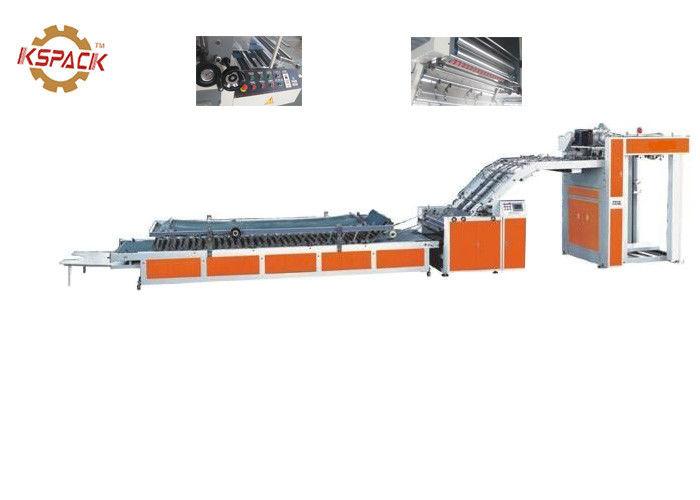

Corrugated Paper Flute Laminating Machine , Vacuum Laminating Machine

Corrugated paper flute laminating machine , vacuum laminating machine



The laminating machine is also called the laminating machine or the laminating machine. It is used for the bonding of pre-printed color printing paper and corrugated board. It is an important supporting equipment for the production of pre-printed carton, and the production efficiency and quality of corrugated board processing. Has a certain impact. With the continuous development of the social economy, the application of pre-printed cartons is more and more extensive, the structure of the laminating machine is becoming more diversified and automated, and the manufacturing technology and performance are becoming more mature and advanced. Due to the different structure and performance of the laminating machine, the effect of the corrugated board and the paper sheet is also very different. Therefore, the correct purchase and use of the laminating machine is an important part of improving the production efficiency and quality of the carton.



features

1.automatic laminating machine are the fourth-generation products of back push style, the machine have advantage of easy operation, convenient maintenance, high speed, low noise, and high accuracy. it will help you to gain the power in the market improved parts and electrical components from japan and germany, guarantee the quality and use life.



2.timing belt drive of the machine is mainly imported from japan, . timing belt has soft and tough, durable wear and heat resistance characteristics to ensure the accuracy of the machine precision fit.



3.adopt the high-tech control system, supply the glue by automatic when the machine working, match with the recyclable gluing system, glue quantity can adjust according to the different of the paperboard, it make the glue evenly on the paperboard, this system ensures glue saving with better lamination quality



4.suitable for lamination of corrugated paperboard to cardboard ,and cardboard to cardboard.automatic feeding bottom sheet paperboard and face paperboard.





Model TM1300A TM1450A TM1600A
Max laminator size 1300X1300 1450X1300 1600X1300
Min laminator size 450X450mm 350X350 350X350
Speed 0-45m/min 0-45m/min 0-45m/min
Power 4.5kw 4.5 4.5
Size of machine 7.8X1.9X1.1M 7.8X2.05X1.1M 7.8X2.2X1.1
Weight 2 2 2.2



main electric components for kstm-1300 automatic flute laminator



no. name specification manufacturer remarks
1 contactor lc1-d0910 schneider
2 stabilized voltage supply s-250-24 meanwell,taiwan
3 plc fx1n-60mt mitsubishi, japan
4 plc extension fx2n-2da mitsubishi, japan
5 approach switch pm12-02n fotek, taiwan
6 vari-speed drive fr-e540-2.2k mitsubishi, japan
7 photoelectric switch e2r-10n fotek, taiwan
8 encoder e6b2-cwe6c omron, japan
9 thermal relay lr2-d1310n schneider
10 touch screen mt506s eview, taiwan
11 step motor 2s86q-030b8 kinco, shenzhen
12 step drive 2m1160 kinco, shenzhen
