Paper Glue Machine , Manual Gluing Machine For Corrugated Paperboard Pasting

China Paper Glue Machine , Manual Gluing Machine For Corrugated Paperboard Pasting supplier
Paper Glue Machine , Manual Gluing Machine For Corrugated Paperboard Pasting supplier Paper Glue Machine , Manual Gluing Machine For Corrugated Paperboard Pasting supplier

Large Image :  Paper Glue Machine , Manual Gluing Machine For Corrugated Paperboard Pasting

Product Details:

Place of Origin: China (mainland)
Brand Name: KS
Certification: CE,ISO
Model Number: KS1600

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: Negotiable
Packaging Details: Machine corvered with plastic sheet , packed in wooden case
Delivery Time: 3 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 Sets per month
Contact Now
Detailed Product Description
Item: Paper Glue Machine Application Paper: Corrugated Paper
Speed: 0-25M/min Max Glue Thickness: 300g
Voltage: 380V/220V Machine Main Body: High Quality Steel Welded



Paper Glue Machine , Manual Gluing Machine For Corrugated Paperboard Pasting





1.Main characters for Gluing machine



The BJ series of sheet pasting machine is a kind of gum mounting used to produce every kind of corrugated paperboard ,this machine can mount the gum on the single and double sides of the corrugated paper with plank paper into the corrugated paperboard ,the gum mounting role rot the machine has chosen the superior quality seamless steel pipe as its material and has the characteristics such as wear –resisting ,long using life and so on.





2.Gluing machine specification



Model Passing paper size Paper thickness Speed Machine Size
BJ-1600 1600mm 18mm 80m/min 2200×400×1500
BJ-1800 1800mm 18mm 80m/min 2400×400×1500
BJ-2000 2000mm 18mm 80m/min 2600×400×1500
BJ-2200 2200mm 18mm 80m/min 2800×400×1500
BJ-2500 2500mm 18mm 80m/min 3100×400×1500





3.How to adjust the glue thickness ?



Adjust the handle (one on each side) , rotated to move the rubber roller back and forth. The gap between the rubber roller and the upper rubber roller is changed to obtain a satisfactory thickness of the rubber layer, and the adjustment range is between 0.03 and 0.05 mm.

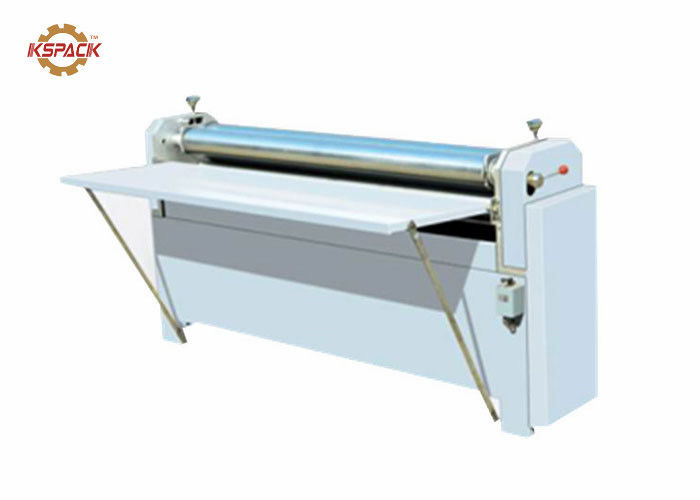

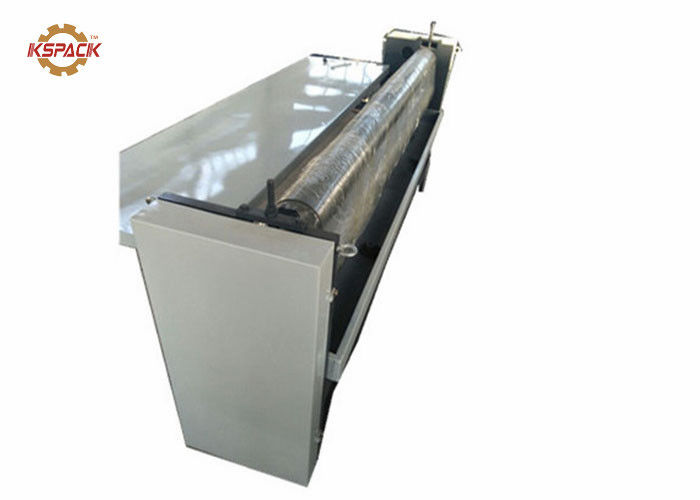

4.Gluing machine pictures



Paper Glue Machine , Manual Gluing Machine For Corrugated Paperboard Pasting

Paper Glue Machine , Manual Gluing Machine For Corrugated Paperboard Pasting
