Adsorb Type E Flute Cardboard Single Facer Machine / Corrugated Carton Machine

Adsorb Type E Flute Cardboard Single Facer Machine / Corrugated Carton Machine

  • High Light

    single facer corrugated machine ce

    ,

    E Flute single facer corrugated machine

    ,

    1600mm single facer corrugated machine

  • Key Word
    Single Facer
  • Advantage
    360 Degree Rotate , More Stable
  • Roller Heated-treatmen
    Hardness HRC56-60
  • Flute Type
    A, C, B, E, For Option
  • Upper-lower Corrugating Roller
    48CrMo High Quality Alloy Steel
  • How To Adjust Glue
    Electric
  • Place of Origin
    Dongguang city , Hebei province , China
  • Brand Name
    KS
  • Certification
    CE,ISO
  • Model Number
    1400mm 1600mm 1800mm 2000mm
  • Minimum Order Quantity
    One Set
  • Price
    Negotiable
  • Packaging Details
    Machine corved with plastic film , packed in 20" container
  • Delivery Time
    40 working days
  • Payment Terms
    L/C, T/T, D/P, D/A, MoneyGram
  • Supply Ability
    30Sets/ Month

Adsorb Type E Flute Cardboard Single Facer Machine / Corrugated Carton Machine



Adsorb Type E Flute Cardboard Single Facer Machine / Corrugated Carton Machine



Adsorb Type E Flute Cardboard Single Facer Machine / Corrugated Carton Machine 0







1.Main Features for Universal joint single facer



1.)Corrugated roller with diameter of 320mm is made from alloy steel 48CrMo and ground accurately with heat treatment technology. It is plated with hard chrome on the surface with surface hardness up to HRC 55-60.

2) Independent pneumatic sizing mechanism

3.)Lubricated with high temperature grease

4) All paper lead shafts, preheating cylinders and forcing shafts are ground and plated with hard chrome on the working surface.

5) The size roller is finely curved reticulate pattern with 24 wires/inch and plated with hard chrome, allowing less amount and more eveness of sizing.

6) The driving part uses independent enclosed oil immersed gear case in the manner of shaft drive.

7) Digital display of glue spread and electric adjustment thereof

8)Flute profile: UV/ACBE

9)Provided with electric size separation

10) Variable frequency control of drive force

11)The outer facing preheating cylinder has a diameter of 415mm, and pressure roller has a diameter of 320mm

12) Upper corrugated roller is mounted on a seat that is easy to dismount.

13) All rollers use straight-way stainless steel drainage device in their drain system, providing independent draining, centralized retting and removed bypass design, which can be free of maintenance for the whole service life, saving stop valve and check valve, simplified installation and maintenance of the return circuit.

14) Steam pressure of 1.1-1.2Mpa, and water is discharged through a siphon

15) Provided with high pressure centrifugal fan, with a silencer





2. Machine working procedure for corrugated paperboard making



This line including paper roll holder and single facer machine and rotary sheet cutter(Rewinder for optional)

Step one : Put craft paper on mill roll stand

Step two : Heat the corrugated layer by heating shaft (Electric/steam/oil/gas heating)

Step three :Make the flat paperboard to corrugated board by corrugated shaft (different diamteters)

Step Four : Gluing top wave by glue shaft and make this two pieces paper to monolayer corrugated board

Step Five : Cross cutting the corrguated paper to the size you want (Horizontal cutting and vertical cutting )

Optional Function : Rewinder the finished corrugated paper to paper roll again (sell corrugated paper roll directly )





3. Description for single face corrugated machine



Single Facer is the main machine for producing the corrugated paperboard.  make single face corrugated board from flat craft paper Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.

Note : This machine can also make 3 layer 5 layer 7 layer when work together with gluing machine and pressing machine





4.SIngle facer corrugated board production line specification



General Parameter

1) Design Speed :100m/min

2)Design Width :2000mm

3)Temperature scope:160-200oc

4)Pressure of compressed air supply :0.4-0.9mpa

5)Pressure of steam :0.8-1.3Mpa

6)Corrugating type :UV or UVV

Diameter of rollers

1) Corrugating roller :280mm

2)Pressure roller :284mm

3)Gluing roller :215mm

4)Pre-heater roller :320mm

Electrical Parameters of motors

1)Main drive motor :7.5KW

2)Air suction motor :7.5KW

3)Glue reducer motor :100W

4)Gluing roller gap adjusting motor :250W

5)Glue pump motor :2.2KW

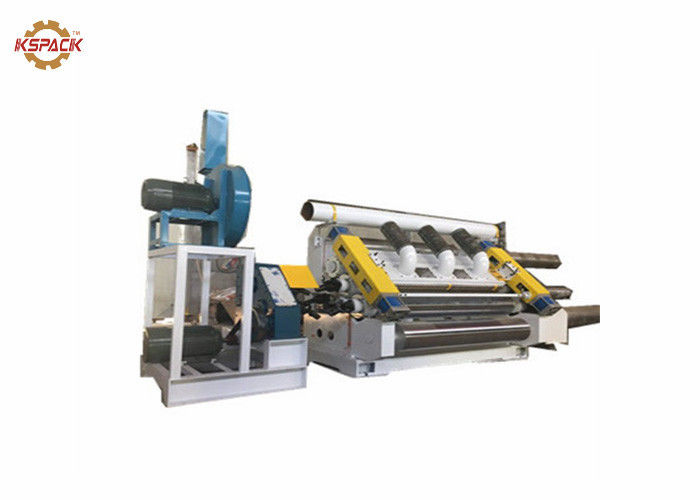

5.Single facer machine pictures (with universal joint )
