|Size Available:||1600-3000 Or Customized||Feeder Type:||Automatic Feeding|
|Mil Soring Width:||80mm||Machine Function:||Slitting And Creasing For Carton Box|
|Slitting Part:||High Quality Tungsten Steel Blade||Blade Specification:||200*122*1.2mm|
corrugated slitter machine,
paper scoring machine
Auto Feeding Corrugated Paper Thin Blade Slitter Scorer Machine
1.Structure and Features
1)Automatic feeder Department
1)Cardboard size adjustment using screw adjustment mechanism, one person operation, easy and quick.
2)Easily adjustable yards paper structure to better adapt to a variety of cardboard length ,feed stable and accurate.
3)Feed belt made of high quality imported rubber seamless belt, friction, long life.
1)Thin knife slitting creasing machine adopts thin knife slitting, after grinding wheel after sharp blade makes cutting the cardboard edge finishing, flattening phenomenon is minimal, improve quality and appearance of cardboard overall quality especially in favor of cardboard printing after feeding, thereby reducing waste, improved quality of the carton.
2)Sharpener with manual and automatic switching of two ways, according to the time or paperboard running speed selection sharpener and stop grinding time. To keep the blade sharp and make cardboard cut smooth and tidy;
3)Adjust the blade from electric, pneumatic automatic locking fixation. Manually adjust the pressure line width. Using separate single-handedly carrying knives structure, according to the number of cardboard cut switch; program the machine wear and tear caused by different cutter size can be adjusted.
Features: The plastic shaft feed, after cutting, and then plastic shaft feed, the last pressure line forming, after the process used when the clear indentation depth of cut paper with high steel knife blade drive belt drive, when replacing blades can be quickly set up for using plastic shaft pull paper, pull the paper toward the same equipment than the one higher than a chip.
2. Different Machine design
|Design One||manaul feeder , manual blade adjustment|
|Design two||manual feeder , electric blade adjustment|
|Design three||auto feeder , manual blade adjustment|
|Design four||Auto feeder , electric blade adjustment|
1.Can set the qty. of paperboard, automatic stop the feeding after finishing.
2.Auto suction feeding, assured the safety of workers and decreased the working load.
3.Suitable to a large scale paperboard machining.
4.electric adjusted blades

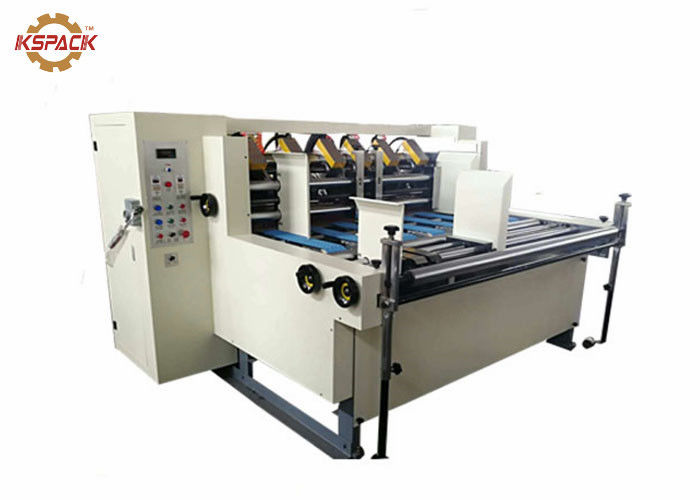

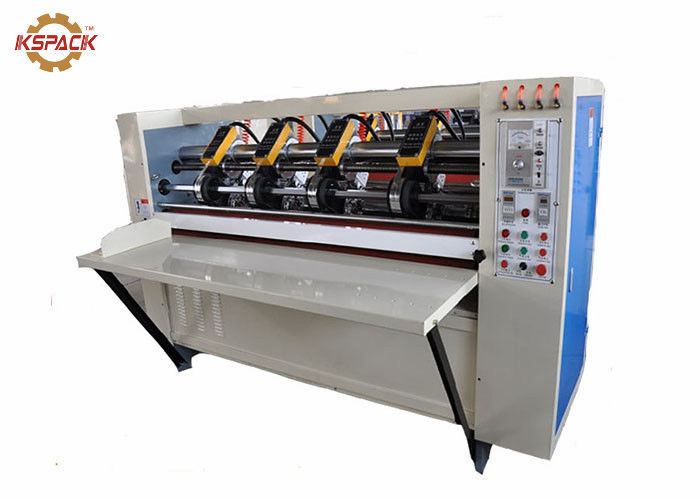

4.Thin Blade Slitter Machine Pictures
